| Place of Origin: | Made In China |
| Brand Name: | NanCon |
| Certification: | CE |
| Model Number: | MF5700 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $159.00~$189.00/pc |
| Packaging Details: | cheap portable ultrasonic gas flowmeter china supplier standard export packing packed according to the clients' requirements |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Measuring Range: | 0-10, 0-25L/Min, 0-250L/min | Power Supply: | Battery Or 5-12VDC Adapter |
|---|---|---|---|
| Output Methods: | RS485 Optional | Display: | LCD |
cheap portable ultrasonic gas flowmeter china supplier
Product Description
MF5700 series mass flow meters feature cost effective ultra low power operating on 4 AA batteries. The portable design has excellent exchangeable mechanical adaptors, easy data accessible and user programmable capabilities. The internal data storage can also help for purpose flow application

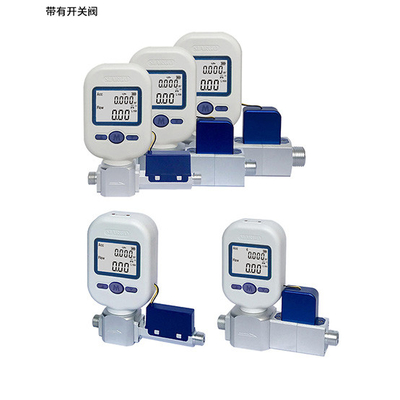

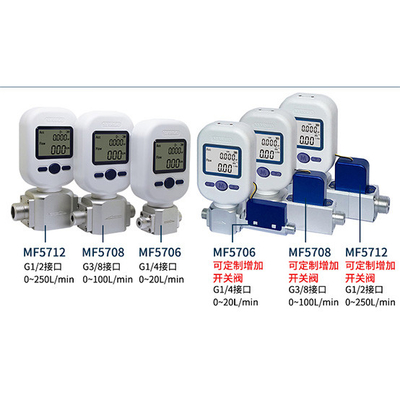

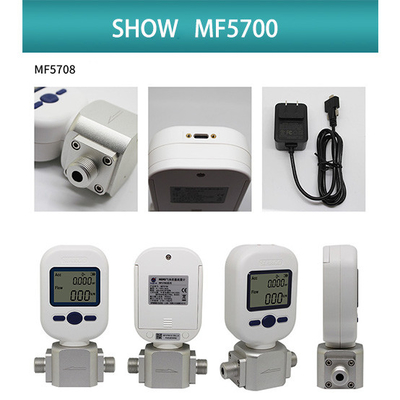

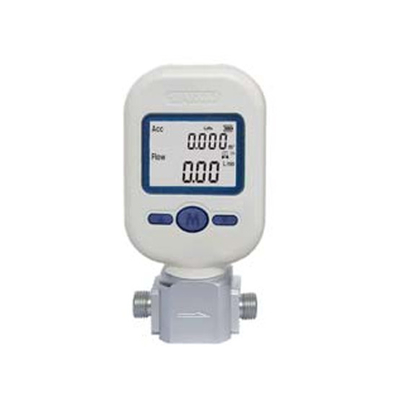

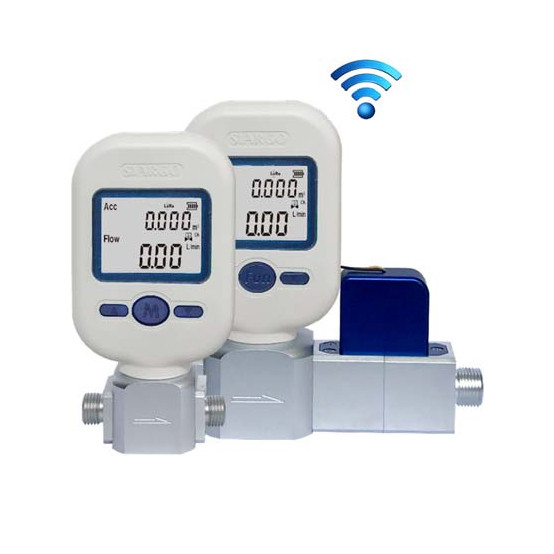

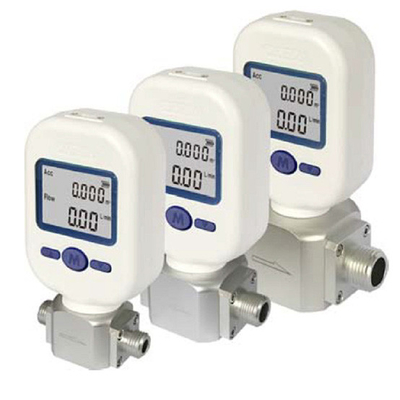

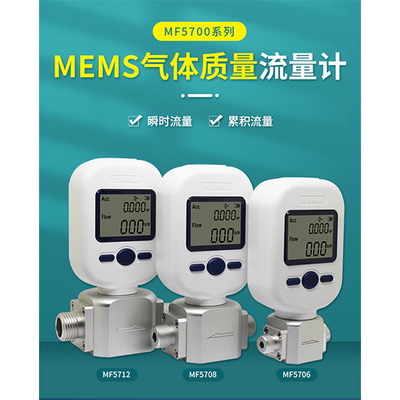

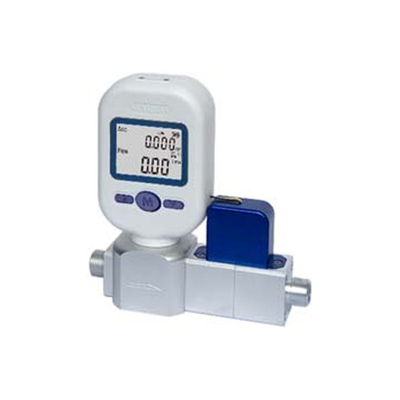

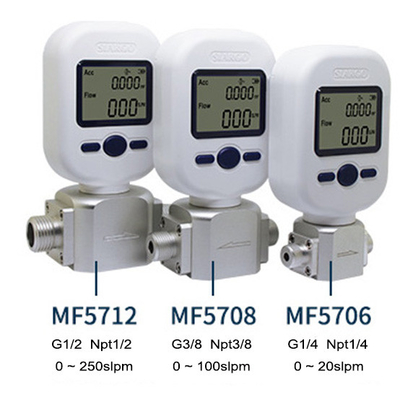

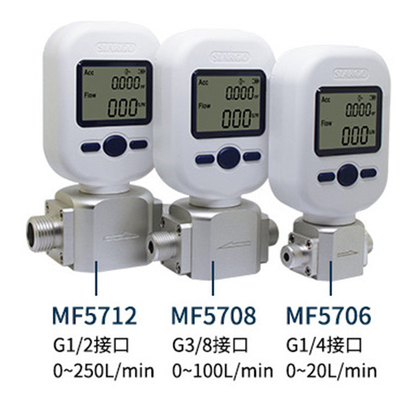

Detailed Images
Specification
| Parameters | MF5706 | MF5712 | Units |
| Measuring range | 0-10, 0-25L/Min | 0-200L/min | |
| Power supply | Battery or 5-12VDC adapter | battery or 5-12VDC adapter | |
| Output method | RS485 optional | RS485 optional | |
| Display | LCD | LCD | |
| Display unit | L/Min M3 | L/Min M3 | |
| Display resolution | 0.01L/min | 0.1L/min | |
| Accuracy | 2% | 2% | |
| Functions of keyboard | Password set, back-to-zero, Alert set | Password set, back-to-zero, Alert set | |
| pressure of working | 0.8Mpa | 0.8Mpa | |
| Connection | 1/4" NPT | 1/2" NPT | |
| Working temperature | -10 to + 55 | -10 to + 55 | Deg.C |
| Weight Net | 350g Copper | 350g Al. | |
| Protection grade | IP40 | IP40 |
Features
- Ultra low power by batteries or optional external AC adaptor
- Potable design with rotatable meter head and easy exchangeable mechanical adaptors
- Customizable flow range with over 30:1 turn-down
- Rs485 Modbus protocol ready for networking
- User programmable range alarm for safety and other monitoring/control functionality
- Internal data storage for additional data safety
- Hygienic and oxygen safe copper body for various fluids
