| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | AC-150E |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $2635~$2895/pc |
| Packaging Details: | High Quality Portable Dry Block Temperature Calibrator Standard export carton packing or can customized |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Product Name: | Portable Dry Block Temperature Calibrator | Model No.: | AC-150E |
|---|---|---|---|
| Temperature Range: | -40℃ ~ 150℃ | Display Resolution: | 0.001℃ |
| Accuracy: | ±0.1℃ | Temperature Stability: | ≤±0.05℃/15mins |
| Horizontal Temperature Field: | ≤±0.1℃ (using A Special Soaking Block For Temperature Field Test) | Vertical Temperature Field: | The Deviation Within 40mm From The Bottom Of The Soaking Block Hole Is ≤0.5℃ |
| Insertion Depth: | 150mm (can Be Customized) | Aperture Of Soaking Block: | Standard 4 Holes: (Ø4, Ø6, Ø8, Ø10) Mm Can Be Customized |
| Outer Diameter Of Soaking Block: | Ø30mm | Maximum Power: | 500W |
| Power Supply: | 220VAC/50Hz | Dimensions: | (340×180×380)mm |
| Weight: | 8.5KGS | Configuration: | 1 Main Equipment, 1 Soaking Block, 1 Power Cord, 1 Certificate And 1 Manual. |
Portable Dry Block Temperature Calibrator
Product Description
portable dry body temperature calibrator is widely used in industrial and mining enterprises, scientific research institutions, colleges and universities, military industry, measurement and other departments to calibrate temperature components (thermocouples, platinum resistance, thermometers), temperature transmitters (sensors), Temperature switch and temperature.
Portable dry body temperature calibrator (-40～150) ℃ is widely used in industrial and mining enterprises, scientific research institutions, colleges and universities, military industry, measurement and other departments, the main calibration temperature components (thermocouple, platinum resistance, thermometer), temperature Transmitters (sensors), temperature switches and temperature instruments.
It adopts high-brightness large-screen display with backlight, simple operation, firm structure, small and light, compact and economical and practical. It can be used in instrument workshops, measurement rooms, and calibration laboratories. It is an ideal calibration instrument for process control instruments.

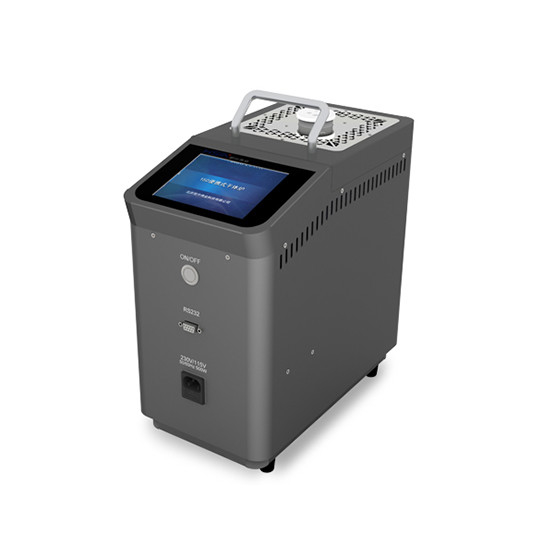

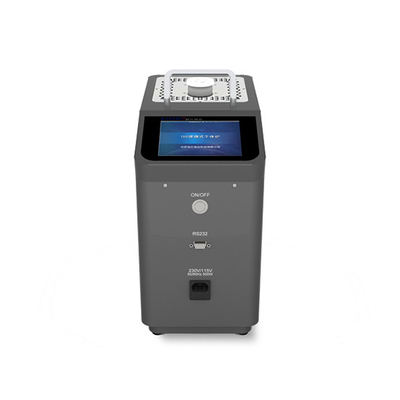

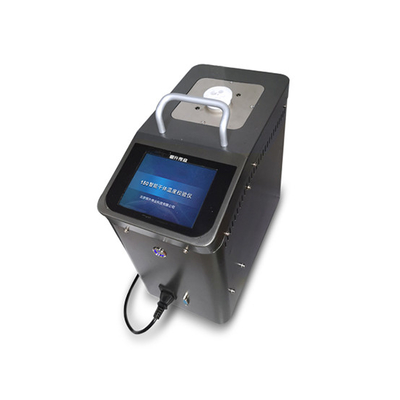

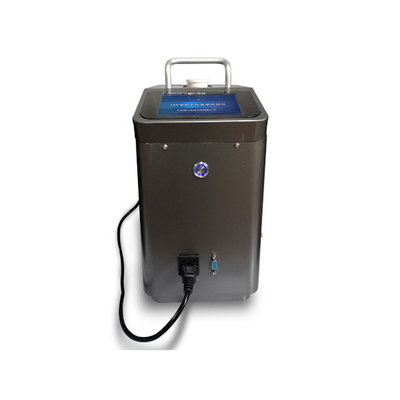

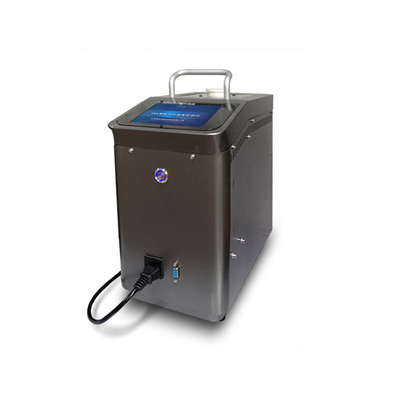

Detailed Images
Specification
| Portable Dry Block Temperature Calibrator | |
| Model No. | AH-100T |
| Temperature Range | -40℃ ~ 100℃ |
| Display Resolution | 0.001℃ |
| Accuracy (Temp. Deviation) | ±0.1℃ |
| Temperature Stability | ≤±0.05℃/15mins |
| Horizontal Temperature Field | ≤±0.1℃ (using a special soaking block for temperature field test) |
| Vertical Temperature Field | The deviation within 40mm from the bottom of the soaking block hole is ≤0.5℃ |
| Insertion Depth | 150mm (can be customized) |
| Aperture of Soaking Block | Standard 4 holes: (Ø4, Ø6, Ø8, Ø10) mm can be customized |
| Outer Diameter of Soaking Block | Ø30mm |
| Maximum Power | 500W |
| Power Supply | 220VAC/50Hz |
| Dimensions | (340×180×380)mm |
| Weight | 8.5KGS |
| Configuration | 1 main equipment, 1 soaking block, 1 power cord, 1 certificate and 1 manual. |
Features
◆Stable temperature control, stable temperature control in technical aspects such as horizontal temperature field and vertical temperature field.
◆Digital temperature control, rapid heating, rapid cooling, convenient setting, good temperature control stability.
◆Large screen display window, intuitive and eye-catching.
◆The soaking block can be replaced.
◆It can be used instead of freezing point bottle.
◆Small size, light weight, easy to carry, no pollution.
◆It can be used in conjunction with the software of our company or other companies to complete automatic verification.
◆The furnace body has built-in load short circuit, load open circuit, sensor protection and a series of protection functions.

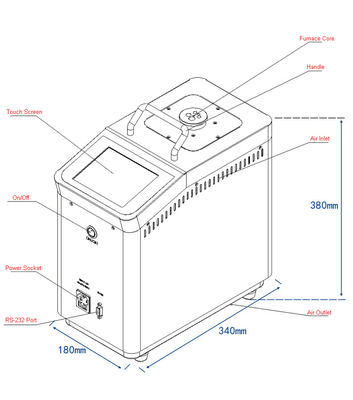

Dimension
Soaking Size
| Aperture of Soaking Block | |
| 4 Holes As Standard | Other Custom Apertures |
| ∮4mm ∮6mm ∮8mm ∮10mm | 1.∮4mm ∮6mm ∮6mm |
|
|
2.∮4mm ∮8mm ∮8mm |
| 3.∮4mm ∮6mm ∮10mm | |
| 4.∮4mm ∮8mm ∮8mm | |
| 5.∮6mm ∮6mm ∮8mm | |
| 6.∮8mm ∮10mm ∮10mm | |
| 7.∮10mm ∮12mm | |
| Remark: 1. The above dimensions are conventional opening dimensions. If you have a special size to place an order, please communicate with our company in advance to confirm. 2. The opening depth needs to be confirmed in advance |
|
Application
Industrial and mining enterprises, scientific research institutions, colleges and universities, military industry, measurement and other departments, mainly calibrate temperature components (thermocouples, platinum resistance, thermometers), temperature transmitters (sensors), temperature switches and temperature instruments.
Related Products
FAQ
Q:How long will you reply me?
A:We will contact you as soon as possible but within 12 hours
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.
Q:How do you control your quality ?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).
Q: What certificates do you have ?
A:ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.
Q:Could I visit your factory?
A:Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q:can you provide OEM & Customized service?
A:Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
