| Place of Origin: | Made In China |
| Brand Name: | NanCon |
| Certification: | CE |
| Model Number: | ACH-1000 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD195~USD595/pc |
| Packaging Details: | Export Standard Packing |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000pcs/Month |
| Product Name: | Automatic Pressure Instrument Calibration System | Model No.: | ACH-1000 |
|---|---|---|---|
| Pressure Range: | (2~100)MPa (1~100)MPa | Pressure Stablity: | 0.05%F.S |
| Accuracy: | 0.005/0.01 0.02/0.05 | Connection: | M20x1.5 |
| Medium: | Di(2-ethylhexyl) Sebacate | Dimension: | ( 680×480×310 )mm |
| Weight: | 26KGS | Warranty: | 18Months |

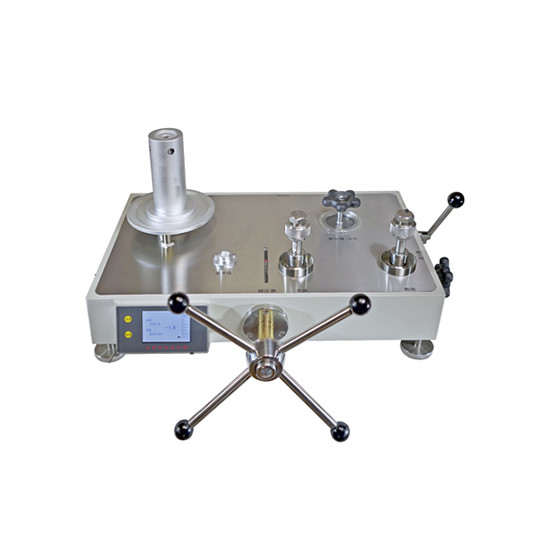

Gas Piston Dead Weight Tester Pressure Gauge
Product Description
The ACH supplies all kinds of piston pressure gauges, vacuum piston pressure gauges, grade 0.05 and 0.02 piston pressure gauges, first-class and second-class piston pressure gauges, etc., which are directly operated by the manufacturer, and the quality is guaranteed.
Detailed Images
Specification
①ACH-1000A piston pressure gauge
| Gas Piston Dead Weight Tester Pressure Gauge | |||||
| Model No. | ACH-1000A | Measuring Range |
(2~100)MPa (1~100)Mpa |
Piston core material | |
| Accuracy | 0.01/0.005 | Dimension | 680*480*310mm | piston rod | Piston cylinder |
| Total Weight | 26KGS | Table body material | Aluminum alloy sheet | Tungsten Carbide | Tungsten Carbide |
| Working Medium |
Di(2-ethylhexyl) Sebacate |
||||
②ACH-1000B piston pressure gauge
| Gas Piston Dead Weight Tester Pressure Gauge | |||||
| Model No. | ACH-1000B | Measuring Range |
(2~100)MPa (1~100)Mpa |
Piston core material | |
| Accuracy | 0.02/0.05 | Dimension | 680*480*310mm | piston rod | Piston cylinder |
| Total Weight | 26KGS | Table body material | Aluminum alloy sheet | Tungsten Carbide | Tungsten Carbide |
| Working Medium |
Di(2-ethylhexyl) Sebacate |
||||
Weight Specification
①ACH-1000A piston pressure gauge
| Weight Parameter | ||||
| Spec. (MPa) | Qty (block) | Dimensions Diameter Φ(mm) | Mass (Kg/block) | Material |
| 10 | 9 | 280 | 5 | Stainless Steel |
| 4 | 1 | 200 | 2 | Stainless Steel |
| 2 | 2 | 160 | 1 | Stainless Steel |
| 1 | 1 | 135 | 0.5 | Stainless Steel |
| -- | -- | -- | -- | Stainless Steel |
| -- | -- | -- | -- | Stainless Steel |
| -- | -- | -- | -- | Stainless Steel |
| -- | -- | -- | -- | Stainless Steel |
②ACH-1000B piston pressure gauge
| Weight Parameter | ||||
| Spec. (MPa) | Qty (block) | Dimensions Diameter Φ(mm) | Mass (Kg/block) | Material |
| 10 | 9 | 225 | 2.5 | Stainless Steel |
| 4 | 1 | 160 | 1 | Stainless Steel |
| 2 | 2 | 135 | 0.5 | Stainless Steel |
| 1 | 1 | 108 | 0.25 | Stainless Steel |
| -- | -- | -- | -- | Stainless Steel |
| -- | -- | -- | -- | Stainless Steel |
| -- | -- | -- | -- | Stainless Steel |
| -- | -- | -- | -- | Stainless Steel |
Features
1. Patented piston pressure system components, novel structure, anti-collision, tool-free disassembly, easy to clean the piston system, replace the sealing ring, convenient, fast and safe.
2. The small area and small weight piston has been successfully developed and tested, and has been put into production. It is more convenient and easy to use and greatly reduces the labor force. Customers can choose according to the situation or telephone consultation.
3. The piston displacement data collection adopts two infrared distance measuring sensors, and the data is converted and displayed on the LCD screen through the self-designed circuit system, which makes the displacement observation more convenient and accurate.
4. The piston display system adopts a 3.5-inch touch color display screen, which displays the displacement of the piston rod, the site temperature and humidity.
5. Equipped with two quick interfaces (M20×1.5) of the meter seat, with a stop valve (optional by the customer), which can be used for sealing test.
6. The table seat globe valve (optional by the customer) and the pressure regulator are maintenance-free and easy to operate. Reasonable handle design, personalized design according to the hand posture.
7. The main body is made of 12mm thick aluminum alloy plate, which is firm and stable. The oil storage capacity of the oil cup is 400ml, which can be customized according to customer needs, which is convenient for calibrating large-scale sensors. The cup is equipped with an oil filter device. The device ensures the cleanliness of the oil entering the piston system, avoids the blocking and damage caused by the dirty oil entering the piston system, and even causes the piston rod to be stuck and broken.
8. The oil circuit system has the function of sewage discharge, and the maintenance and cleaning process is more concise and convenient.
9. The piston display part is equipped with a touch switch key and a displacement calibration button. Quick instructions for the use of displacement calibration can be displayed on the screen by operation, which is convenient for customers to use.
Use Enviroment
Ambient temperature: (20±1)℃
Relative humidity: constant temperature room below 85%
Power supply voltage: AC 220V
Frequency: 50HZ
There should be no mechanical vibration affecting the metering performance during use
Application
❶ Industrial and mining enterprises
❷ Scientific research institutions
❸ Colleges and universities
❹ Military industry
❺ Measurement and other departments
❻ Mainly calibrate temperature components (thermocouples, platinum resistance, thermometers)
❼ Temperature transmitters (sensors), temperature switches and temperature instruments.
