| Place of Origin: | Made In China |
| Brand Name: | NanCon |
| Certification: | CE |
| Model Number: | MF5712 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $139.00~$169.00/pc |
| Packaging Details: | High Accuracy Digital Mass Flow Meters, Low Cost China Mass 4-20ma Output Flow Meter Standard export carton packing or can customized |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Product Name: | 4-20ma Output Flow Meter | Accuracy: | 1.5% |
|---|---|---|---|
| Range: | 0-10, 0-25L/Min, 0-200L/min | Repeatability: | ±0.075% |
| Display: | LCD | Power Supply: | Battery Or 5-12VDC Adapter |
| Screw Thread: | R1/4,BSPT1/4, 4mm,6mm,8mm,12mmquick Coupling |
High Accuracy Digital Mass Flow Meter, Low Cost China Mass 4-20ma Output Flow Meter
Product Description
MF5700 Series Mass Flow Meters feature cost effective ultra low power operating on 4 AA batteries. The portable design has excellent exchangeable mechanical adapters, easy data accessible and user programmable capabilities. The internal data storage can also help for many industrial on-site applications. The meters can be customized for various general purpose flow applications.

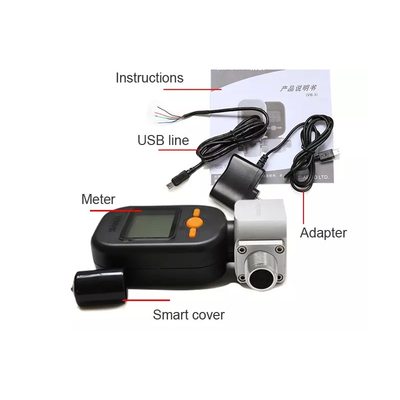

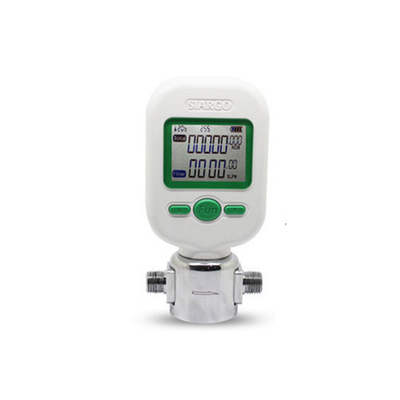

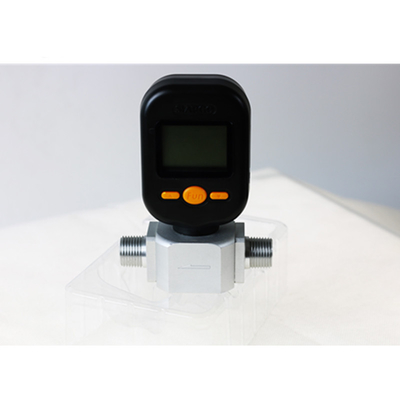

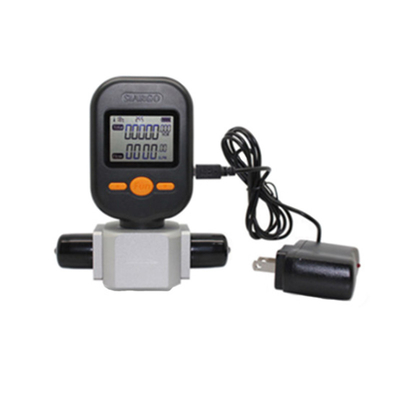

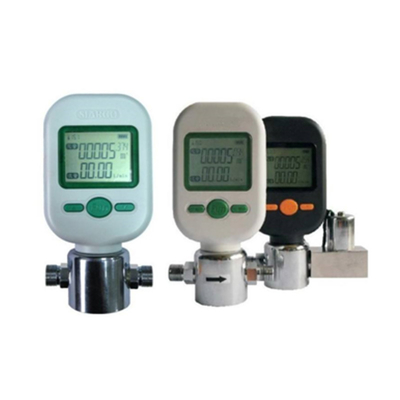

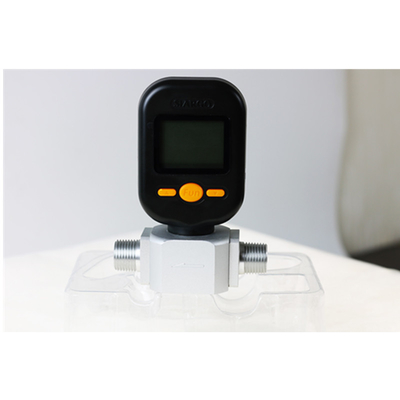

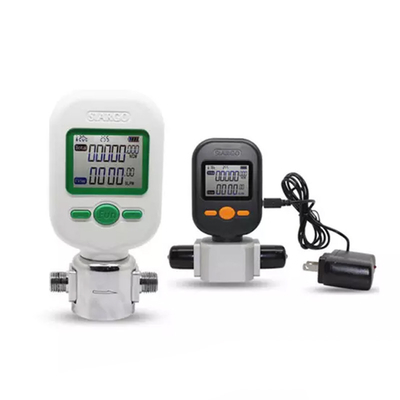

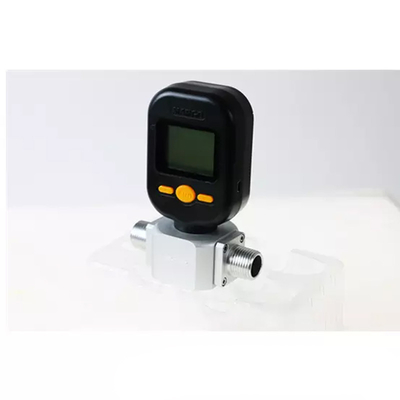

Detailed Images
Specification
| Parameter | MF5706 | MF5712 | Unit |
| Flow Range | 0~10, 25 | 0~200 | SLPM |
| Turn-down ratio | 30:1 | ||
| Accuracy | ±(2.0+0.5FS) | % | |
| Repeat ability | 0.5 | % | |
| Response Time | ≤2 | sec | |
| Power Supply | 4 AA Batteries (LR6) / 6~15 Vdc (with 220 Vac Adaptor) | ||
| Output | RS 485 (Optional) | ||
| Display | LCD | ||
| Display Units | Instant flow rate: SLPM; Flow accumulation: NCM | ||
| Instant Flow Rate Resolution | 0.01 | SLPM | |
| Flow Accumulation Resolution | 0.001 | NCM | |
| Continuous Working Time | >60 days (with batteries) | ||
| Max. Pressure | ≤0.8 | Mpa | |
| Working Temperature | -10 ~ +55 | ℃ | |
| Storage Temperature | -20 ~ +65 | ℃ | |
| Humidity | <95% RH (No Icing or Condensation) | ||
| Keyboard | 3 keys | ||
| User Interface | mini USB | ||
| Calibration | Air @ 20C, 101.325 Kpa | ||
| DN | 6 | 12 | mm |
| Mechanical Connection | NPT 1/4 | NPT 1/2 | |
| Weight | 350 | g | |
Note: the above parameters are applicable at 20℃ and 101.325kPa.
Features
! Ultra low power by batteries or optional external AC adaptor
! Potable design with rotatable meter head and easy exchangeable mechanical adaptors
! Customizable flow range with over 30:1 turn-down
! RS485 Modbus protocol ready for networking
! User programmable range alarm for safety and other monitoring/control functionality
! Internal data storage for additional data safety
! Hygienic and oxygen safe copper body for various fluids
Application
Mechanics Food Tobacco Chemistry Beverage Glass Agriculture Research Pharmacetics Instrumentation
