| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | W1000T |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $1275~$1450/pc |
| Packaging Details: | High Quality Portable Dry Block Temperature Calibrator Standard export carton packing or can customized |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Product Name: | High Performance Touch-screen Portable Dry Block Temperature Calibrator | Usage: | Industrial |
|---|---|---|---|
| Theory: | Temperature Controller | Accuracy: | ± 0.2 C Grade, 0.2% |
| Temperature Range: | 300 ~ 1000C | Heat: | Semiconductor Refrigeration And Electro-thermal |
| Stability: | ±0.04C Or ±0.1C | Warranty: | 12 Months |
| Well Depth: | 150mm Or 200mm | Wellhead Size: | 40mm |
High Performance Touch-screen portable Dry Block Temperature Calibrator
Description
High Performance Touch-screen portable Dry Block Temperature Calibrator Easy to use and convenient, Easy and efficient temperature calibration., be extensive applied in machinery, chemical industry, food, medicine and other industries.
At present, there is a disadvantage of slow heating and slow temperature in the field of dry type calibration furnace in China, so it will take a long time for users to calibrate. The latest generation of dry well furnace is designed with the most advanced heating principle in the world, which has the characteristics of fast heating, fast temperature and fast cooling, which greatly improves the existing calibration efficiency.
The temperature control circuit is measured with high precision sensor, which ensures the precision is higher than that of other domestic manufacturers, and the technology meets the international standard. The world's first touch operation is simple and fast.

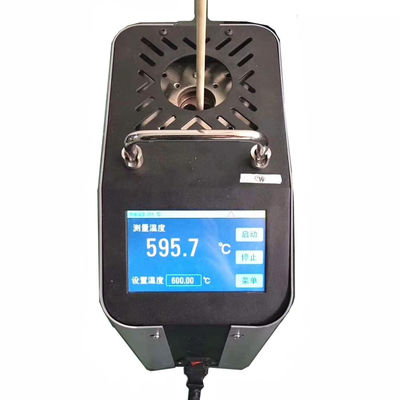

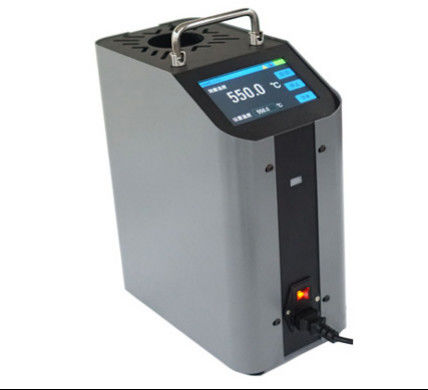

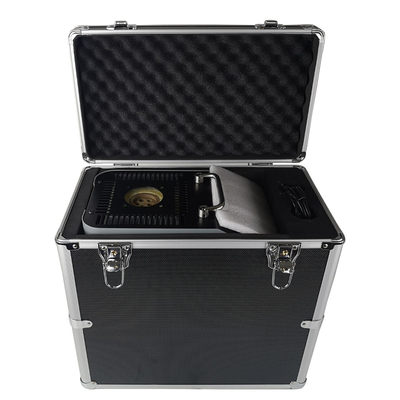

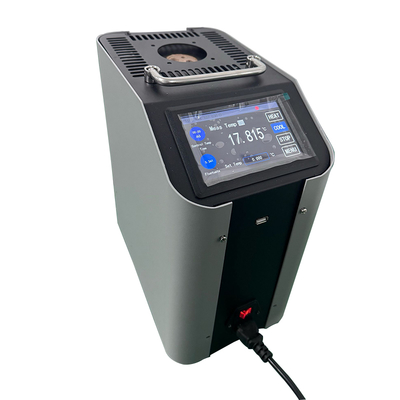

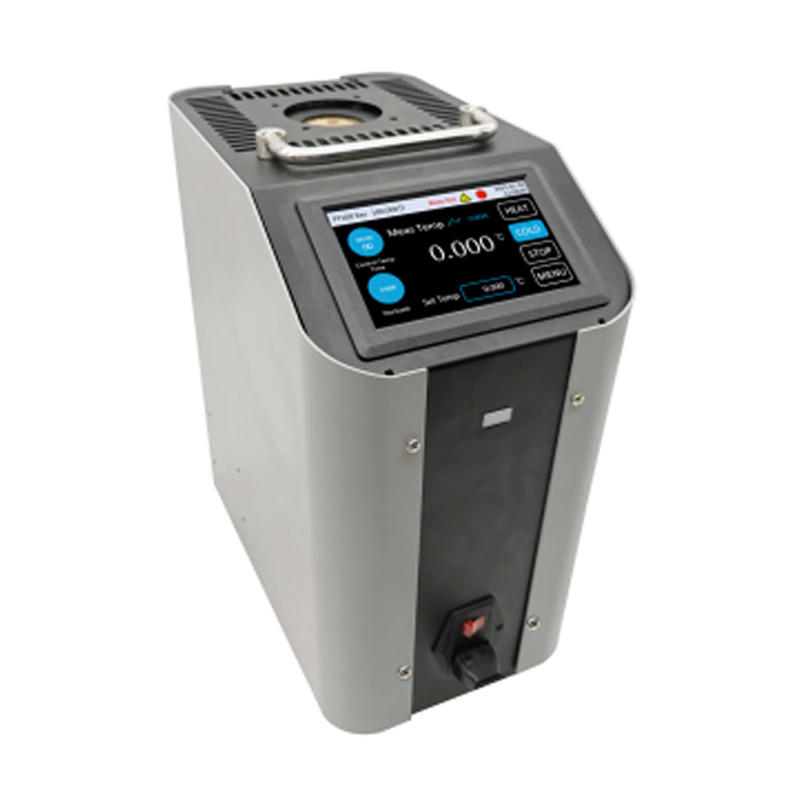

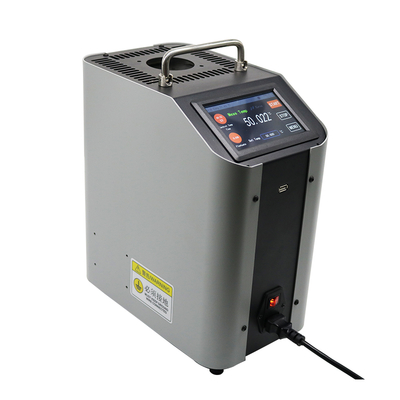

Detailed Images
Specification High Performance Touch-screen portable Dry Block Temperature Calibrator
| High Performance Touch-screen Dry Block Temperature Calibrator | |||
| Model No | W150T | W650T | W1200T |
| Temperature Range | -20 ~ 150℃ | 50 ~ 600℃ | 300 ~ 1000℃ |
| Heating Rate |
30~100: 20min 30~150: 40min |
30~300:7 min 30~600:25min |
30~1200:75 min |
| Accuracy | ≤±0.2℃ |
400℃ ≤±0.35℃ 400-600℃≤±0.5℃ |
≤±1.2℃ |
| Diameter of Soaking Pit | 30mm | 30mm | 40mm |
| Vertical Temp. Field | 50mm axial uniformity (bottom up 50mm) | ||
| Horizontal Temp. Field | ≤±0.05℃ | ≤±0.05℃ | ≤±0.2℃ |
| Insert Depth | 165mm | 150mm | 135mm |
| Temperature Unit | ℃ or ℉ | ||
| MIX Power | 500W | 800W | 3000W |
| Control Accuracy | 0.1% or 0.2% | ||
| Power Supply | 220v± 10%; 45-60hz; or 110v± 10% | ||
| Display Resolution | ±0.1℃ or ±0.01℃ | ||
| Size | 310×190×340mm | 250×150×310mm | 310×190×340mm |
| Weight | 15KGS | 11KGS | 12KGS |
| Market USD Price | |||
Notes:
* Language: Chinese, English
* Communication interface: USB Device (optional)
* The ambient temperature range: 0~50℃(32-122℉)
* Ambient humidity range: 0%-90% (non condensing)
Applications
Used in the required temperature range, it is easy to set and accurately produce the required temperature.It has the characteristic of small volume, fast heating, stable temperature control, no pollution, etc.The temperature sensor and instrument can be integrally calibrated, so it is easy to carry, easy to use, easy to fast and reliable temperature calibration. It is widely used in machinery, chemical, food, pharmaceutical and other industries.
Features
·Small volume, light weight, easy to carry;
·Multiple types of inserted into the pipe and can meet different size, the number of sensor test and calibration. And can customize according to the special needs of users;
·Good level of temperature, vertical temperature field;
·Have been inserted into the depth of the same industry leading;
·5.0 -inch TFTLCD touch-screen, 16 bit true color image, simple and intuitive to use;
·Rapid cooling, easy setting, temperature control stability is good;
·Soaking block can quickly replaced;
·With load short circuit, load circuit, sensor protection, and other functions.
