Protection IP65 or 67 Micro Pressures Sensors of Bottom Price
Description IP65 or 67 Micro Pressures Sensors
Ceramic pressure sensor without liquid transmission, the pressure directly on the front surface of the ceramic diaphragm, so that the diaphragm has a small deformation, thick film resistance printed on the back of the ceramic diaphragm, connected into a Wheatstone bridge (closed bridge), due to the piezoresistive effect of the varistor, the bridge is generated with a high linearity proportional to the pressure, and the voltage signal is proportional to the excitation voltage. The voltage signal is converted to a 4~20 mA current signal through the modulation amplifier circuit.

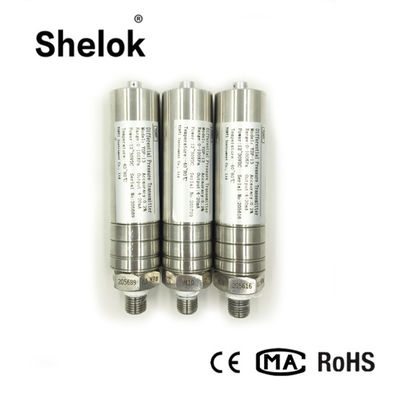

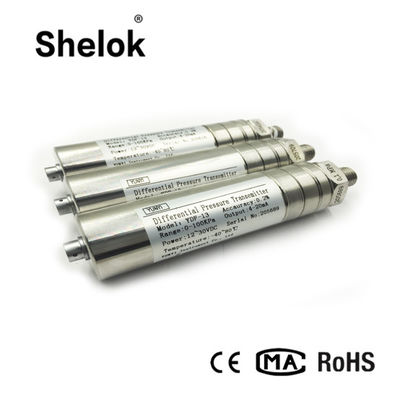

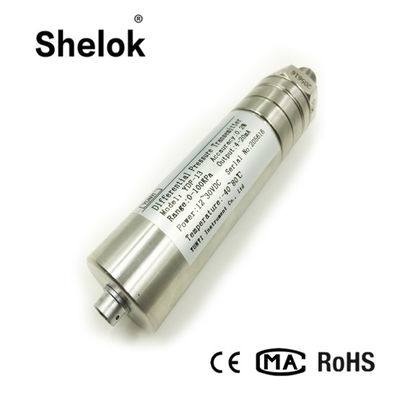

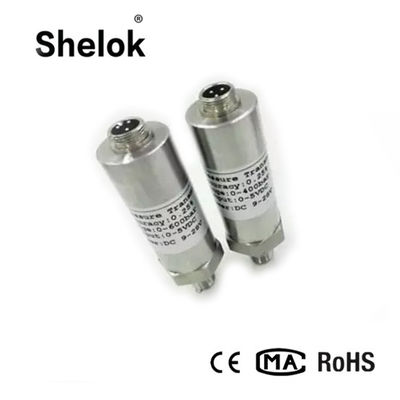

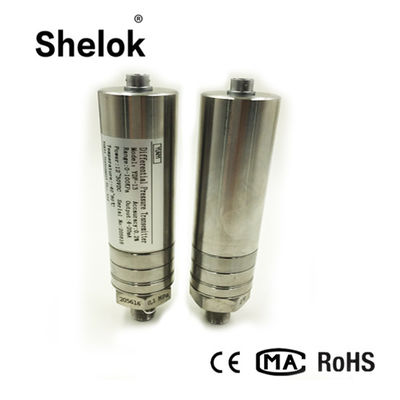

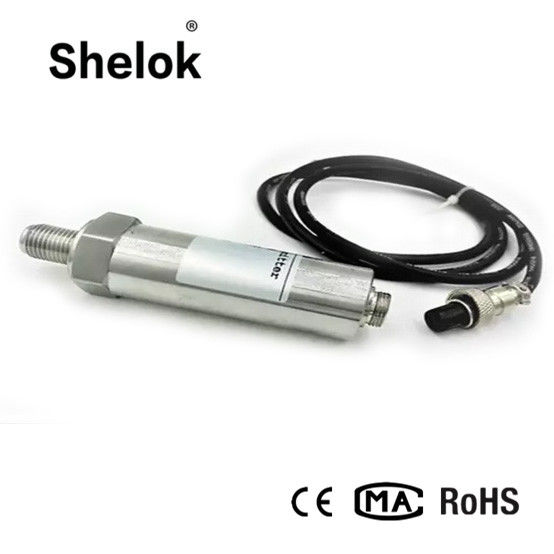

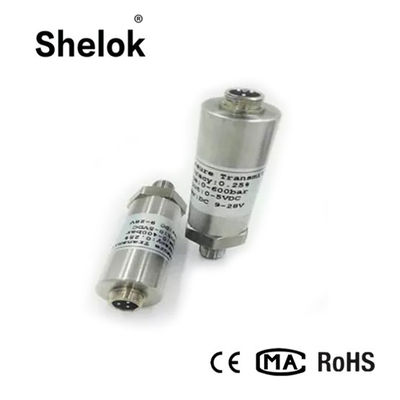

Detailed Images IP65 or 67 Micro Pressures Sensors
Specification
| Protection IP65 or 67 Micro Pressures Sensors of Bottom Price |
| Measure Range | 100KPa~60MPa |
| Accuracy | 0.2, 0.5 (20°C) |
| Output | Current, Voltage, Digital signal optional |
| Material | Ceramic + stainless steel 316 |
| Overload pressure | 2 times the basic overload |
| Long stability | ≤±0.2%FS/Year |
| Seal | Fluorine rubber seal non-internal seal |
| Thread | Optional |
| Sound frequency | 200HZ |
| Housing material | Stainless steel structure |
| System pressure | 1000% FS |
| Temp.compensation Range | 0±70/℃ |
| Temperature | Medium temperature -30 ~ 100 °C Ambient temperature -30 ~ 80 °C |
| Protection | IP65 or IP67 High magnetic compatibility |
| Warming | ±0.08FS/°C (4~20mA output) |
| Pressure type | Absolute or Sealed gauge pressure |
Features
* all stainless steel shell, excellent corrosion performance
* Wide range of pressure measurement
* natural frequency up to 1MHz
* work stable
* anti-interference ability
* imported components, reliable performance. The following are the same as the "
* small size, light weight, type complete, cost-effective
* wide range of measuring media
Related products
FAQ
Q:How long will you reply me?
A:We will contact you as soon as possible but within 12 hours
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.
Q:How do you control your quality ?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).
Q: What certificates do you have ?
A:ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.
Q:Could I visit your factory?
A:Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q:can you provide OEM & Customized service?
A:Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
Company Information
Shelok considers itself not only a manufacture but more conprehensively a provider of industry specific customer-oriented solutions.Our profound understanding of product application and strong technical backgrounds ensure you the best product solution and achieve a greater success.
Xi'an Shelok Instrument Technology co.,ltd is a professional R&D center and manufacture of measuring instruments.And here's a variety of products for you choice: pressure transmitters,temperature transmitters,flow transmitters,weighing instruments and so on.Our products have been made by advanced technology, with high quality, fast delivery period, which have attracted so many domestic and foreign customers.
