| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | MF4003/MF4008 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD120 ~ USD159/pc |
| Packaging Details: | RS485 Output Mass Digital Air, Gas Flow Sensor Standard export carton packing or can customized |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Product Name: | Nitrogen Mass Air Flow Sensor | Accuracy: | 1.0 |
|---|---|---|---|
| Measuring Range: | 0-10, 0-25L/Min, 0-200L/min | Power Supply: | 24vdc |
| Output Signal: | 4-20mA | Medium: | Gas |
| Ambient Temperature: | -30℃~60℃ | Medium Temperature: | -20℃~80℃ |
| Protection Class: | IP65 | Explosion-proof Mark: | ExiaIICT4 |

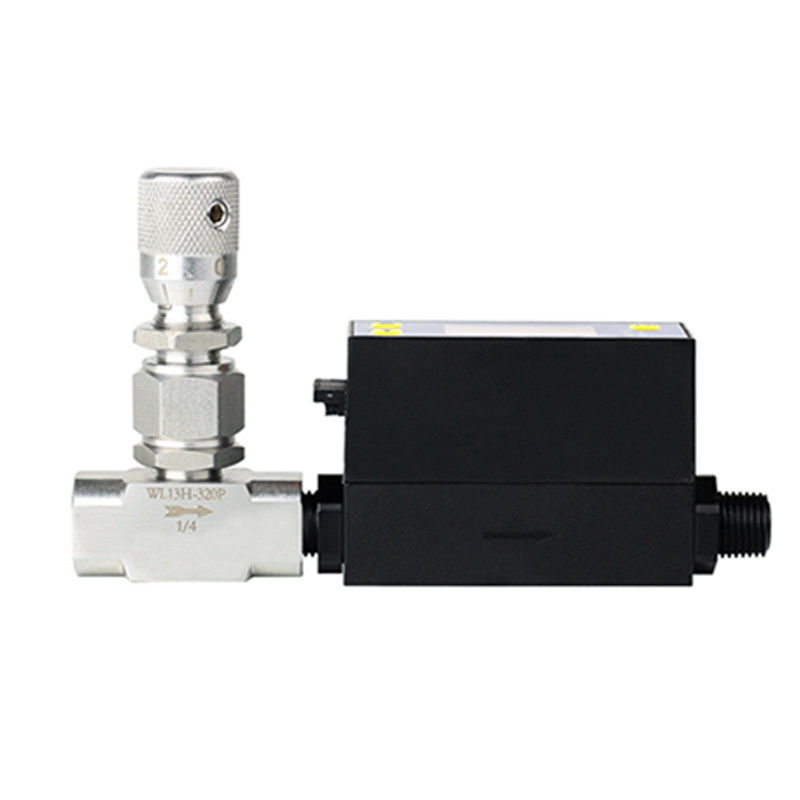

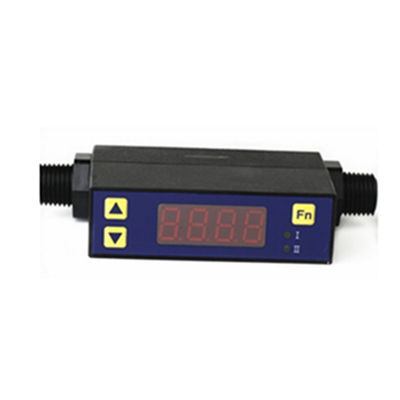

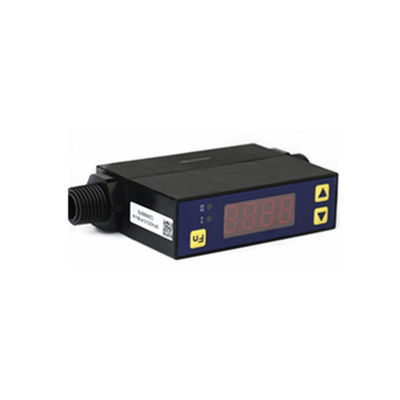

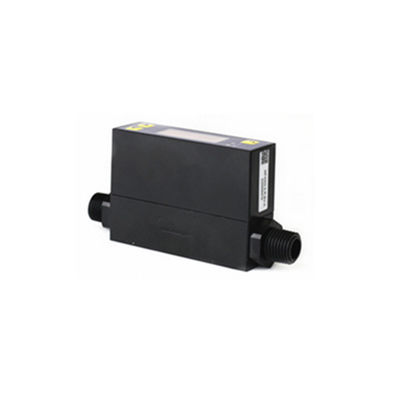

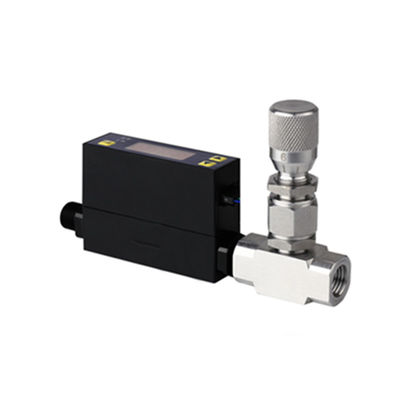

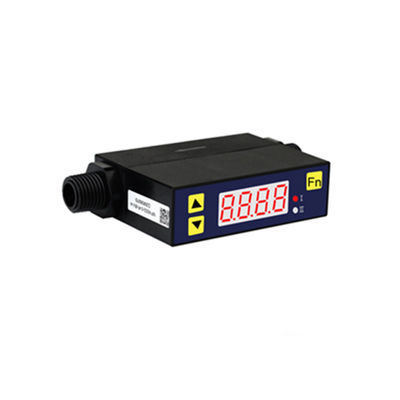

FM4000 Series nitrogen oxygen mass air flow sensor are designed for low velocity gas flow meters in gas pipe diameters ranging from 3mm to 12mm. Thread and a variety of quick interface can be easily achieved mechanical interface conversion, to meet the user a variety of gas pipeline requirements. The product can be used for process control, atmospheric sampling and other industrial applications.The compact design provides user friendly installation for multiple flow channel sensing requirements. Plastic finishing with an easy change of the mechanical adaptors enables applications with different connection thread requirements or one-touch approach. The meters can be used for electronic meters in anesthesia equipments, environmental samplers and many other industrial applications.
The meters can be customized with flow range, gas specific requirements, user interface and others upon requests to the manufacturer.
| 1.Low pressure loss. 2.Output flexible, you can take the initiative to upload data through the communication interface. 3.LED display instantaneous flow and cumulative flow, allowing the scene with the key configuration flow parameters. 4.Can record the maximum and minimum instantaneous flow, with over-range function. 5.Full range of high stability, high precision and excellent repeat-ability. 6.A variety of connections, easy to install and use. 7.Highly sensitive, measuring as low as 8 mm/sec, and as high as 65 m/sec with a single assembly 8.Directly sense mass flow using thermal mass flow principle 9.Proprietary MEMS sensor package design for better reliability 10.Standard 12 ~ 24 Vdc power supply 11.Low pressure loss forreducing energy cost 12.Industrial standard Modbus protocol for easy networking and remote control |
 |
Environmental Monitoring
Aeration cable
Gas generated plasma monitor
Vacuum applications
Preservation of oxygen devices
Anesthesia
Ventilator
Ventilation equipment detection devices
Other industrial applications such as welding
Model selection of nitrogen mass air flow sensor:
Shelok considers itself not only a manufacture but more conprehensively a provider of industry specific customer-oriented solutions.Our profound understanding of product application and strong technical backgrounds ensure you the best product solution and achieve a greater success.
Xi'an Shelok Instrument Technology co.,ltd is a professional R&D center and manufacture of measuring instruments.And here's a variety of products for you choice: pressure transmitters,temperature transmitters,flow transmitters,weighing instruments and so on.Our products have been made by advanced technology, with high quality, fast delivery period, which have attracted so many domestic and foreign customers.
Q:How long will you reply me?
A:We will contact you as soon as possible but within 12 hours.
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.
Q:How do you control your quality ?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).
Q: What certificates do you have ?
A:ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.
Q:Could I visit your factory?
A:Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q:can you provide OEM & Customized service?
A:Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
