| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | SLK-3051 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $150.00~$500.00/pc |
| Packaging Details: | 3051 Gauge Hart Fuel Tank Oil Station differential Pressure transmitter Sensor Standard export package |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Pressure Range: | 0~1kPa,6kPa,40kPa,200kPa... | Overload,Burst Pressure: | 150% F.S. 200% F.S. |
|---|---|---|---|
| Accuracy: | 0.1,0.3,0.5%FS | Stability: | Standard 0.1%/year |
| Temperature Compensation: | -40℃ ~85℃ | Housing Material: | Bronze & Aluminum Alloy |
| Power Supply: | 9-45VDC(16-30VDC) | Output Signal: | 2-wire 4-20mA, HART |
| Electrical Connection: | M20*1.5 Threads(1/4"NPT) | Process Connections: | 1/4-18NPT,54mm Or Selection Guide |
3051 Gauge Hart Fuel Tank Oil Station differential Pressure transmitter Sensor
Description 3051 Gauge Hart Fuel Tank Oil Station differential Pressure transmitter Sensor
3051 Intelligent 4~20mA HART Capacitive Differential industrial pressure transmitter with the advanced micro processing technology and digital communication technology, high precision, high stability,alibrate parameters through computer or panel keys,remote parameter setting, remote control, self diagnosis and other functions,easy to operate with HART protocol.
Product Feature

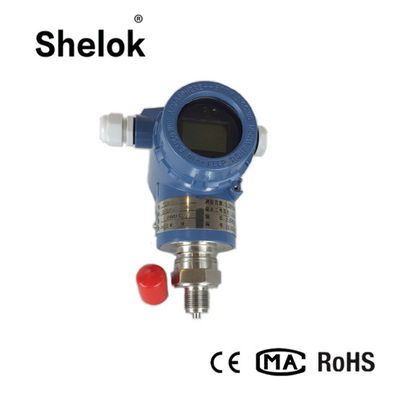

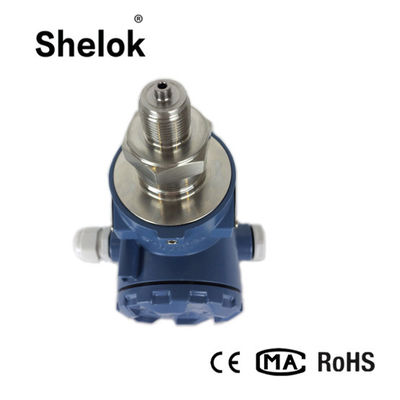

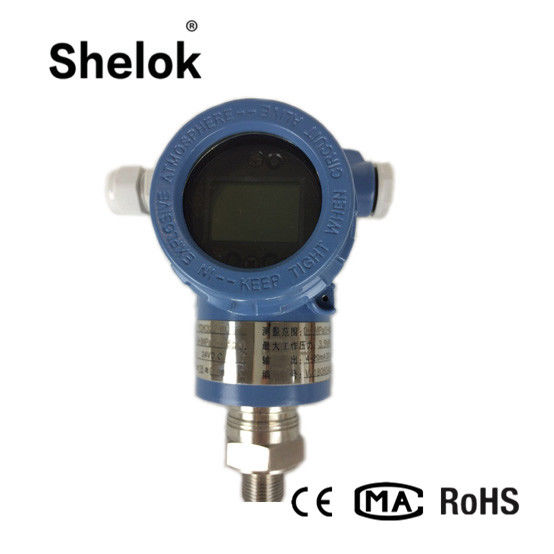

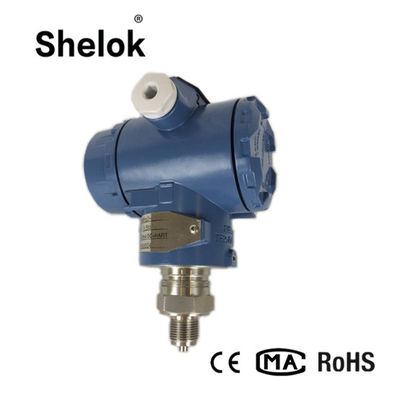

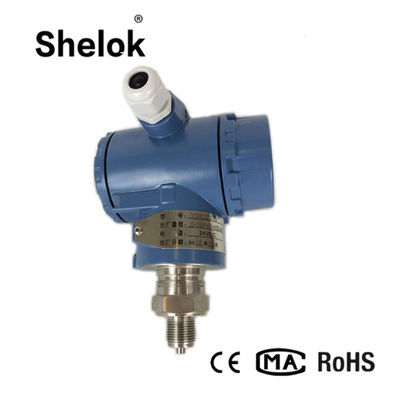

Detailed Images 3051 Gauge Hart Fuel Tank Oil Station differential Pressure transmitter Sensor
Specification 3051 Gauge Hart Fuel Tank Oil Station differential Pressure transmitter Sensor
Measuring range: Differential Pressure:0~1kPa,6kPa,40kPa,200kPa..........2MPa,8MPa
Gauge Pressure:0~40MPA
Absolute Pressure:0~40MPA
Turn down ration: 40:1
Application: Differential pressure,gauge pressure, absolute pressure
Accuracy: ±0.1,0.3,0.5% of span
Process fluid: liquid,gas,vapor
Temperature Drift: Zero Drift:0.5%FS/50℃ Span Drift:0.7%FS/50℃
Stability: ±0.1% / years
Working Temperature: T -40 to 100°C
Ambient Temperature : T -40 to 85°C
Storage Temperature: T -40 to 100°C
Power supply: 9-45VDC
Output: 4-20mA 2 wires Hart Protocol
Max pressure: 40MPa
Respond time: 200ms
Humidity limits: 0 to 100% relative humidity
Turn on time: 2 seconds with minimum damping
Display: LCD,LED
Electrical connections: 1/4”NPT (M20 Conduit threads)
Temperature effect: ±0.18% of span per 200C
Process connections: 1/4-18NPT
Flange : stainless steel 304/316
Diaphragms: stainless steel 316L/Hastelloy B/Hastelloy C/Monel/Tantalum
Wetted O-Rings: Buna N/Viton/PTFE
Bolts&nuts: carbon steel/stainless steel 316
Mounting Bracket: carbon steel/stainless steel 304/316
Name/Tag plate: stainless steel 304/316
Converter housing: low copper cast aluminum alloy with polyurethane
Fill fluid: silicone/fluorine oil
Casing protection: IP67
Explosion proof: Exd II B T4 Exia II C T6
Process Connection: Flange,direct,side mounted,diaphragm,insert type
About 3.5kg
Related products 3051 Gauge Hart Fuel Tank Oil Station differential Pressure transmitter Sensor
Q:How long will you reply me?
A:We will contact you as soon as possible but within 12 hours
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.
Q:How do you control your quality ?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).
Q: What certificates do you have ?
A:ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.
Q:Could I visit your factory?
A:Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q:can you provide OEM & Customized service?
A:Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
Company Information
Shelok Introduction
Shelok considers itself not only a manufacture but more conprehensively a provider of industry specific customer-oriented solutions.Our profound understanding of product application and strong technical backgrounds ensure you the best product solution and achieve a greater success.
Xi'an Shelok Instrument Technology co.,ltd is a professional R&D center and manufacture of measuring instruments.And here's a variety of products for you choice: pressure transmitters,temperature transmitters,flow transmitters,weighing instruments and so on.Our products have been made by advanced technology, with high quality, fast delivery period, which have attracted so many domestic and foreign customers.
Packing & Shipping
