| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | SLK-YD35 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $17.50~$29.50/pc |
| Packaging Details: | Wholesale water pump pressure sensor/ transmitter/transducer package box:14*6*4cm packed according to the clients' requirements |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Measuring Range: | 0....1bar 0....60bar | Output: | 0-5V, 0.5-4.5V,1-5V;4-20mA, |
|---|---|---|---|
| Accuracy: | 0.5%FS;1%FS;1.5%FS | Thread: | G1/4, G1/2 1/4NPT, 1/2NPT And Others |
| Application Temp.: | -40 ℃ ~ 125 ℃ | Housing Protection: | IP65 |
| Customd: | Customed | Product Name: | Wholesale Water Pump Pressure Sensor/ Transmitter/transducer |
Oil Pressure Sensor Diesel Sensor
Description of Wholesale water pump pressure sensor/ transmitter/transducer:
SL120 series pressure transmitter Integration with a piezoresistive ceramic pressure sensor, signal processing circuit imported from Germany dedicated chip, signal conditioning circuit reliability, redundancy and thermal design to ensure product reliability and consistency. Cycle fatigue pressures up to 10 million times.
Technical parameters of Wholesale water pump pressure sensor/ transmitter/transducer:
| Range: | 0….1bar 0….60bar |
| Accuracy: | 0.5%FS;1%FS;1.5%FS |
| Nonlinear: | 0.02%FS |
| Reliability: | 0.05%FS |
| Output signal: | 0-5V, 0.5-4.5V,1-5V;4-20mA, |
| Supply voltage: | 5VDC ;24(12-36V)DC |
| Operating temperature : | -40℃~125℃ |
| Compensated Temperature: | -10℃~70℃ |
| Overload pressure: | 150%FS |
| Dielectric material: | 316SS |
| Electrical connection: | 3 pin Packard connector |
| Pressure connection: | 1/4NPT, 1/8-27NPT, 7/16-20UNF custom |

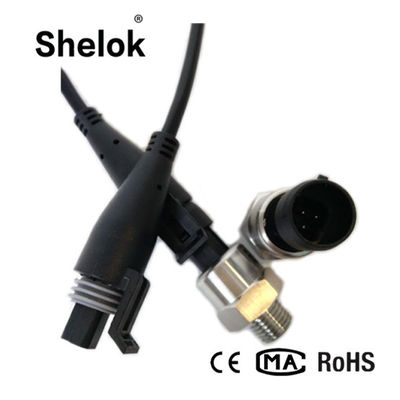

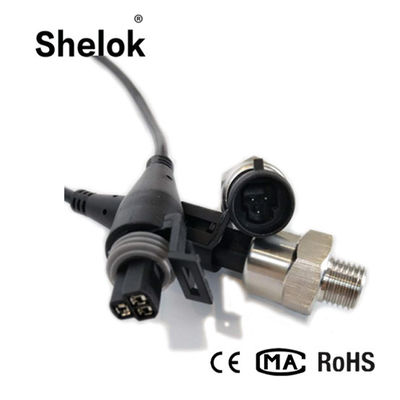

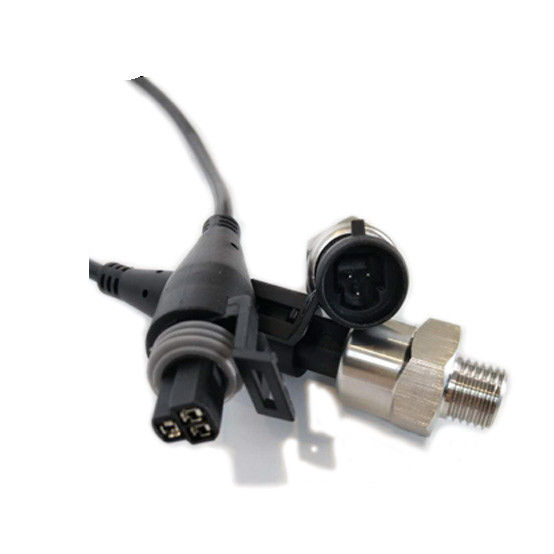

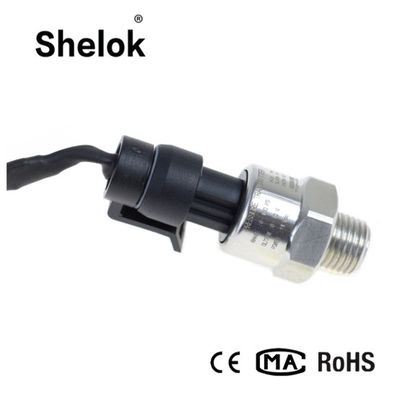

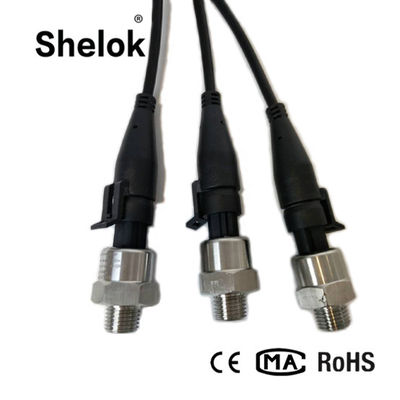

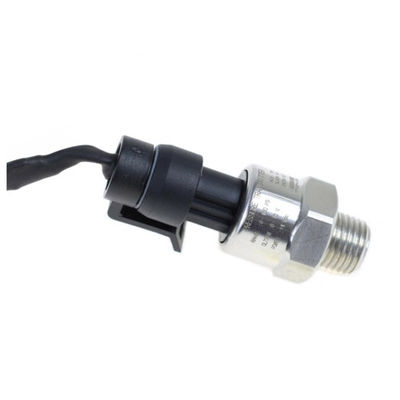

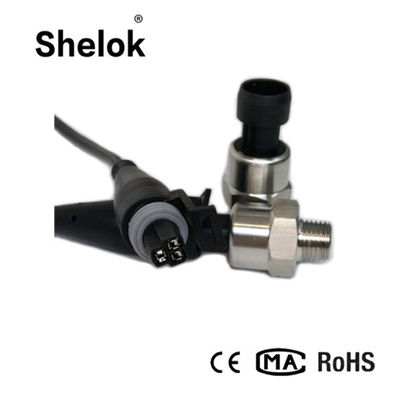

Detailed Images
Features of Wholesale water pump pressure sensor/ transmitter/transducer:
using integrated piezoresistive ceramic pressure sensor
signal processing circuit ASIC imported from Germany
signal conditioning circuit reliability redundant design and thermal design
cycle fatigue pressures up to 10 million times
Application of Wholesale water pump pressure sensor/ transmitter/transducer:
Automotive Oil Pressure
Car brake pressure
Motorized off-road equipment and industrial machinery
Company Information:
Standard export carton packing.
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
Q:How long will you reply me?
A:We will contact you as soon as possible but within 12 hours
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.
Q:How do you control your quality ?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).
Q: What certificates do you have ?
A:ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.
Q:Could I visit your factory?
A:Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q:can you provide OEM & Customized service?
A:Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
