| Place of Origin: | Made In China |
| Brand Name: | NanCon |
| Certification: | CE |
| Model Number: | SLK-311 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $30.00~50.00/pc |
| Packaging Details: | 4 Pins Aviation Connector 4-20mA Pressure Transducer Standard export package or according to clients' requirements |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Measurement Range: | 0--100Mpa | Accuracy: | 0.2%FS, ±0.5%FS |
|---|---|---|---|
| Output Signal: | 4-20mA (2 Wire), 0-10V, 0-5V, 1-5V, 0-10V | Supply Power: | 10-36VDC (Standard 24VDC) |
| Electrical Connection: | Air Plug Connector | MOQ: | 1 Piece |
| Warranty: | 2 Years |
Low price for 4 pins aviation connector 4-20mA pressure transducer
Description 4 Pins Aviation Connector 4-20mA Pressure Transducer

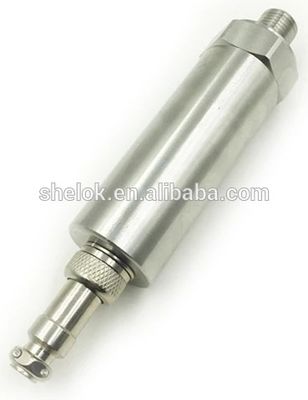

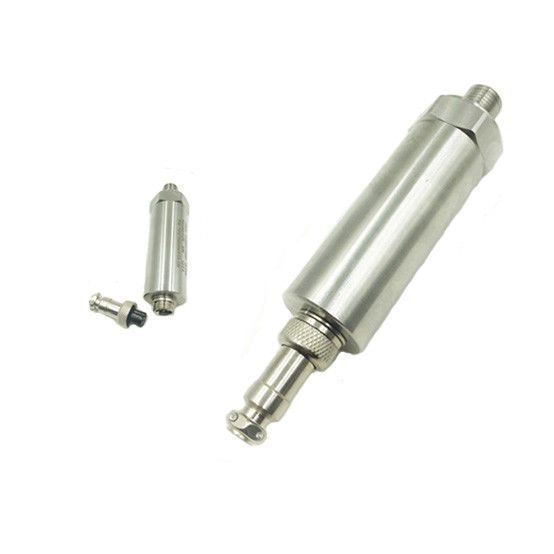

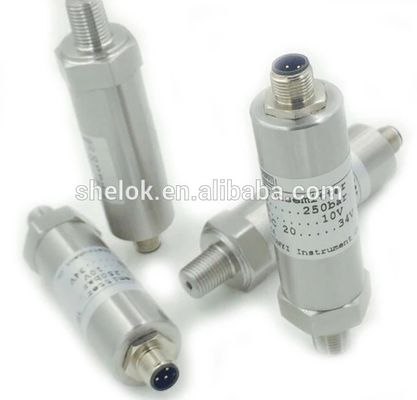

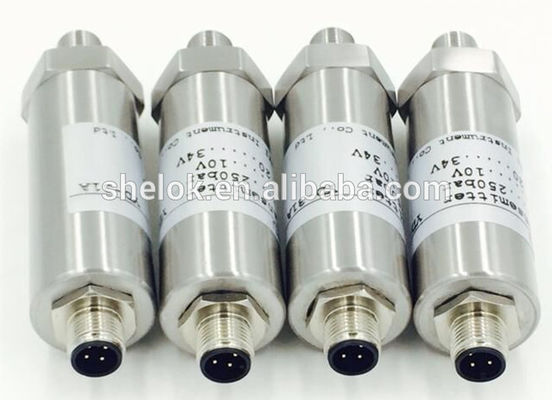

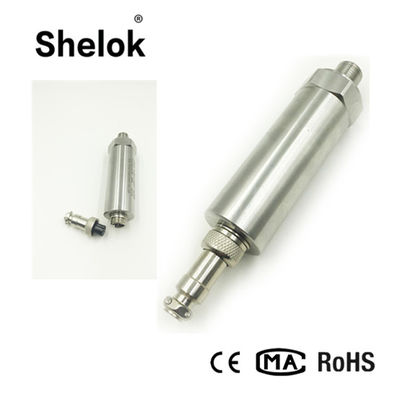

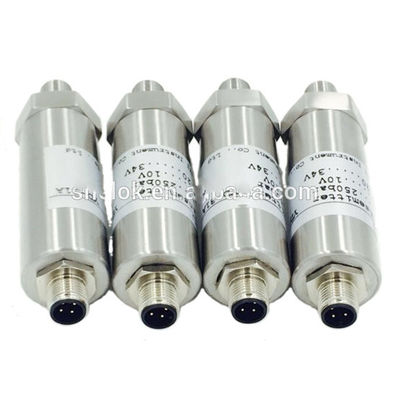

Detailed Images 4 Pins Aviation Connector 4-20mA Pressure Transducer
Specification 4 Pins Aviation Connector 4-20mA Pressure Transducer
| Low price for 4 pins aviation connector 4-20mA pressure transducer | |
| Measurement Range | 0~100Mpa |
| Allowed Overload | 2 Times The Full Range Pressure |
| Working Temperature | -20℃ ~ +80℃ |
| Temperature Compensation | -10℃ ~ +70℃ |
| Storage Temperature | -40℃ ~ +80℃ |
| Accuracy (Include nonlinearity, repeatability, hysteresis) | 0.2%FS(Typical), ±0.5%FS(Max) |
| Stability error | 0.2%FS(Typical), ±0.5%FS(Max) |
| Output signal | 4-20mA (2 wire), 0-10V, 0-5V, 1-5V, 0-10V |
| Supply power | 10-36V DC (Standard 24V DC) |
| Material | 316L stainless steel wetted materials |
| Shell | 304 |
| Protection Grade | IP65 |
| Electrical connection | Air plug connector |
Related products
FAQ
Q:How long will you reply me?
A:We will contact you as soon as possible but within 12 hours
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.
Q:How do you control your quality ?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).
Q: What certificates do you have ?
A:ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.
Q:Could I visit your factory?
A:Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q:can you provide OEM & Customized service?
A:Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
Company Information
Shelok considers itself not only a manufacture but more conprehensively a provider of industry specific customer-oriented solutions.Our profound understanding of product application and strong technical backgrounds ensure you the best product solution and achieve a greater success.
Xi'an Shelok Instrument Technology co.,ltd is a professional R&D center and manufacture of measuring instruments.And here's a variety of products for you choice: pressure transmitters,temperature transmitters,flow transmitters,weighing instruments and so on.Our products have been made by advanced technology, with high quality, fast delivery period, which have attracted so many domestic and foreign customers.
