| Place of Origin: | Made In China |
| Brand Name: | NanCon |
| Certification: | CE |
| Model Number: | MF-5219 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $315.00~$369.00/pc |
| Packaging Details: | Mass Flow Meters Products, Gas Mass Flow Meters Standard export carton packing or can customized |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Product Name: | Mass Flow Meters Products, Gas Flow Meters MF5200 Series | DN: | 19 |
|---|---|---|---|
| Max. Flow Rate: | 600, 800 L/min | Min. Flow Rate: | 0.8 L/min |
| Turn-down Ratio: | 30:1 | Accuracy: | ±(2.0+0.5 FS)% |
| Repeat Ability: | ± 1.0% | Output Range: | 15~700Kpa |
| Max. Pressure: | 1.0Mpa | Calibration: | Air @ 20C, 101.325kPa |
Mass Flow Meters Products, Gas Mass Flow Meters
Description Mass Flow Meters Products, Gas Mass Flow Meters
MF5200 Series Oxygen Flow Meters are specially designed for oxygen metering system in a hospital. These meters are operated with the standard industrial user interfaces (RS485), and user defined alarm functions for better monitoring or control over the network. The off-the-shelf products (MF5212 and MF5219) are for gas flow measurement of 0~300 SLPM and 0~800 SLPM, respectively.

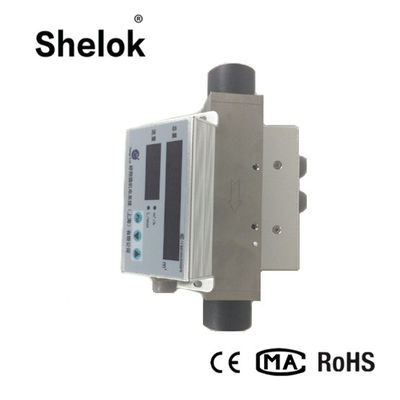

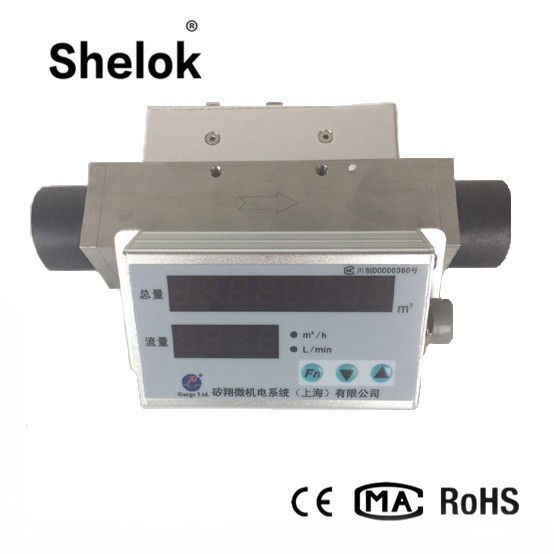

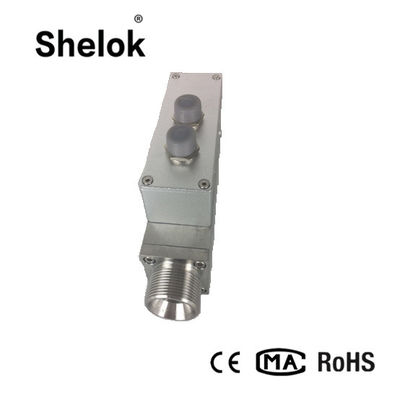

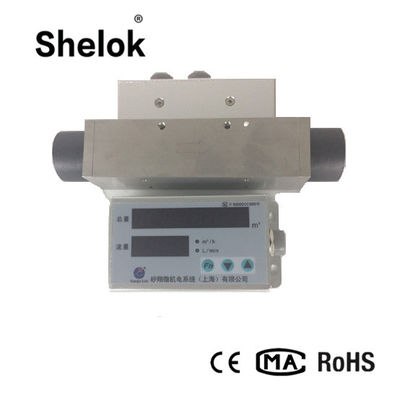

Detailed Images Mass Flow Meters Products, Gas Mass Flow Meters
Specification Mass Flow Meters Products, Gas Mass Flow Meters
| Mass Flow Meters Products, Gas Mass Flow Meters | |||
| Parameter | MF5212 | MF5219 | Unit |
| DN | 12 | 19 | mm |
| Flow | |||
| Max. Flow Rate | 200, 300 | 600, 800 | L/min |
| Min. Flow Rate | 0.3 | 0.8 | L/min |
| Turn-down Ratio | 30:1 | ||
| Accuracy | ±(2.0+0.5 FS) | % | |
| Repeat Ability | ± 1.0 | % | |
| Pressure | |||
| Output Range | 15~700 | kPa | |
| Repeat Ability | ±1.0 | % | |
| Max. Pressure | 1.0 | Mpa | |
| Operating Temperature | -10 ~ +55 | ℃ | |
| Humidity | <95% RH (No Icing or Condensation) | ||
| Power Supply | 8~24V DC, 100 mA (with AC adapter) | ||
| Output | RS485 (Modbus) | ||
| Mechanical Connection | DN 12 tri-clamp, with M22*1.5 Connector DN 19 tri-clamp, with M33*1.5 Connector | ||
| Calibration | Air @ 20C, 101.325kPa | ||
| Protection | IP40 | ||
Note: The above parameters are applicable at 20℃ and 101.325kPa.
Mechanical Dimensions of the MF5219
Product Selection MF5219
Features Mass Flow Meters Products, Gas Mass Flow Meters
! Integrated MEMS mass flow sensors and pressure sensors

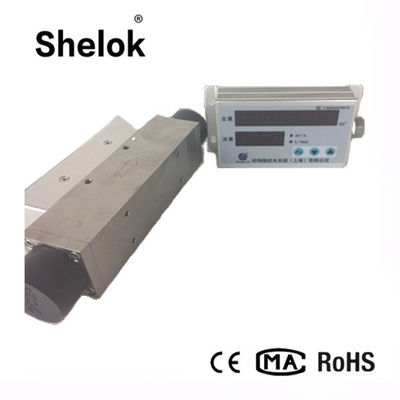

! Detachable display that can be placed away from the flow channel via a specially designed cable
! LED display for both instant flow rate and flow accumulation
! Standard RS485 for remote data comunication
! Hygienic stainless steel body ready for oxygen metering
! Easy installation

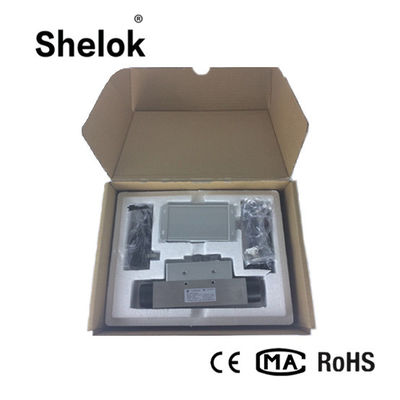

Aaccessories For MF5219
The MF 5219
1. AC/DC adapter (110/220V AC to 12V DC).
2. User interface cable has a standard length of 1.0m. Please contact Siargo for special requests.
3. LCD cable has a standard length of 1.0m. Please contac Siargo for special requests.
