| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | SLK-YD34 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $88.00~$110.00/pc |
| Packaging Details: | Sanitary Hydraulic Oil Pressure Sensors For Industrial Field Standard export package or according to clients' requirements |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Range: | 0-35/50/100/200/400/500/600Kpa 0-1/1.6/2.5/4/6/10Mpa | Accuracy: | 0.25% FS; 0.5% FS; 1% FS |
|---|---|---|---|
| Output Signal: | 4-20mA (two-wire), 0-5V; 0-10V (three-wire) | Supply Voltage: | 24 (12 ~ 36) VDC |
| Pressure Connection: | G1 / 2, M12 * 1.5,or Clamp Type | MOQ: | 1 Piece |
| Warranty: | 2 Year |

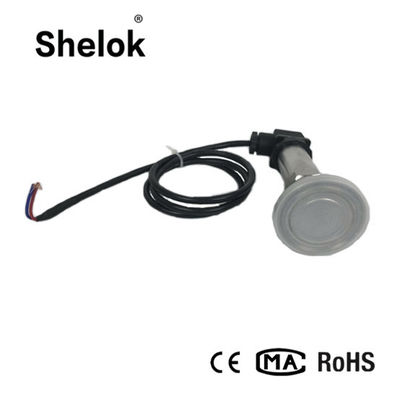

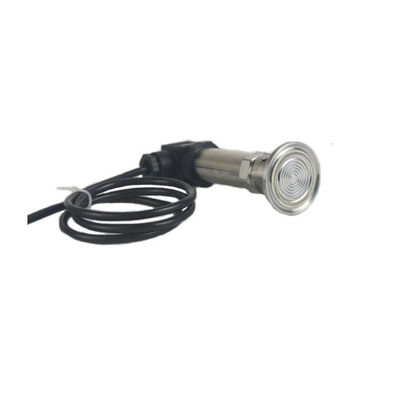

Sanitary Hydraulic Oil Pressure Sensors For Industrial Field
Description
Sanitary Hydraulic Oil Pressure Sensors For Industrial Field for industrial field designed for food and pharmaceutical industry, is suitable for CIP/SIP cleaning and sterilization.Smart compact design, the
welded process diaphragm medium parts is made of high quality stainless steel 316L, filling fluid with hygiene standard in line with FDA certification, variety of international standard process connections are available.

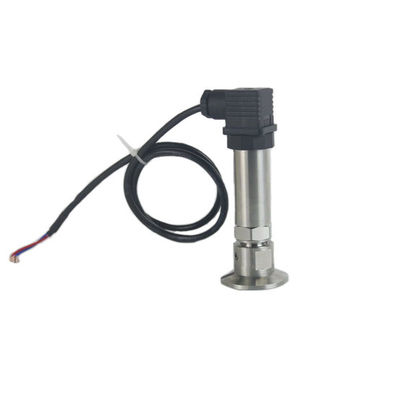

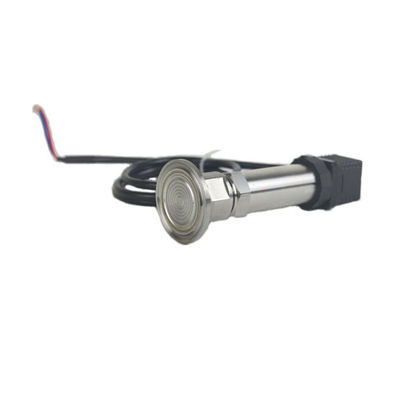

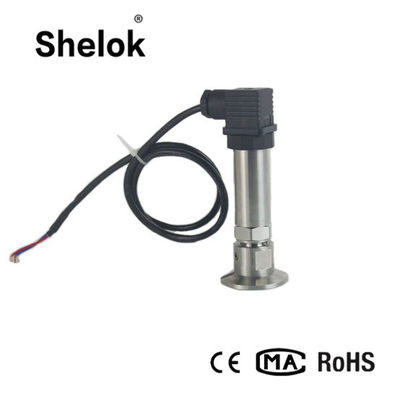

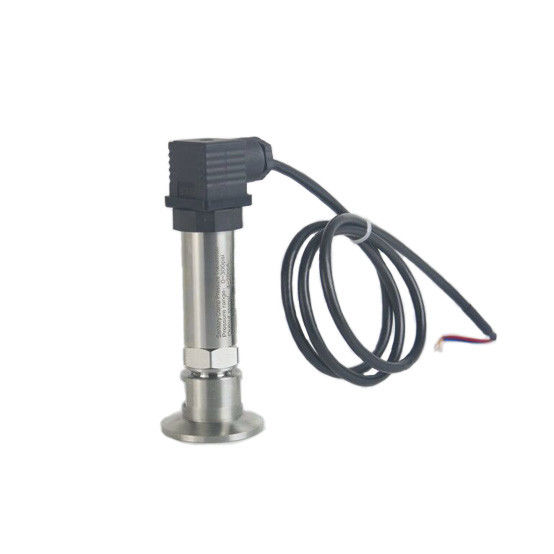

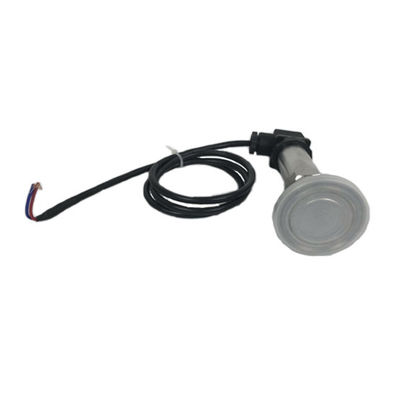

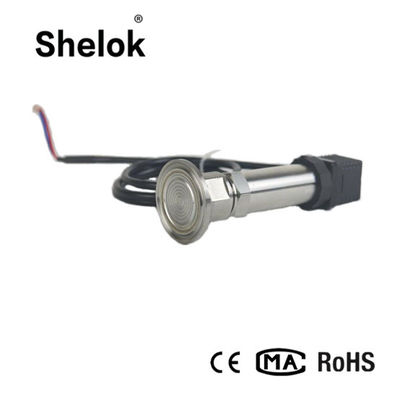

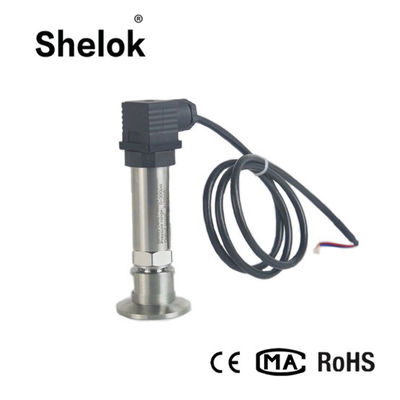

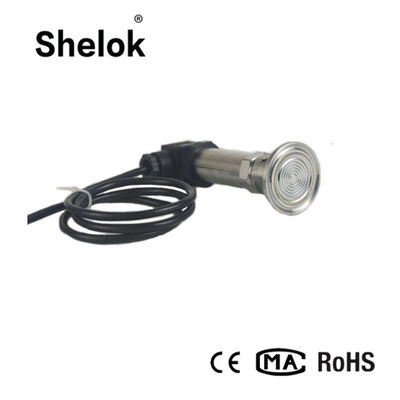

Detailed Images
Specification
| Sanitary Hydraulic Oil Pressure Sensors For Industrial Field | |
| Pressure Range |
0-35/50/100/200/400/500/600Kpa 0-1/1.6/2.5/4/6/10Mpa |
| Accuracy | 0.25% FS; 0.5% FS; 1% FS |
| Output Signal | 4-20mA (two-wire), 0-5V; 0-10V (three-wire) |
| Supply Voltage | 24 (12 ~ 36)V DC |
| Pressure Connection | G1 / 2, M12 * 1.5,or clamp type |
| Electrical Connection | DIN, directly lead , aviation plug-ins |
| Hysteresis & non-linear & Repeatability | ≤ ± 0.5% FS |
| Comprehensive Error (including temperature drift) | ≤ ± 1% FS (-20 ~ 80 ℃) |
| Long-term stability | ≤ ± 0.25% FS 1 Year |
| Medium Temperature Range | -40 ~ 85℃(thread type)-40 ~ 150 ℃(clamp type) |
| Storage Temperature Range | -40 ~ 85 ℃ |
Features
! Improved optimized circuit and mounting structure, improved vibration resistance and stability
! No cavity measuring diaphragm chamber;
! Many industry-standard signal output options;
! Wiring for the connector or directly lead;
! May request for additional full-scale zero adjustment function;
! Various pressure port option;
