Ceramic Micro Liquid High Temperature Pressure Sensors
Description Ceramic Micro Liquid High Temperature Pressure Sensors
SL120 series pressure transmitter Integration with a piezoresistive ceramic pressure sensor, signal processing circuit imported from Germany dedicated chip, signal conditioning circuit reliability, redundancy and thermal design to ensure product reliability and consistency. Cycle fatigue pressures up to 10 million times.

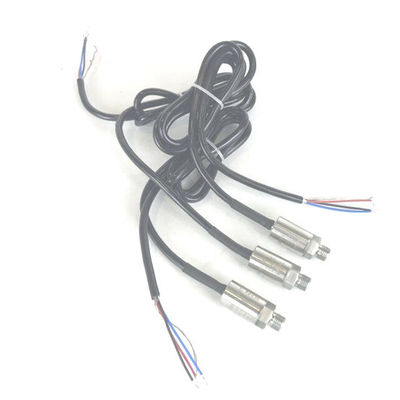

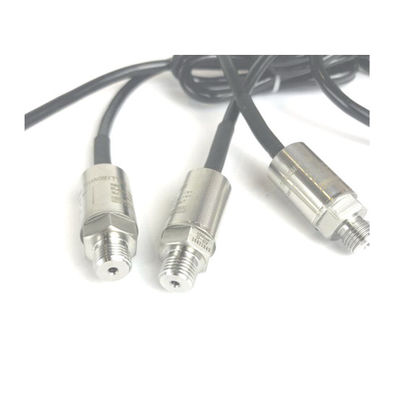

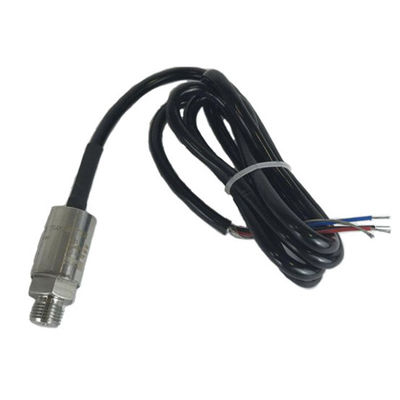

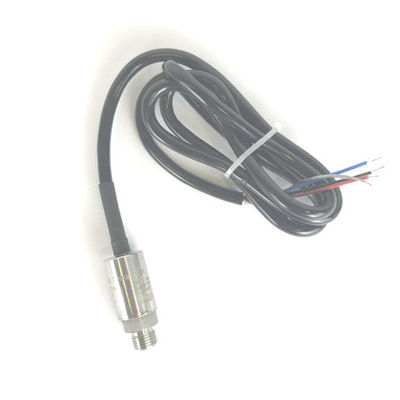

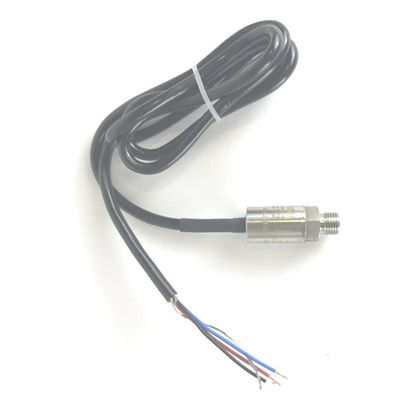

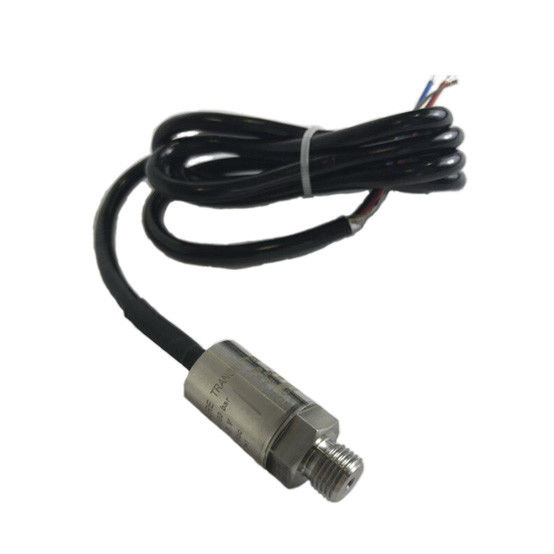

Detailed Images Ceramic Micro Liquid High Temperature Pressure Sensors
Specification
| Ceramic Micro Liquid High Temperature Pressure Sensors |
| Pressure Range | 0~1bar 0~60bar |
| Accuracy | 0.5%FS;1%FS;1.5%FS |
| Nonlinear | 0.02%FS |
| Reliability | 0.05%FS |
| Output Siginal | 0~5V, 0.5~4.5V, 1~5V, 4~20mA |
| Supply Voltage | 5V DC, 24(12~36V)DC |
| Operating Temperature | -40℃~125℃ |
| Compensated Temperature | -10℃~70℃ |
| Overload | 150%FS |
| Dielectric Material | 316SS |
| Electrical Connection | 3 Pin Packard Connector |
| Pressure Connection | 1/4NPT, 1/8-27NPT, 7/16-20UNF Custom |
Features Ceramic Micro Liquid High Temperature Pressure Sensors
* using integrated piezoresistive ceramic pressure sensor
* signal processing circuit ASIC imported from Germany
* signal conditioning circuit reliability redundant design and thermal design
* cycle fatigue pressures up to 10 million times
Applications Ceramic Micro Liquid High Temperature Pressure Sensors
* Automotive Oil Pressure
* Car brake pressure
* Motorized off-road equipment and industrial machinery
