| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | W1200 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $1250~$1799.50/pc |
| Packaging Details: | High Quality Portable Dry Block Temperature Calibrator Standard export carton packing or can customized |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Product Name: | Dry Body High Quality Portable Block Temperature Calibrator Instrument | Usage: | Industrial |
|---|---|---|---|
| Theory: | Temperature Controller | Accuracy: | ± 0.2 ℃ Grade, 0.2% |
| Temperature Range: | 300 ~ 1200℃ | Heat: | Semiconductor Refrigeration And Electro-thermal |
| Stability: | ±0.04℃ Or ±0.1℃ | Warranty: | 12 Months |
| Well Depth: | 150mm Or 200mm | Wellhead Size: | 40mm |
Dry Body High Quality Portable Block Temperature Calibrator Instrument
Description
Dry Body High Quality Portable Block Temperature Calibrator Instrument adopts a high stability temperature controller, the heat block adopts a better thermal conductivity alloy material. Portable dry block Temperature calibrator is technically synchronous with the advanced technology at home and abroad, in the depth of the insert, the level of temperature field, the vertical temperature field and other technical aspects, it is leading level.

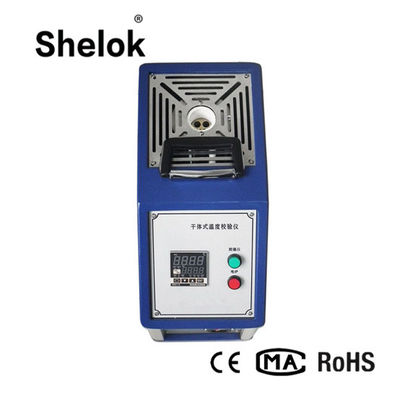

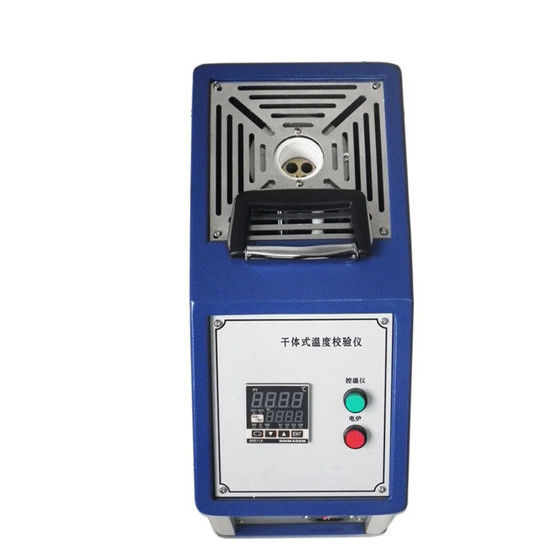

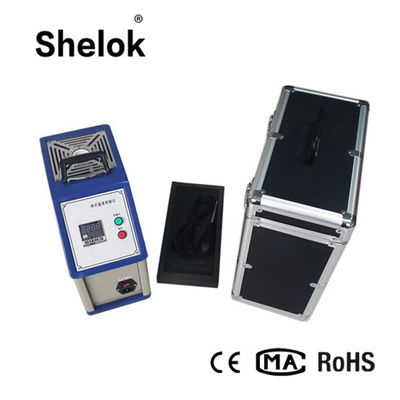

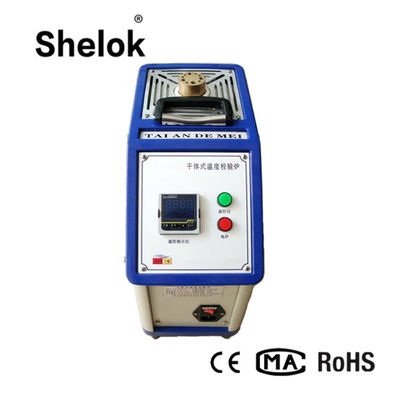

Detailed Images
Specification
| Dry Body High Quality Portable Temperature Calibration Instruments | |||
| Model No. | W150 | W600 | W1000 |
| Temperature Range | -20℃ ~ 150℃ | 50℃ ~ 650℃ | 300℃ ~ 1000℃ |
| Heat Source | Semiconductor refrigeration | electro-thermal | electro-thermal |
| Accuracy | 0.2% | 0.2% | 0.2% |
| Stability | ±0.04℃ | ±0.1℃ | ±0.1℃ |
| Resolution | 0.1℃ | 0.1℃ | 0.1℃ |
| Horizontal Temperature Field | ≤±0.25℃ | ≤±0.1℃ | ≤±0.3℃ |
| Vertical Temperature Field | From the bottom of the well 30mm≤0.5℃ | From the bottom of the well30mm≤0.5℃ | From the bottom of the well30mm≤±0.5℃ |
| Well Depth | 150mm | 200mm | 200mm |
| Wellhead Size | 40mm | 40mm | 40mm |
| Hole Size | φ9×6 | φ9×4 | φ9×6 |
| Box Size | 390x185x320mm | 330x165x320mm | 378x182x320mm |
| Power | 400W | 400W | 500W |
| Power Supply | 220V ~ 50Hz | 220V ~ 50Hz | 220V ~ 50Hz |
| Weight | 10KGS | 10KGS | 10KGS |
Notes: W150 power at each temperature point OPH value setting table
| Temperature | OPH |
| -20℃~0 | 100 |
| 50℃ | 20 |
| 100℃ | 60 |
| >100℃ | 100 |
Notes: W600 temperature at each point of the OUPH value
| Set the temperature point | Heating power (OUPH) |
| 50℃ | 2 |
| 100℃ | 2 |
Applications
Used in the required temperature range, it is easy to set and accurately produce the required temperature.It has the characteristic of small volume, fast heating, stable temperature control, no pollution, etc.The temperature sensor and instrument can be integrally calibrated, so it is easy to carry, easy to use, easy to fast and reliable temperature calibration. It is widely used in machinery, chemical, food, pharmaceutical and other industries.
Features
* A variety of insertion tube, to meet different sizes, the number of sensors for testing and calibration.
* According to user needs to adjust the heating rate.
* Cconfigure the RS485 / 232 interface portable heat sink can be connected with the computer.
Related products
FAQ
Q:How long will you reply me?
A:We will contact you as soon as possible but within 12 hours
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.
Q:How do you control your quality ?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).
Q: What certificates do you have ?
A:ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.
Q:Could I visit your factory?
A:Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q:can you provide OEM & Customized service?
A:Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
Company Information
Shelok considers itself not only a manufacture but more conprehensively a provider of industry specific customer-oriented solutions.Our profound understanding of product application and strong technical backgrounds ensure you the best product solution and achieve a greater success.
Xi'an Shelok Instrument Technology co.,ltd is a professional R&D center and manufacture of measuring instruments.And here's a variety of products for you choice: pressure transmitters,temperature transmitters,flow transmitters,weighing instruments and so on.Our products have been made by advanced technology, with high quality, fast delivery period, which have attracted so many domestic and foreign customers.
