| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | XY-201A |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $1150 ~$1650/pc |
| Packaging Details: | Water Pressure Balance Load Cell Test Equipment Standard export carton packing or can customized |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Product Name: | Differential Gauge Calibrator/Low Pressure Calibrator | Range: | -10kpa~+10kpa |
|---|---|---|---|
| Accuracy: | 0.05% |
Differential gauge calibrator/Low pressure calibrator
Description

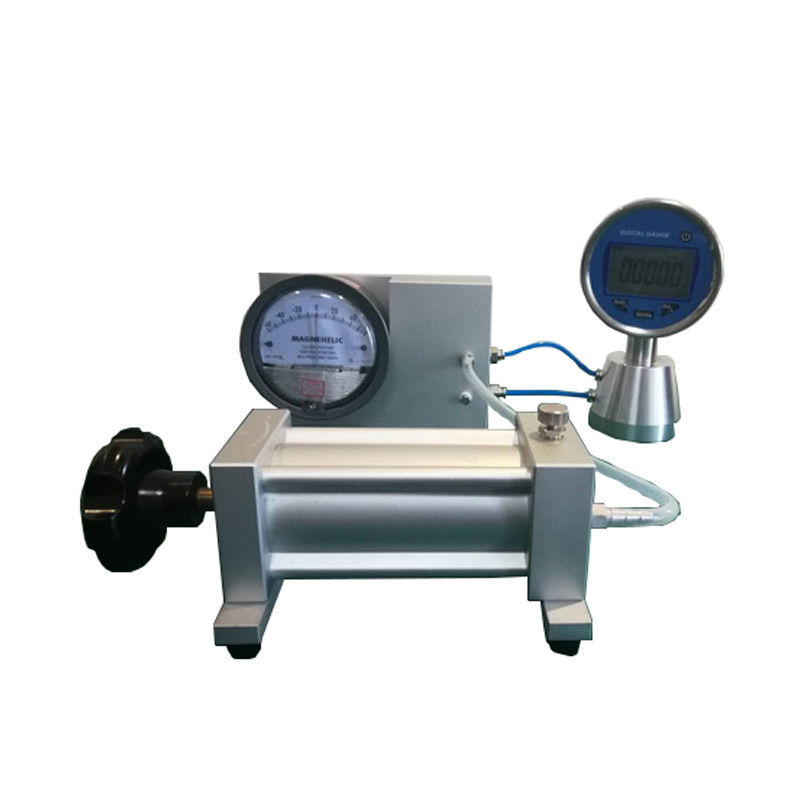

This Micro differential pressure gauge calibrator is composed of the miro generation pump ,standard gauage and the differential gauge bracket.It use high-quality stainless steel and aluminum alloy materials and thge seals and connectors imported from Germany. High-precision standard device to ensure accurate calibration .Easy to operate, stable lifting and lowering pressure, small adjustment fineness, easy maintenance, not easy to leak, with the highest safety performance in the industry, and widely used in power, petrochemical, metallurgy, transportation, pharmaceutical, metrology, education, scientific research and other fields
Detailed Images
Specification
| Name | Micro differential pressure gauge calibrator |
| Model | SLK201 |
| Pressure range | -10kpa~+10kPa |
| Accuracy | 0.05 level |
| Medium | clean and free of air or nitrogen |
| Connection | Hose plug |
| Components | pressure pump + digital standard gauge + differential pressure gauge mounting bracket |
| Weights | Around 4.5kg |
Features
1. Full range pressure calibration, equipped with high-precision digital standard gauge.
2. Small dimension,convient to check various pressure instruments on site or in the measuring room.
3. Portable metal shell, strong anti-interference, strong impact resistance.
4.Open structure, all parts and pipelines are combined on the front for easy maintenance.
5.Large capacity chamber, wide-stroke screw-type pressure generate pump, easy to make pressure, and high pressure speed.
Selection
Pressure range?
Accuracy level?
Related products
FAQ
Q:How long will you reply me?
A:We will contact you as soon as possible but within 12 hours
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.
Q:How do you control your quality ?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).
Q: What certificates do you have ?
A:ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delivery of goods, quality and safety inspection certification issued by third parts also can be offered.
Q:Could I visit your factory?
A:Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q:can you provide OEM & Customized service?
A:Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
