| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | XY-6/XY-60 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $296 ~ $395/pc |
| Packaging Details: | Water Pressure Balance Load Cell Test Equipment Standard export carton packing or can customized |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Pressure Range: | -0.098-6MPa/0-60MPA | Mini Adjustment: | 0.1mpa |
|---|---|---|---|
| Dimension: | 350x230x180mm | Weight: | 15KGS |
| Material: | Stainless Steel | Connection: | M20*1.5(M14*1.5) |
| Product Name: | Portable Pressure Gauges Calibration Machine | Medium: | Oil |
| Pressure Type: | Hydraulic Type | Warranty: | 12 Months |
Portable Pressure Gauges Calibrator
Description
Dead weight Tester ( world-wide acceptable )- pressure calibration also known as a pressure gauge calibration pump,The pressure gauge calibrator is movement of the piston rod pressure increases,So as to achieve the aim of compression.
Pressure gauge calibration device is used for testing the pressure source of general pressure gauge, pressure test can reach 60 MPA, inspection vacuum degree can reach -0.08 MPA.
In laboratory or measuring room generally fit precision pressure gauge (high precision can reach 0.25 magnitude) to detect the ordinary pressure gauge (precision is 1.6 or 2.5).
60MPa precision pressure gauge calibrator used to calibrate precision pressure gauge,digital pressure gauge,Stainless steel pressure gauge,diaphragm pressure gauge, etc.
60MPa precision pressure gauge calibrator consists of a digital pressure gauge and pressure gauge calibrator, to achieve high precision measurement calibration can also be printed out print data,Through RS232 interface and computer communications,realization of digital and intelligent of pressure gauge calibration.
XY-60/600 pressure meter calibration device is composed of a hand pump (1), oil cup (2) and two one-way valve (3),Each other with the connecting pipe (4) is connected, is fixed on the base (5), (3) is provided with a valve at both ends of M20 × 1.5 lock nuts with a precision pressure gauge and pressure gauge connected by test.Close the cup valve, rotating the handwheel to drive the piston to move, resulting in pressure (or vacuum) can be transferred to the two pressure gauges,According to the precision pressure gauge display data check general pressure gauge is qualified.

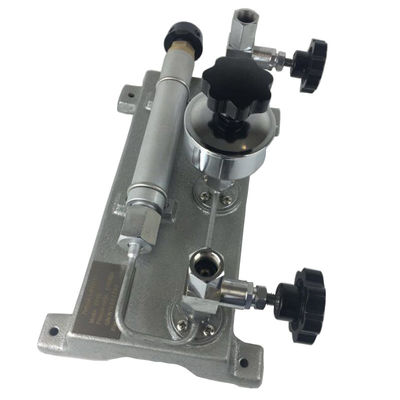

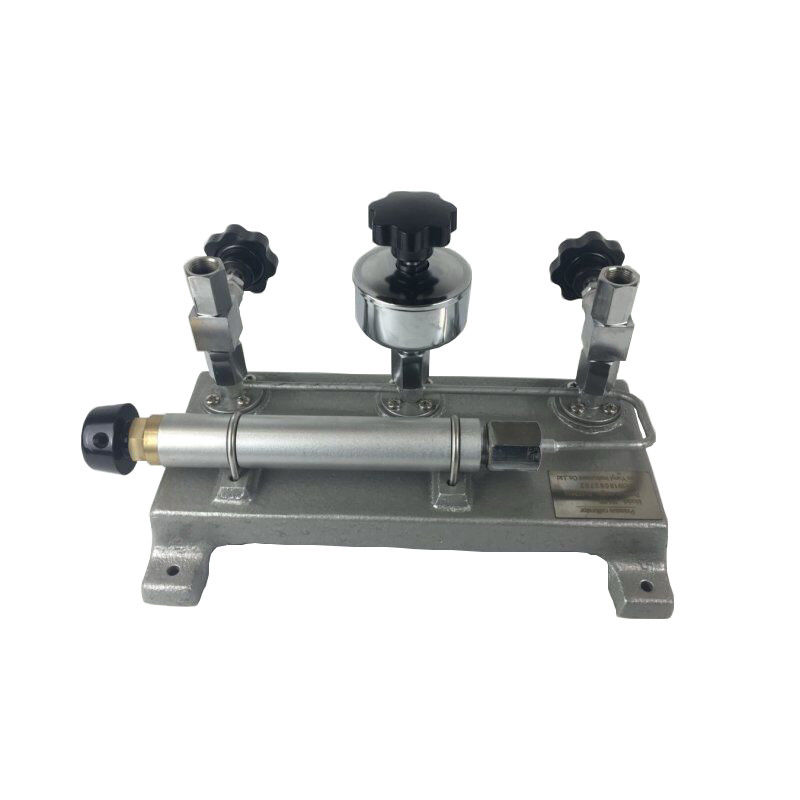

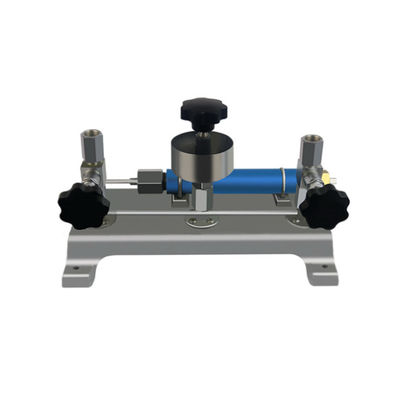

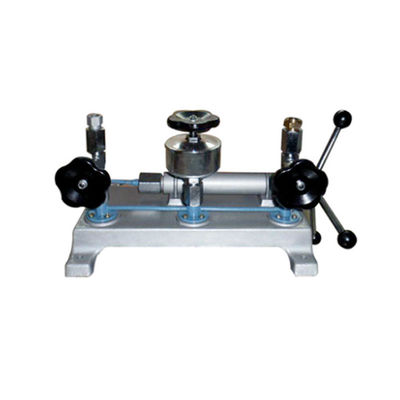

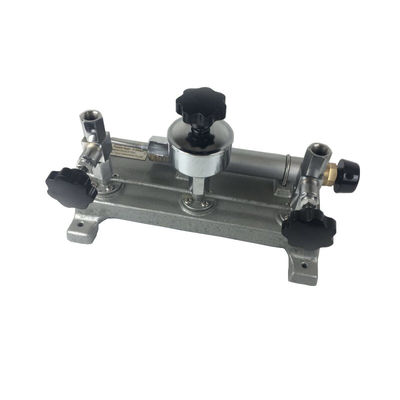

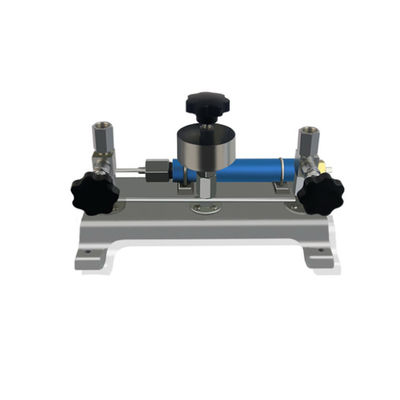

Detailed Images
Specification
| Portable Pressure Gauges Calibrator Machine | ||
| Model No. | XY-6 | XY-60 |
| Pressure Range | -0.082 ~ 6Mpa | 0 ~ 60Mpa |
| Connector | M20×1.5(M14×1.5) | |
| The Minimum Adjustable Range | 0.1Mpa | |
| Volume | 350×230×180mm | |
| Weight | 15KGS | |
| Material | Stainless Steel | |
| Medium | Oil | |
| Pressure Type | Hydraulic Type | |
| Warranty | 12 Months | |
| Keywords | precision pressure gauge calibrator,manual micro,low cost pressure calibrator | |
Features
1. Max pressure range is 80mpa
2. Working medium is oil
3. Factory price
4. Fast delivery
Applications
Pressure gauge calibration device is used for testing the pressure source of general
pressure gauge,Used in laboratory, industrial pressure calibration
Selection Guide
1. What's pressure range do you need?
2. What's thread connection type do you need?
3. What's qty do you need?
Related products
FAQ
Q:How long will you reply me?
A:We will contact you as soon as possible but within 12 hours
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.
Q:How do you control your quality ?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).
Q: What certificates do you have ?
A:ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.
Q:Could I visit your factory?
A:Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q:can you provide OEM & Customized service?
A:Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
