| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | Y039 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $178 ~ $189/pc |
| Packaging Details: | Water Pressure Balance Load Cell Test Equipment Standard export carton packing or can customized |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Pressure Range: | 0-1.6mpa(0-16bar) | Dimension: | 220x110x55mm |
|---|---|---|---|
| Weight: | ≤ 0.8Kg | Application: | Pressure Calibration |
| Medium: | Pneumatic Pressure | Thread: | M14 *1.5,M20 X 1.5 |
| Stability: | 0.05% | Work Temperature: | 0~40℃ |
| Relative Humidity: | ≤100% | Warranty: | One Year |
Description of pneumatic pressure calibration hand pump hand pressure calibrator
Y039 Hand-operating Pressure Pump is a liquid hand pressure pump. It is used to calibrate the pressure instruments of the industrial process in the field and/or control room. Also it can be used as a pressure generator for pressure instruments, All kinds of pressure transmitter and pressure gauge and other pressure instrument that with a pressure below 1.6mpa, can be calibrated by this pressure pump.
Y039 hand-operating pressure pump(see attachment) is compose of cylinder, piston rod, trim adjustment valve, switch valve, handle, quick connector etc. The quick connector is used to connect the calibrated instrument and the standard gauge. When use it, press and relive the handle for several times, to drive the piston rod reciprocating motion, change the volume of the cylinder, can produce the output pressure of 0-1.6mpa.
Features of pneumatic pressure calibration hand pump hand pressure calibrator
The hand-operating pressure pump is portable, light weight, wide temperature range, easy to use. There is a trim adjustment handle valve and switch valve on the pump, so that it is easy to adjust the pressure or exhaust the air.
There are also matched fast connection, nylon hose, instrument connector etc, used to connect the calibrated instrument and the standard gauge. The pump is easy to carry and to connect with the calibrated instruments in the field, so the operator can calibrate the instrument fast and simple.
Specification of pneumatic pressure calibration hand pump hand pressure calibrator
| Pressure range | 0~1.6Mpa | Weight | 1Kg |
| Temperature | -20~50℃ | Relative humidity | ≤100% |

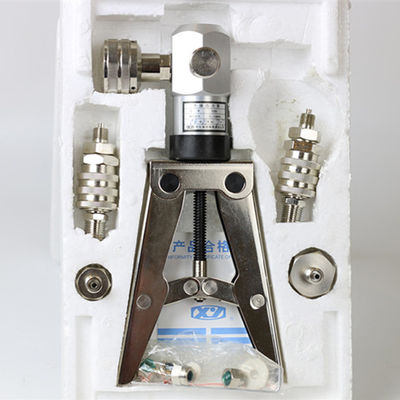

| Accessory | Joint 2pcs Quick connector 2pcs Joint cap 4pcs Seal ring 4pcs Seal gasket 2pcs 6x1 nylon hose 2pcs Internal six angle screw wrench 1pc |
||

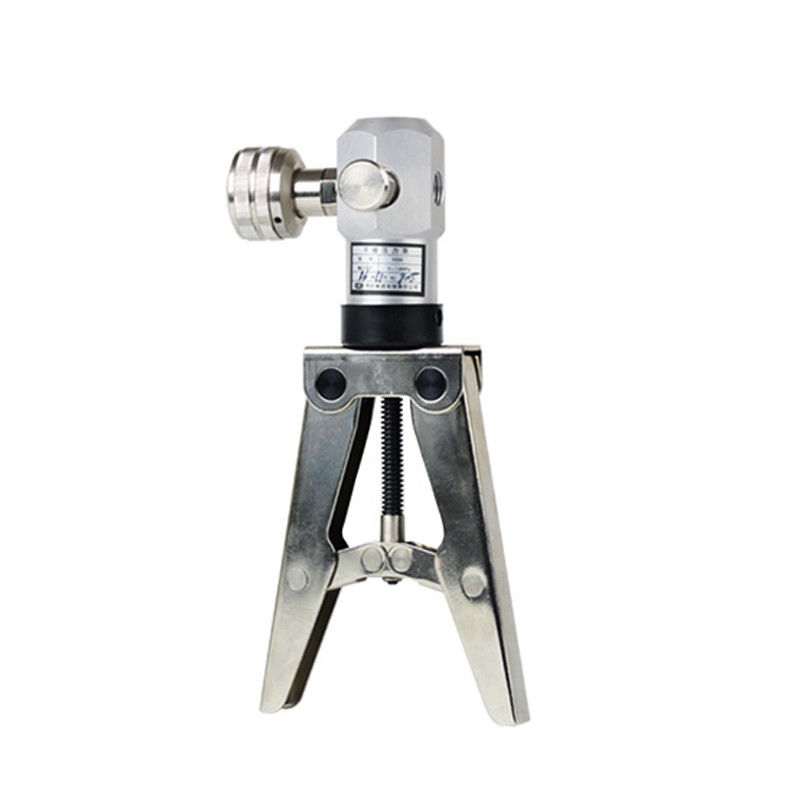

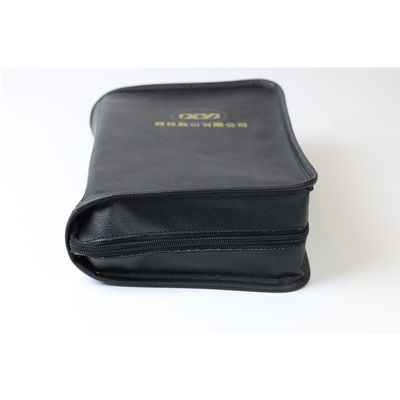

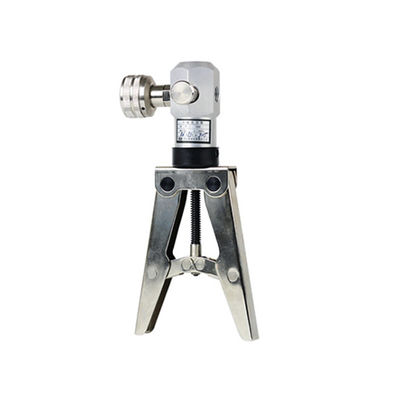

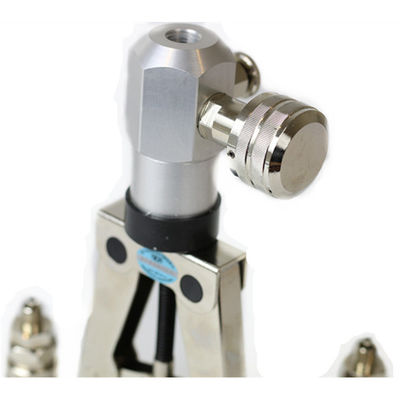

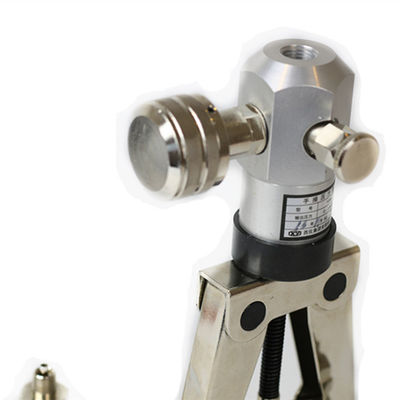

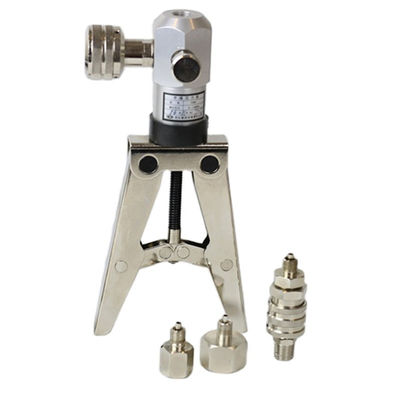

Detailed Images of pneumatic pressure calibration hand pump hand pressure calibrator
Related products
Company Information
Shelok considers itself not only a manufacture but more conprehensively a provider of industry specific customer-oriented solutions.Our profound understanding of product application and strong technical backgrounds ensure you the best product solution and achieve a greater success.
Xi'an Shelok Instrument Technology Co.,Ltd is a professional R&D center and manufacture of measuring instruments.And here's a variety of products for you choice: pressure transmitters,temperature transmitters,flow transmitters,weighing instruments and so on.Our products have been made by advanced technology, with high quality, fast delivery period, which have attracted so many domestic and foreign customers.
