| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | YFP Series |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $320 ~ $360/pc |
| Packaging Details: | Water Pressure Balance Load Cell Test Equipment Standard export carton packing or can customized |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Item: | Hand Pressure Calibration Calibrator Pump YFP-16/20/25 | Pressure Range: | -0.1~2.5MPa |
|---|---|---|---|
| Work Temperature: | -20 To 50℃ | Diemnsion: | 220x110x55mm |
| Weight: | 1.5~2.5kg | Application: | Produce Pressure |
| Medium: | Air Or Oil | Thread: | 1/4NPT |
| Warranty: | 12 Months | OEM: | No |

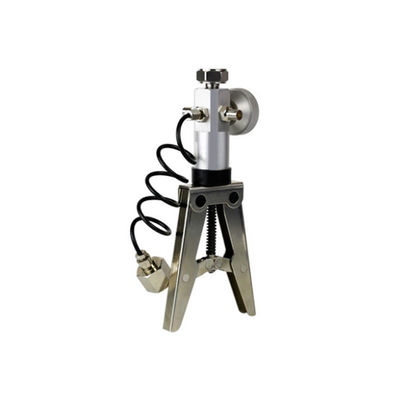

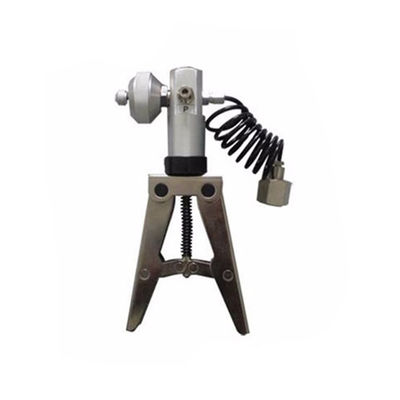

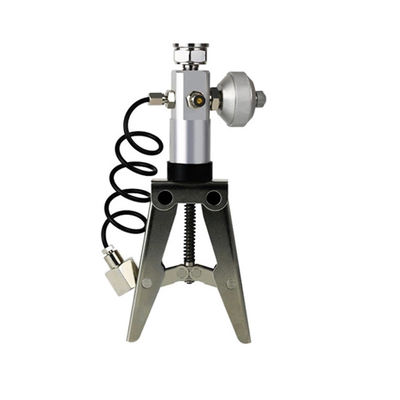

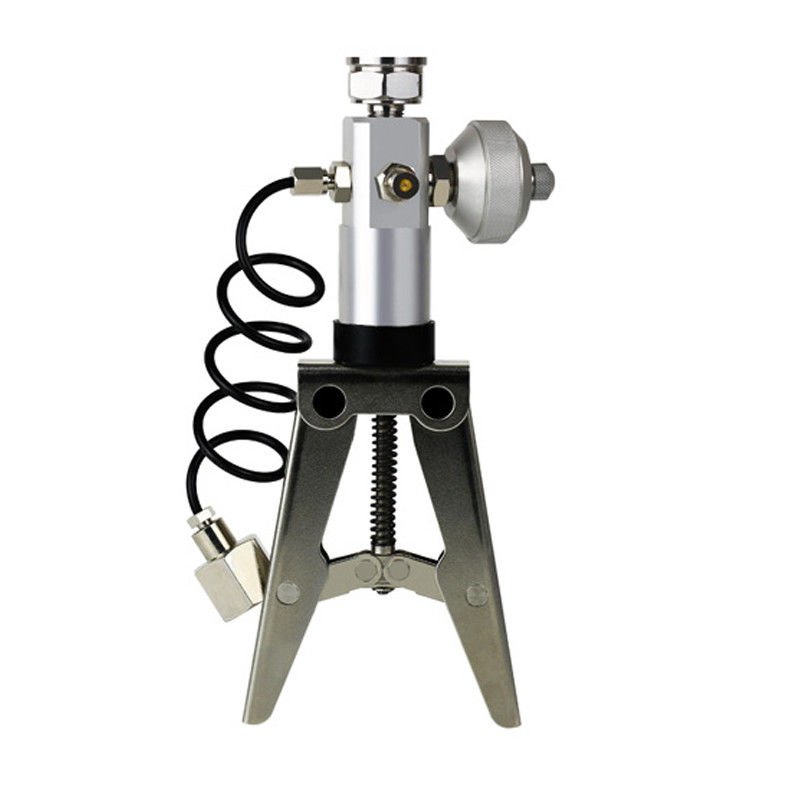

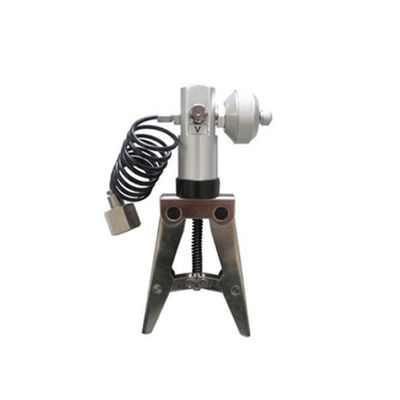

YFP type vacuum pressure hand pump is a quick hand pressure source, by adjusting the pressure vacuum valve can realize the vacuum pumping and positive pressure, suitable to calibrate kinds of differential pressure, vacuum, vacuum pressure and pressure instrument, and also can be used as vacuum pressure source of the above pressure instrument. Characteristic of compact size, light weight, easy to operate, hand held, can can be matched to vacuum pressure instrument.
1. Output pressure: -0.088~1.6MPa(-0.88~16bar)
-0.088~2.0MPa(-0.88~20bar)
-0.088~2.5MPa(-0.88~25bar)
2. Work Environment: Temperature: 0~40℃
Relative Humidity: 5~95%
(1) Joint: 2pcs
(2) Quick connector: 2pcs
(3) Joint cap 4pcs
(4) Seal ring 4pcs
(5) Seal gasket 2pcs
(6) 6x1 nylon hose 2pcs
(7) Internal six angle screw wrench 1pc
Y039: 0~1.6MPa
Stability :0.05%
Type :Pneumatic pressure
Y060: 0~25MPa
Stability :0.05%
Type :Hydraulic pressure
Y061: -0.08~0MPa
Stability :0.05%
Type :Pneumatic pressure
YFP-16: -0.088~1.6MPa
Stability :0.05%
Type :Pneumatic pressure
YFP-16: -0.088~2.0MPa
Stability :0.05%
Type :Pneumatic pressure
YFP-16: -0.088~2.5MPa
Stability :0.05%
Type :Pneumatic pressure
