| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | YK-210 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $840 ~ $3060/pc |
| Packaging Details: | Water Pressure Balance Load Cell Test Equipment Standard export carton packing or can customized |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Product Name: | Digital Hand Pump LCD Pressure Calibrator | Measuring Range: | -0.095 ~ 0 ~ 20MPa |
|---|---|---|---|
| Resolution: | Pressure: Min: 1Pa; Current: Min: 1uA | Current Measurement Range: | 0 ~ 22mA |
| DC Output: | 24VDC | Accuracy: | Pressure: 0.1% F.S, 0.05% F.S; Current: 0.05% ± 1d. |
| Ambient Temperature: | 5 ~ 50 ° C | DC Working Time: | ≥ 16h |
| Dimension: | 300 * 150 * 120mm | Weight: | 2.5Kg |

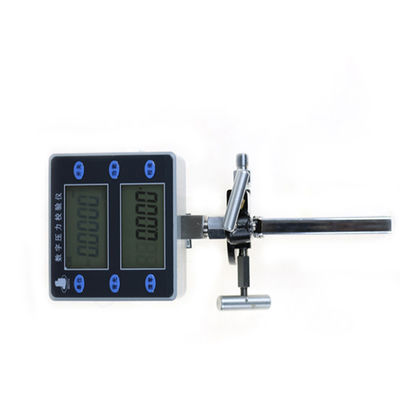

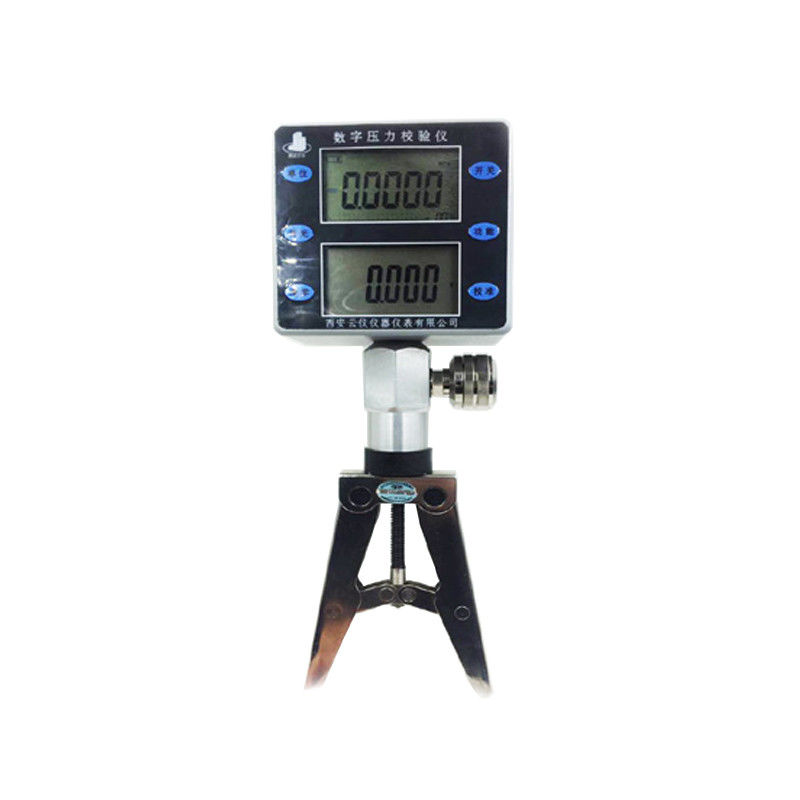

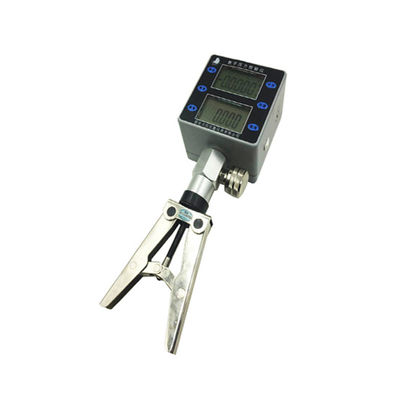

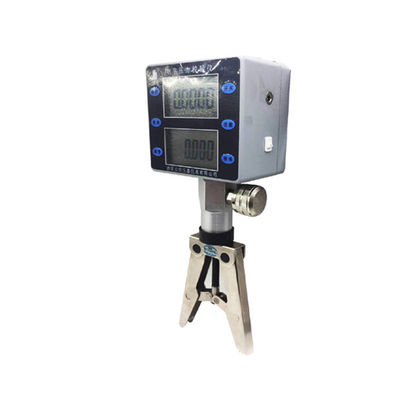

Description of digital hand pump LCD pressure calibrator:
Digital pressure calibrator SLK-2000 combines digital display and pressure manufacturing. It is mainly used for on-site pressure verification (pressure transmitter, pressure gauge), etc. It provides 24V and current measurement voltage measurement, and integration makes field calibration more convenient. It is the ideal instrument for pressure calibration pressure testing.
Features of digital hand pump LCD pressure calibrator:
Metal case, strong and impact resistant.
The dual-row LCD of pressure and current is displayed at the same time, which is intuitive and clear.
Manual pressure build - 95KPa ~ 2MPa (high pressure with external pump).
The pressure source parts are finely ground and have good air tightness and meet the IP54 sealing standard.
The volumetric micro-regulator makes it easy to achieve the verification point pressure.
Pressure vacuum switch type selection, switching is simple and convenient.
Backlighting helps you continue your work tasks when there is insufficient light.
Pressure, current and voltage measurement, with DC24V loop power supply on-site inspection, a table can be.
Specification of digital hand pump LCD pressure calibrator:
| Specification SLK-2000 | |||
| Pressure range | -0.095 ~ 0 ~ 20MPa | DC output | 24VDC |
| Resolution | Pressure: Min: 1Pa; Current: Min: 1uA | Current range | 0 ~ 22mA |
| Accuracy | Pressure: 0.1% F.S, 0.05% F.S.Current: 0.05% ± 1d | Display | 41/2LCD, 51/2LCD pressure, current dual display |
| Ambient temperature | 5 ~ 50 ° C | DC working time | ≥ 16h |
| Relative humidity | ≤ 80% RH | Weight | 2.5Kg |
| Load capacity | 1.2 to 1.5 times the upper limit of the range | Dimension | 300 * 150 * 120mm (length * width * height) |
| Power | 220VAC 50Hz 3VA | ||
Applications of digital hand pump LCD pressure calibrator:
In addition to high accuracy calibration standards (tables), this series of precision digital pressure gauges can also be used as working instruments, and are widely used in metallurgy, petroleum, electric power, chemical, natural gas, metrology and scientific research departments.
