| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | XY-2009 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $2301 ~ $3175/pc |
| Packaging Details: | Water Pressure Balance Load Cell Test Equipment Standard export carton packing or can customized |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Product Name: | Digital Electro Oil Portable Hydraulic Pressure Calibrator | Measuring Range: | 0 ~ 60MPa |
|---|---|---|---|
| Connection: | M20*1.5 Thread | Dimension: | 380 * 320 * 320mm |
| Weight: | About 10kg | Resolution: | 0.01 MPa |
| Type: | Electric | Medium: | Oil |
| Application: | Pressure Gauge Calibration Equipment | Power Supply: | Four-digit LCD Display |
Description

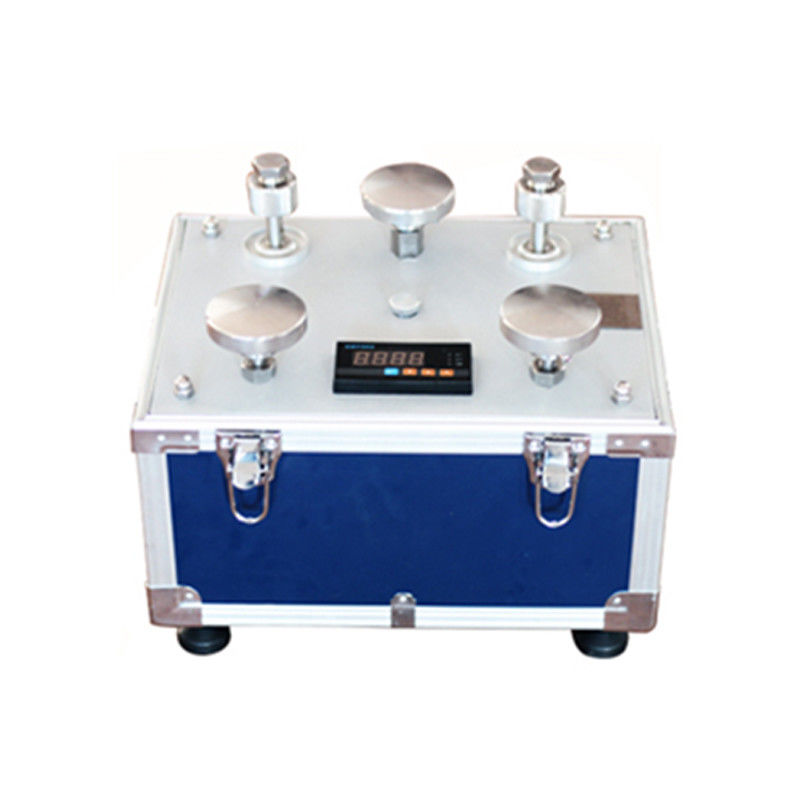

XY-2009 digital electro oil portable hydraulic pressure calibrator, the pressure transmission medium is oil, the pressure is fast, and the pressure can be transmitted from a long distance. The utility model has the advantages of simple structure, high reliability, convenient operation and maintenance, and is not easy to leak. Four-digit LCD display, the pressure adjustment range is extremely large, and the lifting pressure is stable. Mainly used for verifying pressure (differential pressure) transmitters, precision pressure gauges, and ordinary pressure gauges.Calibration of pressure gauges and pressure transmitter in the laboratory and in the field.
Features
Electric pressure building, labor saving;
Portable
The hydraulic pump adopts advanced sealing technology, the pressure can reach more than 60 MPa, and there is no leakage for long-term use;
The hydraulic pump is noise free,
Four-digit LCD display with high resolution, up to 0.01 MPa at 60 MPa.
Specification
| Specification SLK-2009C | |||
| Pressure range | 0 ~ 60MPa | Medium | oil |
| Resolution | 0.01 MPa | Display | Four-digit LCD display |
| Dimension | 380 × 320 × 320mm | Weight | about 10kg |
| Connection | M20×1.5 thread, can be equipped with non-standard joints | ||
