Hand held hand pump pressure calibrator tester Y039

Hand held hand pump pressure calibrator tester Y039

Hand held hand pump pressure calibrator tester Y039

Product Details:

Place of Origin:	Made In China
Brand Name:	SHELOK
Certification:	CE
Model Number:	YFP

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	$353 ~ $395/pc
Packaging Details:	Water Pressure Balance Load Cell Test Equipment Standard export carton packing or can customized
Delivery Time:	3 ~ 7 Working Days After Payment
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	10000pcs/Month

Contact Now

Detailed Product Description

Item:	Hand Pump Pressure Calibrator Tester	Pressure Range:	0~1.6MPa
Work Temperature:	-20 To 50℃	Diemnsion:	220x110x55mm
Weight:	1.5~2.5kg	Application:	Produce Pressure
Medium:	Air Or Oil	Thread:	1/4NPT
Warranty:	12 Months	OEM:	No

Product Description

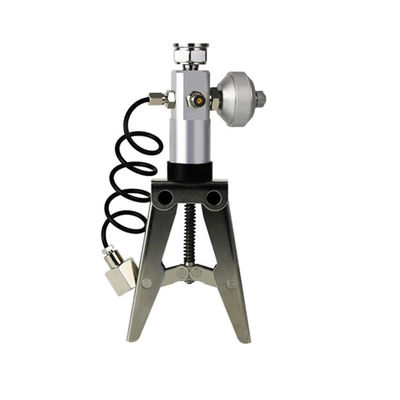

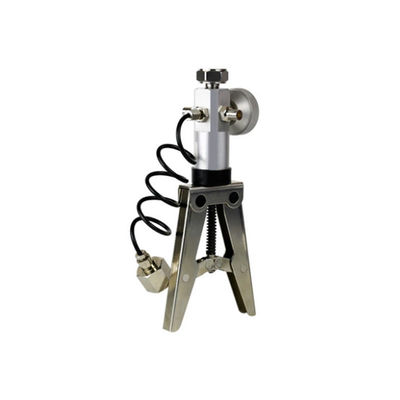

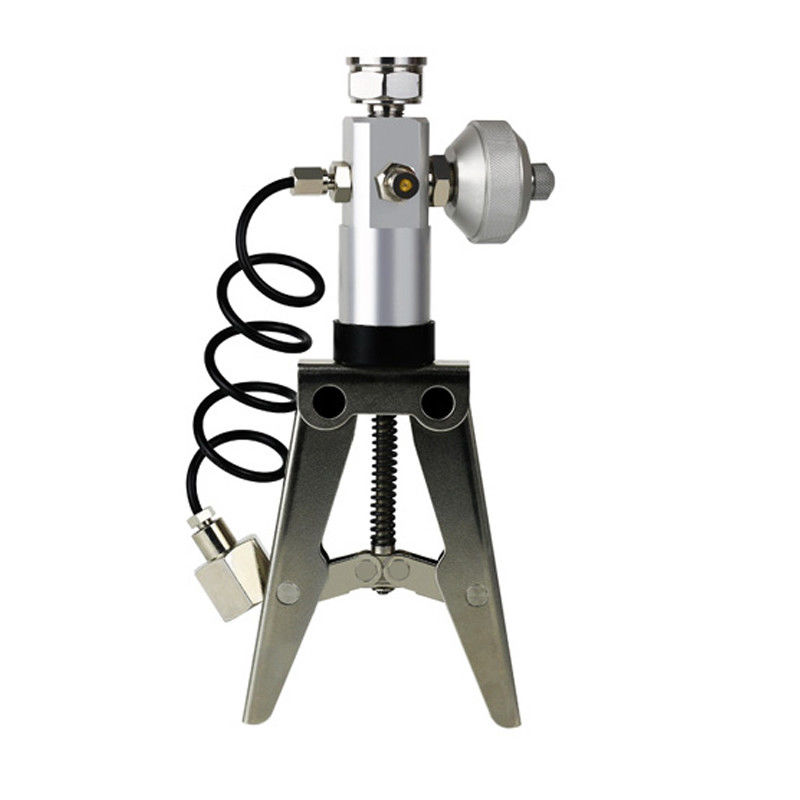

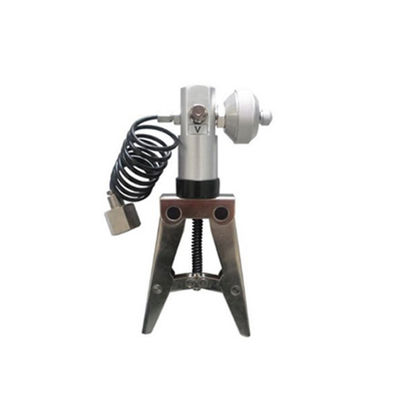

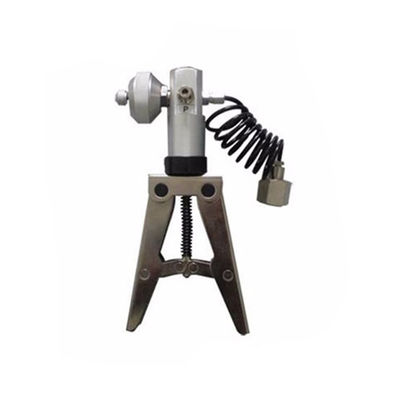

Hand held hand pump pressure calibrator tester Y039

Hand pump pressure calibrator tester:

Y039 Hand-operating Pressure Pump is a liquid hand pressure pump. It is used to calibrate the pressure instruments of the industrial process in the field and/or control room.Also it can be used as a pressure generator for pressure instruments,All kinds of pressure transmitter and pressure gauge and other pressure instrument that with a pressure below 1.6mpa, can be calibrated by this pressure pump.

Specification

Specs of hand pump pressure calibrator tester:

1. Working pressure: 0-1.6MPa
2. Working temperature: -20 to 50℃
3. Dimension: 220x110x55mm
4. Weight: 0.5kg

Hand held hand pump pressure calibrator tester Y039

Hand held hand pump pressure calibrator tester Y039

Accessory of hand pump pressure calibrator tester:

(1) Joint: 2pcs
(2) Quick connector: 2pcs
(3) Joint cap 4pcs
(4) Seal ring 4pcs
(5) Seal gasket 2pcs
(6) 6x1 nylon hose 2pcs
(7) Internal six angle screw wrench 1pc

Detailed Images

Hand held hand pump pressure calibrator tester Y039

Hand held hand pump pressure calibrator tester Y039

Hand held hand pump pressure calibrator tester Y039

Range Optional

Hand held hand pump pressure calibrator tester Y039

Hand held hand pump pressure calibrator tester Y039

Hand held hand pump pressure calibrator tester Y039

Y039 hand pump calibrator

Y039: 0~1.6MPa
Stability :0.05%
Type :Pneumatic pressure

Y060 hand pump calibrator

Y060: 0~25MPa
Stability :0.05%
Type :Hydraulic pressure

Y061 hand pump calibrator

Y061: -0.08~0MPa
Stability :0.05%
Type :Pneumatic pressure

Hand held hand pump pressure calibrator tester Y039

Hand held hand pump pressure calibrator tester Y039

Hand held hand pump pressure calibrator tester Y039

YFP-16 hand pump calibrator

YFP-16: -0.088~1.6MPa
Stability :0.05%
Type :Pneumatic pressure

YFP-20 hand pump calibrator

YFP-16: -0.088~2.0MPa
Stability :0.05%
Type :Pneumatic pressure

YFP-25 hand pump calibrator

YFP-16: -0.088~2.5MPa
Stability :0.05%
Type :Pneumatic pressure
