| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | Y047/Y055 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $850 ~ $1400/pc |
| Packaging Details: | Water Pressure Balance Load Cell Test Equipment Standard export carton packing or can customized |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Item: | Floating Ball Pressure Standard Instrument | Pressure Range: | 0.01-0.25/0.05-0.6MPa |
|---|---|---|---|
| Work Temperature: | 15 To 30℃ | Diemnsion: | 380x240x260mm |
| Weight: | 19kg | Application: | Calibrate Pressure |
| Medium: | Air | Thread: | 1/4NPT Or Others |
| Warranty: | 12 Months | OEM: | No |

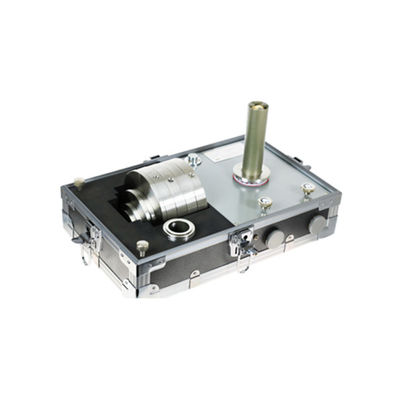

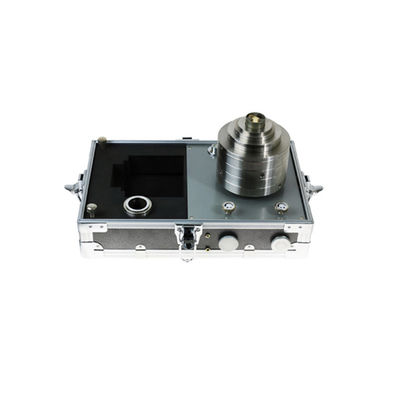

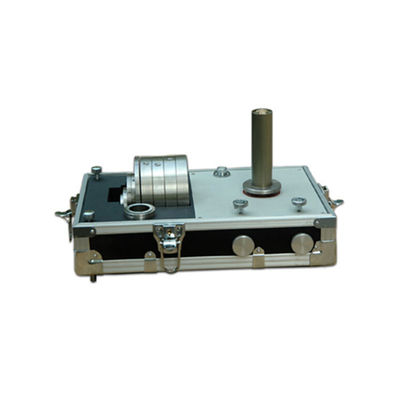

Floating ball type pressure meter with compressed air or nitrogen gas as the pressure source, is a Aerodynamic load pressure meter that with precision float ball in pressure area of lower sphere working state for the effective area of the floating ball.
Materials of Construction
Piston material : Tungsten Carbide/HCHC/Ceramic
Cylinder material: Tungsten Carbide/HCHC
Mass Set materials:
Non magnetic 300 series
Austenitic Stainless Steel.
Wetted Parts:
Non magnetic 300 series
Austenitic Stainless Steel
connection: m30 x 2 female thread
