| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | Y060 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $245 ~ $269/pc |
| Packaging Details: | Water Pressure Balance Load Cell Test Equipment Standard export carton packing or can customized |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Output Pressure: | -0.1 ~ 25Mpa | Table Connector Thread: | M14 * 1.5 Thread(exports By 1/4NPT) |
|---|---|---|---|
| Hose Connector Thread: | M20* 1.5 Thread (exports By 1/2NPT) | Temperature: | 0 ~ 40 °C |
| Product Name: | Portable Hand Pressure Calibrator Pump |

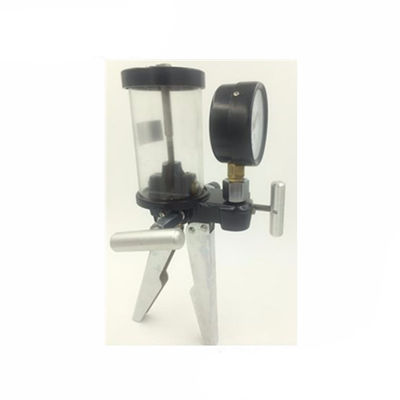

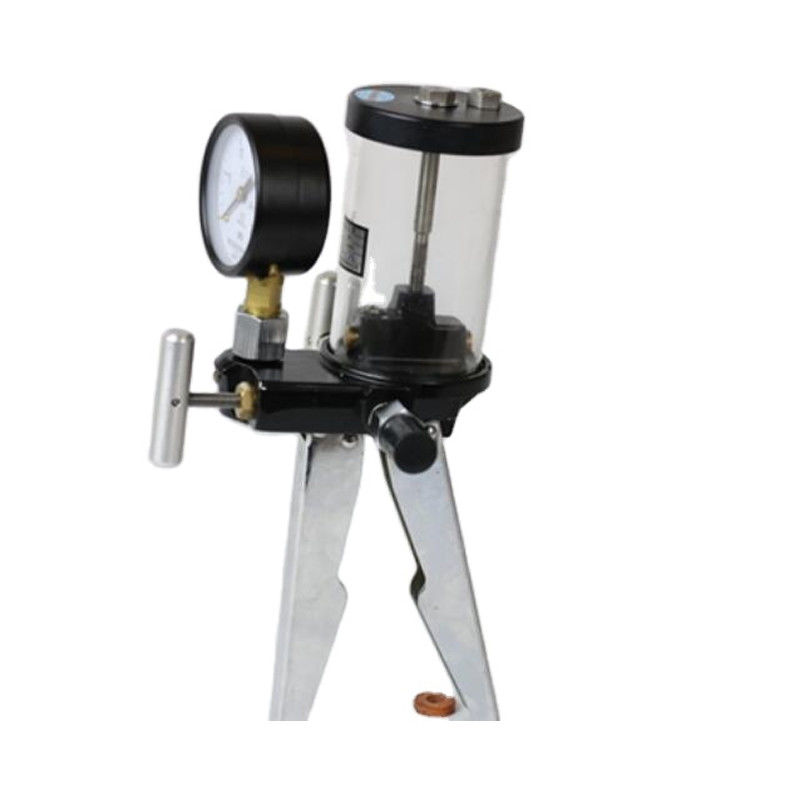

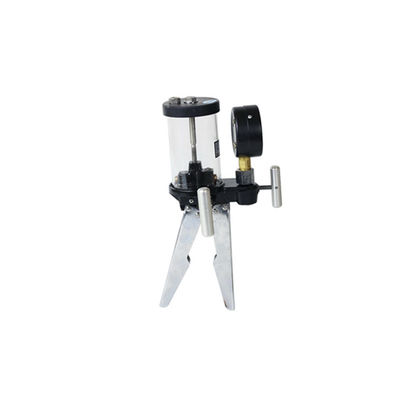

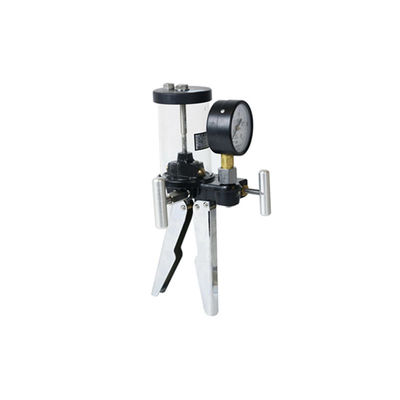

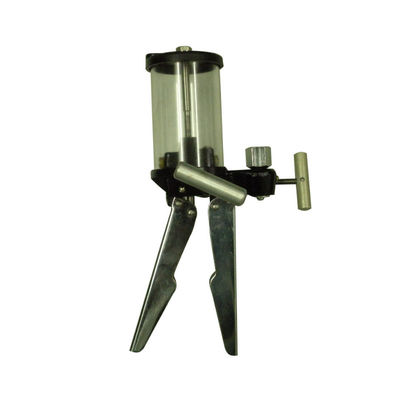

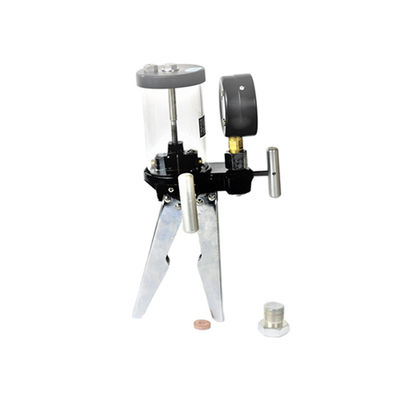

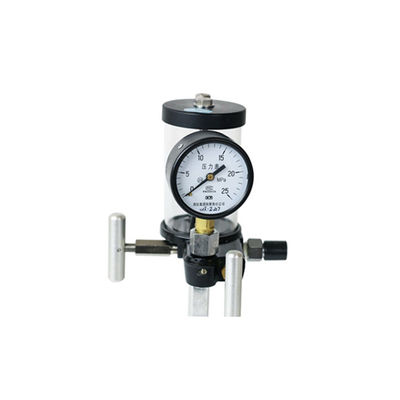

Portable hand pressure calibrator pump is a quick hand pressure source, by adjusting the pressure vacuum valve can realize the vacuum pumping and positive pressure, suitable to calibrate kinds of differential pressure, vacuum, vacuum pressure and pressure instrument, and also can be used as vacuum pressure source of the above pressure instrument. Characteristic of compact size, light weight, easy to operate, hand held, can can be matched to vacuum pressure instrument.
1.Portable, light weight,,Suppression of light.Easy to use Structural design pressure fine-tuning hand,Rotate the fine-tuning hand can easily change the output pressure.Also comes with a high-pressure hose connection is timing ,Meter connector connect pressure gauge .
2.Hand pressure pump is the handle, the piston rod. Through gas, pump cover, put the oil hand, fine-tuning hand, form joint, etc .rotation.
Name: Portable hand pressure calibrator pump
pressure calibrator pump is a portable pressure pump.For field installation of instrument calibration in the industrial process and control of indoor use all kinds of pressure gauges.
Can also provide pressure source correction table for pressure measuring instrument manufacturer.All kinds of pressure transmitter within every 60 M pa,Pressure sensor and all kinds of pressure gauges Check all available hand pressure pum.
Output pressure range: 0-1.6MPa, -0.1-0MPa, 0-25MPa
Operating temperature: -20~50C
Operating relative humidity: 0~100%
Flexible hose connector: M20*1.5 female
Master gage connector: 1/4NPT male
Dimensions: 235×120×65 230 x 110 x 60
Weight: 0.6kg 0.5kg
Accessories: 500 mm long plastic hose and a leatherette carrying bag
Outlet threads: 1/4 NPT, or to custom request
Vernier-adjuster: micro-adjustable, volume control
Q:How long will you reply me?
A:We will contact you as soon as possible but within 12 hours
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.
Q:How do you control your quality ?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).
Q: What certificates do you have ?
A:ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.
Q:Could I visit your factory?
A:Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q:can you provide OEM & Customized service?
A:Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
