| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | XY-2010 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $850 ~ $1250/pc |
| Packaging Details: | Water Pressure Balance Load Cell Test Equipment Standard export carton packing or can customized |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Name: | Electrical Vacuum/Pneumatic/Hydraulic Pressure Calibrator | Pressure Range: | -0.1~0~3~60MPa |
|---|---|---|---|
| Connection: | M20*1.5 | Work Condition: | Field Or Laboratory |
| Weight: | 25KG |

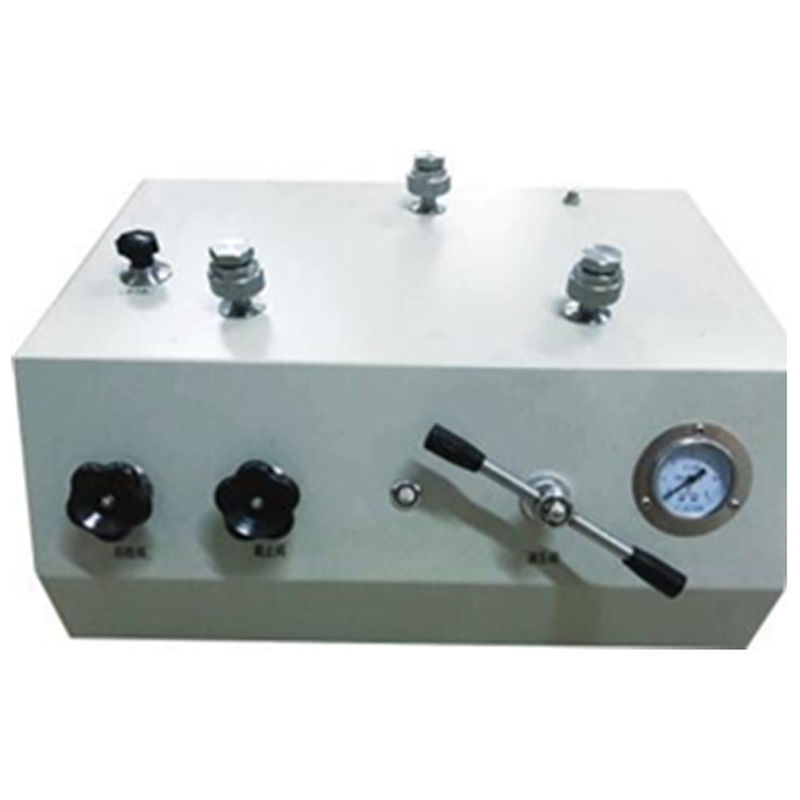

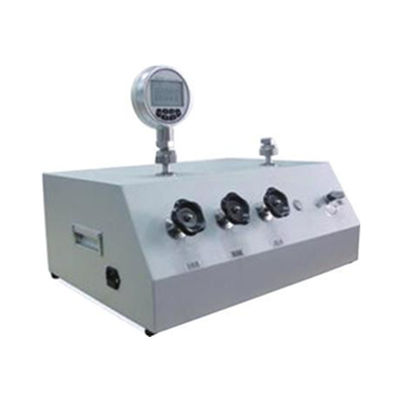

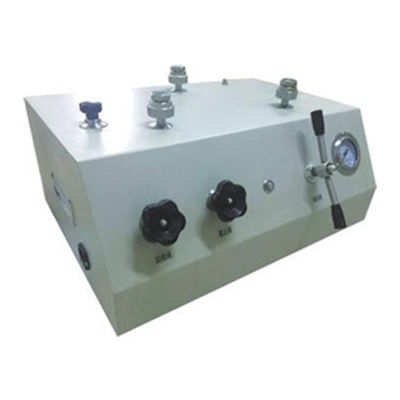

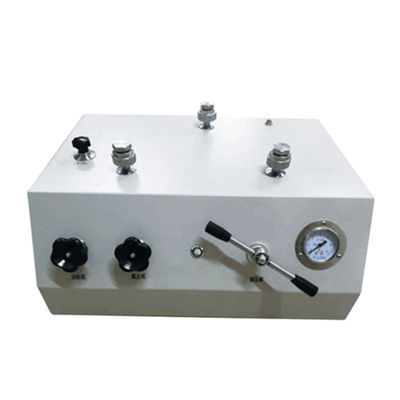

Electrical Vacuum/Pneumatic/Hydraulic Pressure Calibrator
Description :Electrical Vacuum/Pneumatic/Hydraulic Pressure Calibrator
This series pressure calibrator is designed for field and laboratory calibration pressure gauges , It has simple structure, high reliability, convenient operation and maintenance, not easy to leak. Four liquid crystal display, heavy pressure adjusting range, life pressure steady. Is mainly used to check the pressure (differential pressure) transmitters, precision pressure gauge, the common pressure gauge.
Application :
To check pressure (differential pressure) transmitter, precision pressure gauge, ordinary pressure gauge and other pressure instrument to provide the source of pressure.
Parameter:
| Type | Table Type | Table Type | Table Type |
|
Picture |
|
|
|
| Name | Electrical Vacuum Pressure Calibrator | Electrical Pneumatic Pressure Calibrator | Electrical Hydraulic Pressure Calibrator |
| Model | XY-2009B | XY-4001 | XY-2009C |
| Work Condition | Field or Laboratory | Field or Laboratory | Field or Laboratory |
| Pressure Range | -0.1~0MPa | 0~3MPa | 0~60MPa |
|
Expanding Pressure Range |
-0.95-0.6MPa | 0~6MPa | 0.1-0.6MPa |
| Fine Adjustment | 1KPa | 1KPa | 1kpa |
| Medium | Non polluting and non corrosive gas | Non polluting and non corrosive gas | Hydraulic oil, castor oil |
|
Features |
Reliable, labor saving, stable and high pressure, high pressure making efficiency | labor saving, high pressure making efficiency, durable, nearly no leak | labor saving, high pressure making efficiency, durable, nearly no leak |
| Connection | M20*1.5(3pcs) | M20*1.5(3pcs) | M20*1.5(3pcs) |
| Volume | 340×290×330 mm | 340×290×330 mm | 340×290×330 mm |
| Weight | 25KG | 25KG | 25KG |
|
Accessories |
Certificate*1, warranty card *1, manual*1, vulnerable parts (several) |
Certificate*1, warranty card*1, manual*1, vulnerable parts (several) | Certificate*1, warranty card*1, manual*1, vulnerable parts (several) |
| Warranty | 12 months | 12 months | 12 months |
