| Place of Origin: | Made In China |
| Brand Name: | NanCon |
| Certification: | CE |
| Model Number: | XY-2001B |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $395 ~ $810/pc |
| Packaging Details: | Water Pressure Balance Load Cell Test Equipment Standard export carton packing or can customized |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Name: | Micro Pneumatic Pressure Calibrator | Connection: | M20*1.5 |
|---|

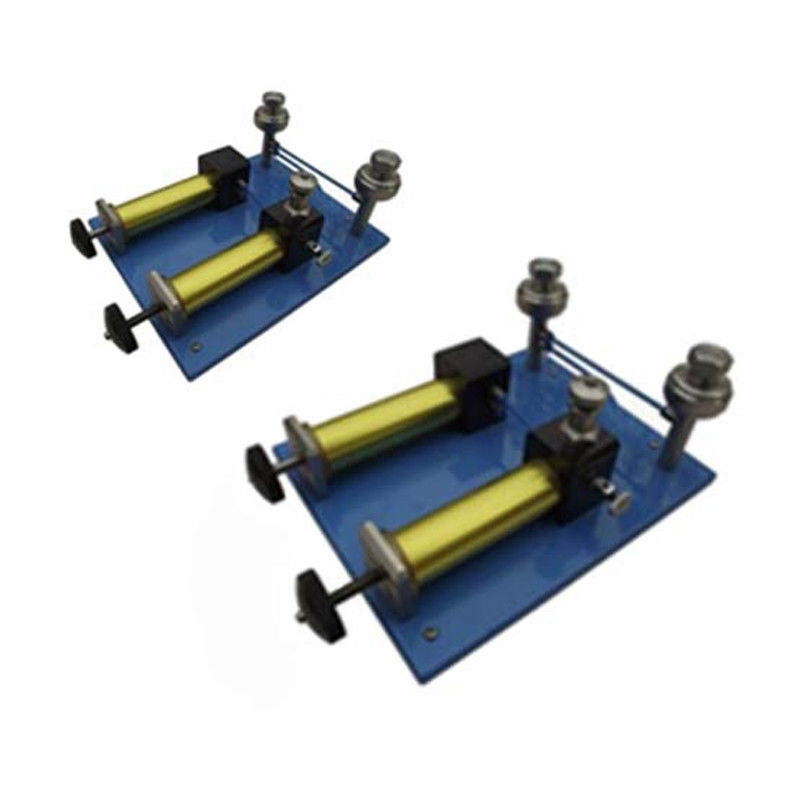

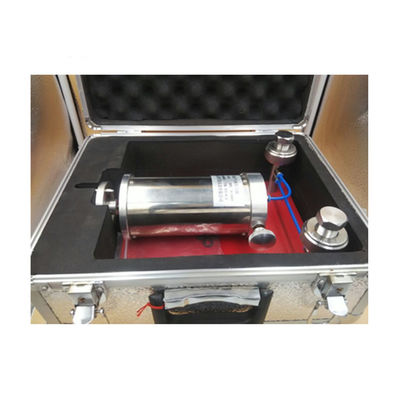

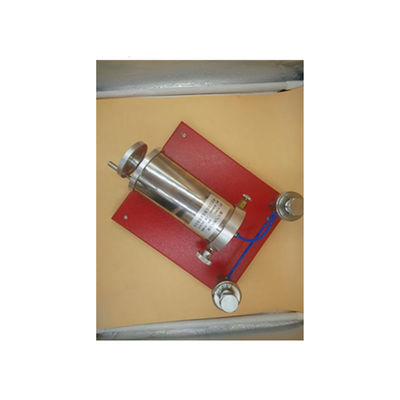

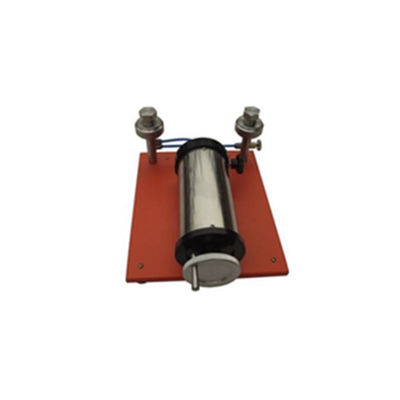

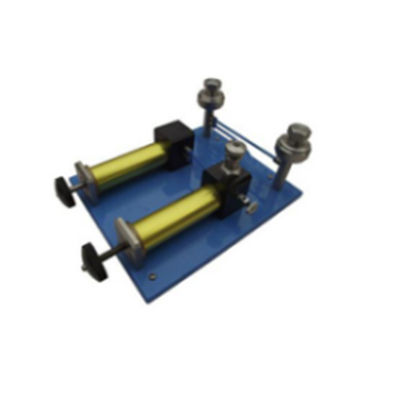

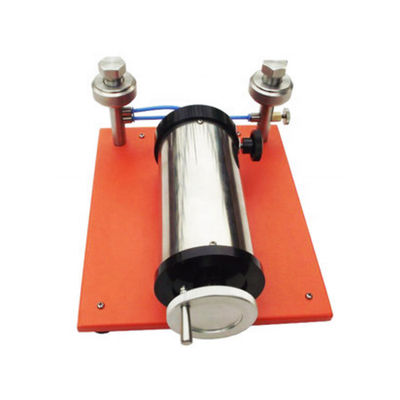

Micro Pneumatic Pressure Calibrator
Description : Micro Pneumatic Pressure Calibrator
Micro-pressure air pressure calibrator is used for calibrate micro (differential) pressure transmitter, micro-pressure sensors, micro-film and micro-pressure gauges and other instruments. In the digital pressure calibration system, which can provide a stable and pressure changes can be controlled sufficiently small micro-pressure source. Simple operation, easy maintenance buck stable by the external temperature is small, the minimum controllable adjustment fineness, excellent sealing performance, near zero leakage.
Application:
Offer pressure when calibrate (differential ) pressure transmitter, precision pressure gauge, pressure gauge and other pressure instruments.
Parameter:
| Type | Micro pressure | Low pressure |
|
Picture |
|
|
| Name | Micro pressure calibrator | Micro pressure calibrator |
| Model | XY-2001A | XY-2001B |
| Work Condition | On site or Laboratory | On site or laboratory |
| Pressure Range | -40~40kpa | -100~600KPa |
| Fine Adjustment | 0.01Pa | 0.01Pa |
| Medium | Non-polluting, non-corrosive gas | Non-polluting, non-corrosive gas |
|
Features |
Reliable, save effort and buck stable, easy to carry Easy to maintain, difficult to leak, |
Save effort, high efficiency pressure creation, durability, difficult to leak |
| Connection | M20*1.5(2pcs) | M20*1.5(2pcs) |
| Volume | 270mm×210mm×100mm | 300mm×220mm×120mm |
| Weight | 2.6Kg | 3.3Kg |
| Accessories |
Certificate*1, warranty card*1, manual*1, Wearing parts (several) |
Certificate*1, warranty card*1, manual *1, Wearing parts (several) |
| Warranty | 12 months | 12 months |
Package:
