| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | XY-805 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $985 ~ $1150/pc |
| Packaging Details: | Water Pressure Balance Load Cell Test Equipment Standard export carton packing or can customized |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Pressure Range: | 40~40kPa | Accuracy: | 0.05 Level |
|---|---|---|---|
| Medium: | Clean And Free Of Air Or Nitrogen | Connection: | Hose Plug |
| Weight: | 4.5KGS | Adjusting Sensitivity: | Min 1pa |
Micro Differential Pressure Gauge Calibration and Calibrator Equipment Machine
Description
This Micro differential pressure gauge calibrator is composed of the miro generation pump ,standard gauage and the differential gauge bracket.It use high-quality stainless steel and aluminum alloy materials and thge seals and connectors imported from Germany. High-precision standard device to ensure accurate calibration .
Easy to operate, stable lifting and lowering pressure, small adjustment fineness, easy maintenance, not easy to leak, with the highest safety performance in the industry, and widely used in power, petrochemical, metallurgy, transportation, pharmaceutical, metrology, education, scientific research and other fields

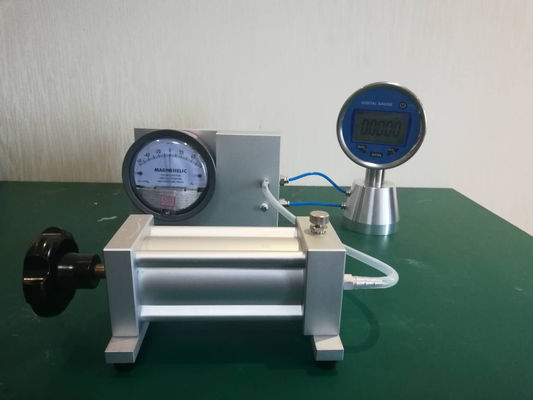

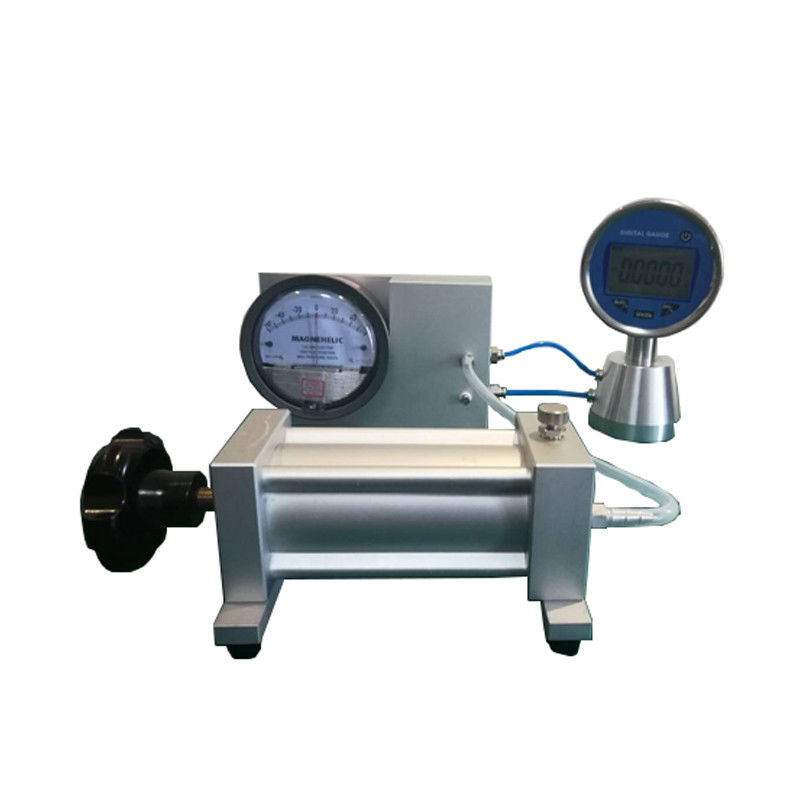

Detailed Images
Specification
| Micro Differential Pressure Gauge Calibration and Calibrator Equipment Machine | |
| Model | LF-805 |
| Pressure range | 40~40kPa |
| Accuracy | 0.05 level |
| Medium | clean and free of air or nitrogen |
| Connection | Hose plug |
| Components | pressure pump + digital standard gauge + differential pressure gauge mounting bracket |
| Weights | Around 4.5kg |
| Adjusting sensitivity | min 1pa |
Features
1. Full range pressure calibration, equipped with high-precision digital standard gauge.
2. Small dimension,convient to check various pressure instruments on site or in the measuring room.
3. Portable metal shell, strong anti-interference, strong impact resistance.
4.Open structure, all parts and pipelines are combined on the front for easy maintenance.
5.Large capacity chamber, wide-stroke screw-type pressure generate pump, easy to make pressure, and high pressure speed.
Selection Guide
| LF-805 | Code | Accuracy | ||
| A | 0.05 | |||
| B | 0.1 | |||
| C | 0.2 | |||
| D | Flange | |||
| E | Special Accuracy | |||
| Code | Connection mode | |||
| 1 | M20*1.5 | |||
| 2 | 1/2NPT | |||
| 3 | M14*1.5 | |||
| 4 | G1/2 | |||
| 5 | Special connector | |||
| Code | Pressure type | |||
| G | Gage pressure | |||
| D | Differential pressure | |||
| A | Absolute pressure | |||
| YK-100 | A | 1 | G | |
