Name: Hydraulic liquid pressure gauge calibrator pressure calibration pump
Brand: Zhejiang Nancon Industrial Technology Co., Ltd.
SKU: XY-2006B
Price: Negotiable USD
Availability: InStock

Home Products Pressure Calibrator

Hydraulic liquid pressure gauge calibrator pressure calibration pump

Product Details:

Place of Origin:	Made In China
Brand Name:	SHELOK
Certification:	CE
Model Number:	XY-2006B

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	$840 ~ $980/pc
Packaging Details:	Water Pressure Balance Load Cell Test Equipment Standard export carton packing or can customized
Delivery Time:	3 ~ 7 Working Days After Payment
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	10000pcs/Month

Contact Now

Detailed Product Description

Item:	Liquid Pressure Gauge Calibrator Pressure Calibration Pump	Pressure Range:	-0.095~0~60MPa
Work Temperature:	-20 To 50℃	Dimension:	290 Mm * 150 Mm * 110 Mm
Weight:	3.5kg	Application:	Produce Pressure
Medium:	Pure Water Or 46# Hydraulic Oil	Thread:	M20*1.5(2PCS)
Min Adjustment:	10KPa	OEM:	Yes

Product Description

Description of hydraulic liquid pressure gauge calibrator pressure calibration pump:

XY-2006A Portable air pressure source manually is at present our country in metrological verification or check in the industry,Widespread adoption of dead weight tester or desktop pressure source,electric pressure calibration machine, etc,These products are generally large,Go to the scene is not convenient to carry,but portable products abroad use pliers type.Pressurized laborious,complex operation Combined with the above reasons,My company recently developed a easy to carry, simple structure and easy operation Portable air pressure source manually XY-2006A.

Specification

Specs of hydraulic liquid pressure gauge calibrator pressure calibration pump:

pressure range (0.1 ~ 0 ~ 60) MPa
Size: 270 mm * 150 mm * 150 mm
Adjust the fineness of: 0.1 kPa
Weight:less than 2kg.

Features of hydraulic liquid pressure gauge calibrator pressure calibration pump:

Simple structure, easy operation.

Easy to carry, not easy to leak, maintenance is convenient.

Not afraid dirty, not afraid.

Can produce negative pressure (0.1 ~ 6 mpa)

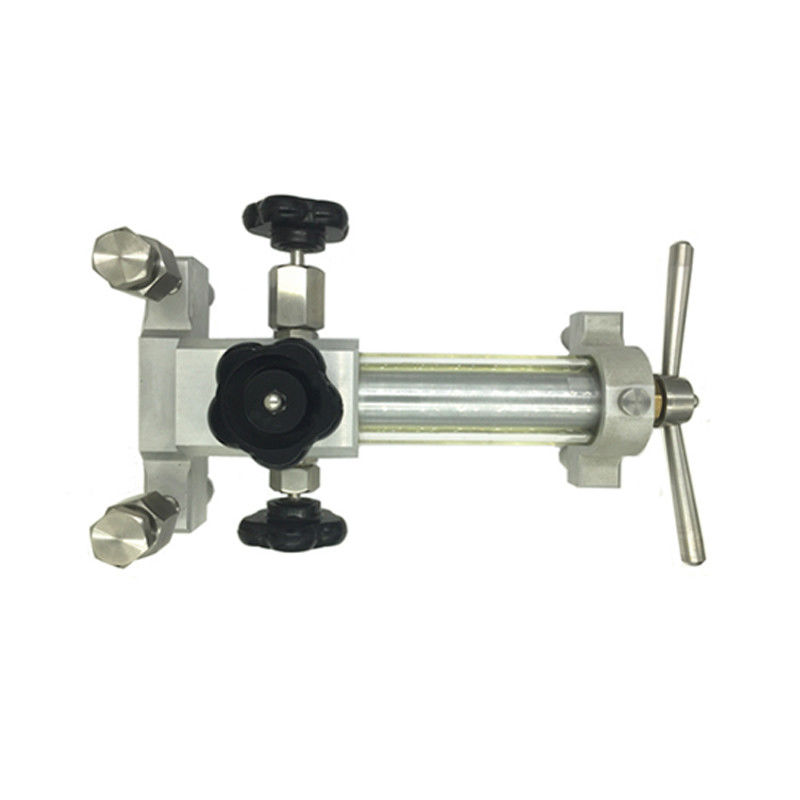

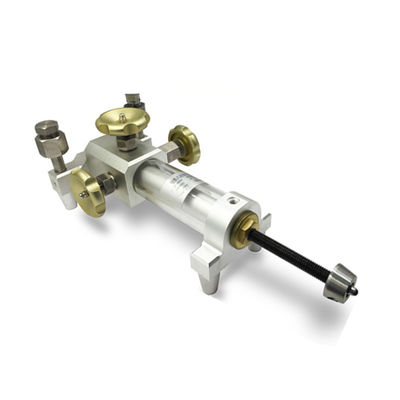

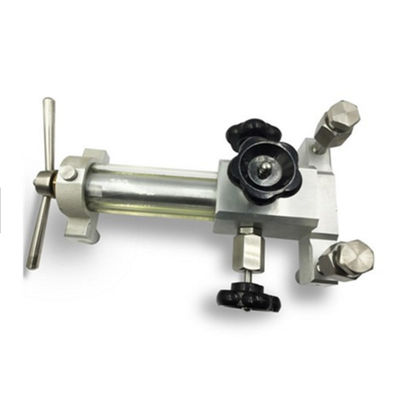

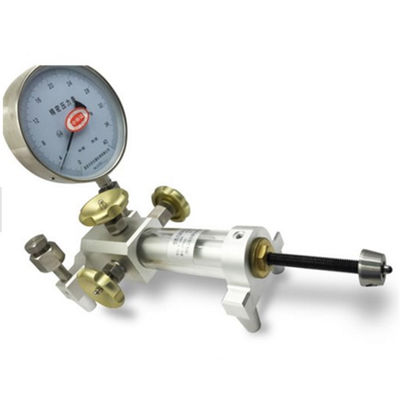

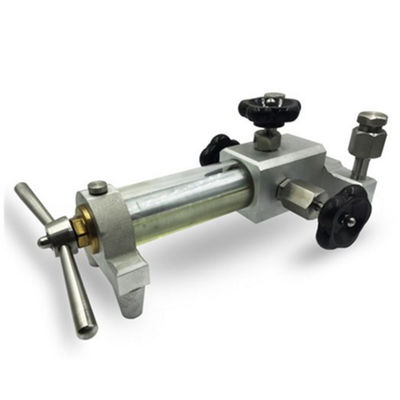

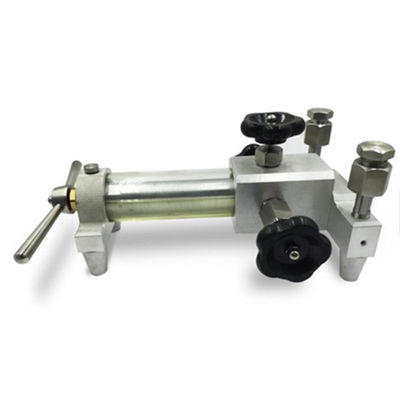

Detailed Images

Range Optional
