| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | XYSB-60 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $635 ~ $671/pc |
| Packaging Details: | Water Pressure Balance Load Cell Test Equipment Standard export carton packing or can customized |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Product Name: | High Pressure Hydraulic Oil Hand Pump | Pressure Range: | 0-25Mpa,0-60Mpa |
|---|---|---|---|
| Working Temperature: | 0~40°C | Relative Humidity: | ≤100% |
| Weight: | ≤0.8Kg | Table Joint Thread: | M14 X 1.5 Internal Thread (exports By 1/4 NPT) |
| High Pressure Hose Joint Thread: | M20 X 1.5 Internal Thread (exports By 1/2 NPT) |

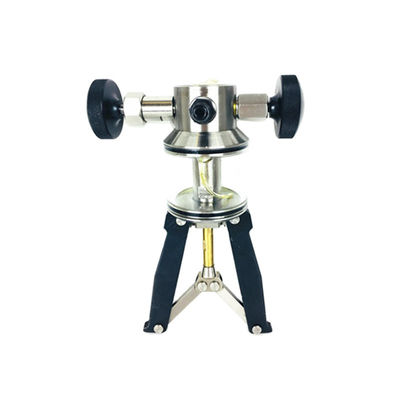

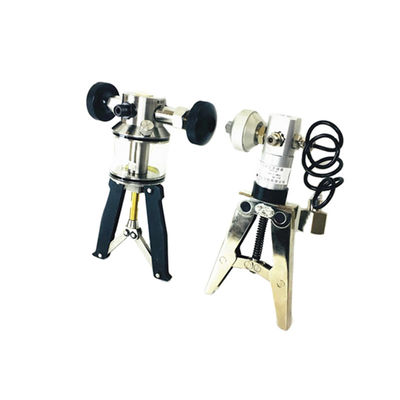

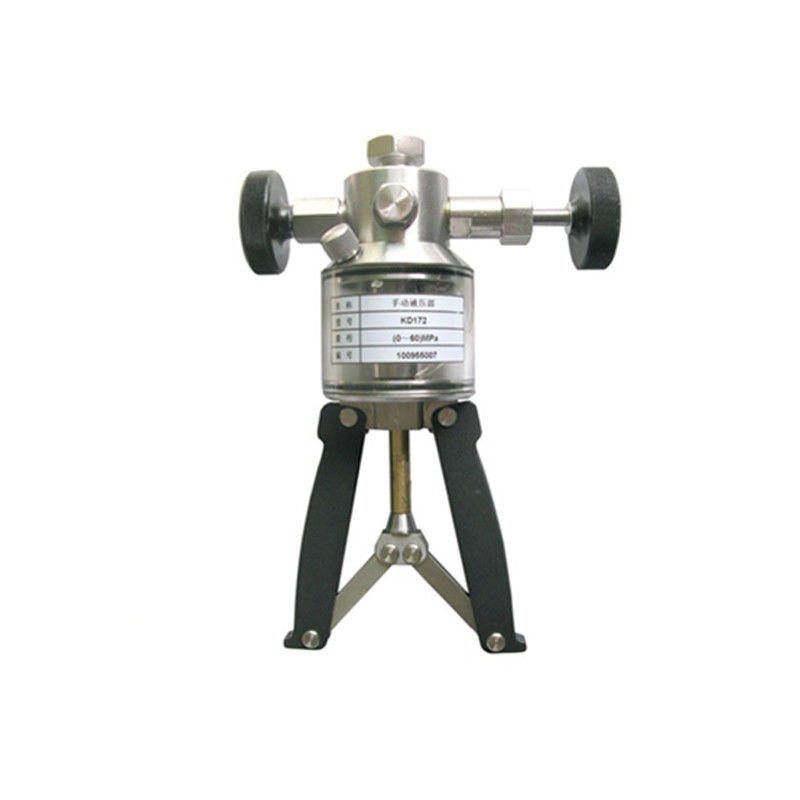

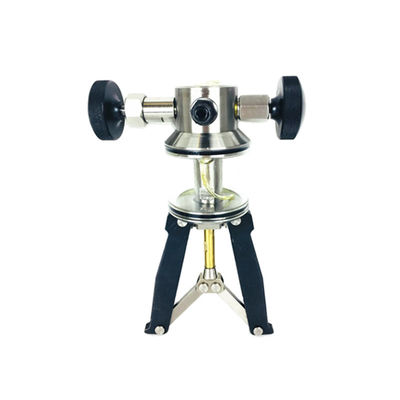

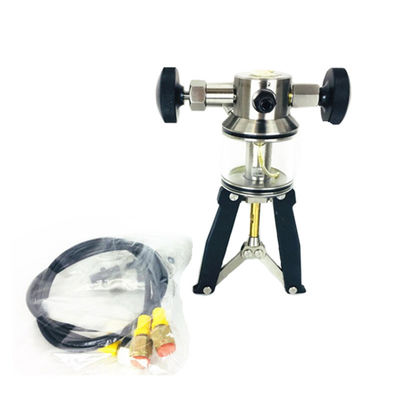

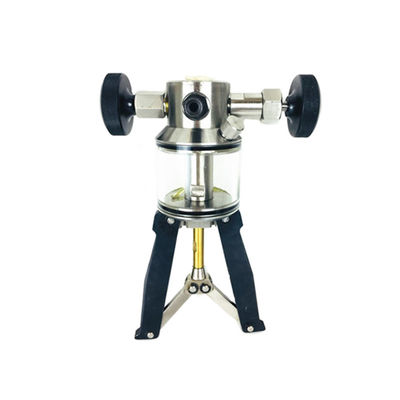

High pressure hydraulic oil hand pump calibrattion is a portable pressure pump.For field installation of instrument calibration in the industrial process and control of indoor use all kinds of pressure gauges.Can also provide pressure source correction table for pressure measuring instrument manufacturer.All kinds of pressure transmitter within every 60 M pa,Pressure sensor and all kinds of pressure gauges Check all available hand pressure pump.
·Portable, light weight,,Suppression of light.
·Easy to use Structural design pressure fine-tuning hand,Rotate the fine-tuning hand can easily change the output pressure.Also comes with a high-pressure hose connection is timing ,Meter connector connect pressure gauge .
·Hand pressure pump is the handle, the piston rod. Through gas, pump cover, put the oil hand, fine-tuning hand, form joint, rotation.
Manual of high pressure hydraulic oil hand pump calibration:
1.Turn on the oil hole screw and pour diisooctyl sebacate or transformer oil into the cup to 1/2 of the cup height.
2. Screw on the oil hole screw, connect the pressure gauge calibrated with output connector according to thread and output connector, or connect via high pressure hose.
3. Pressure fine-tuning rotates counterclockwise by 10mm (Max 15mm);
4. Hold the pressurized handle repeatedly,When there is no bubble on the oil surface, close the relief valve counterclockwise.
5.Continue holding pressurized handle ,until the pressure up to the pressure required.(in the case of the pressure is higher and laborious,can be with the aid of pressure fine-tuning, fine-tuning pressure range is about 10mpa)
Shelok considers itself not only a manufacture but more conprehensively a provider of industry specific customer-oriented solutions.Our profound understanding of product application and strong technical backgrounds ensure you the best product solution and achieve a greater success.
Xi'an Shelok Instrument Technology co.,ltd is a professional R&D center and manufacture of measuring instruments.And here's a variety of products for you choice: pressure transmitters,temperature transmitters,flow transmitters,weighing instruments and so on.Our products have been made by advanced technology, with high quality, fast delivery period, which have attracted so many domestic and foreign customers.
Q:How long will you reply me?
A:We will contact you as soon as possible but within 12 hours.
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.
Q:How do you control your quality ?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).
Q: What certificates do you have ?
A:ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.
Q:Could I visit your factory?
A:Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q:can you provide OEM & Customized service?
A:Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
