| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | XY-6/XY-60 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $365 ~ $965/pc |
| Packaging Details: | Water Pressure Balance Load Cell Test Equipment Standard export carton packing or can customized |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Product Name: | Water Hydraulic Pressure Calibration Machine | Pressure Range: | -0.082-6MPa,0-60MPa |
|---|---|---|---|
| Medium: | Transformer Oil,medicinal Castor Oil | Ferrule Secured Terminations: | M20*1.5(two) |
| Dimension: | 24*12*13mm | Weight: | 16kg |
| Type: | Pressure Gauge Calibration Machine | Fineness Of Regulation: | 10Pa |

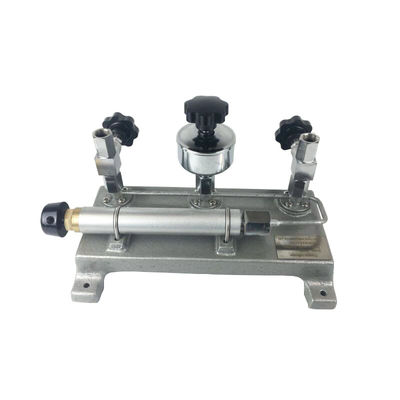

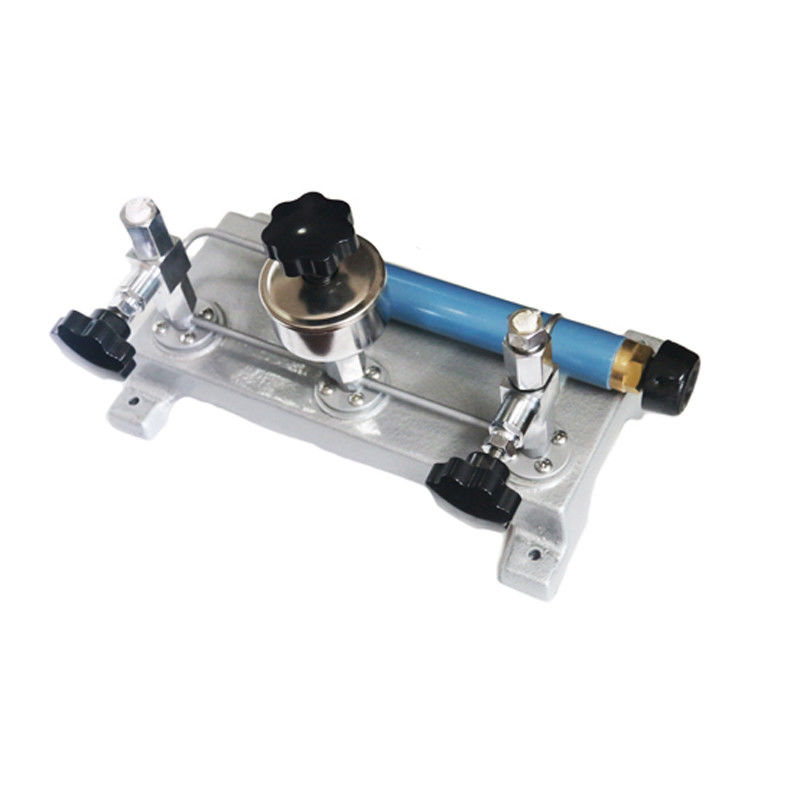

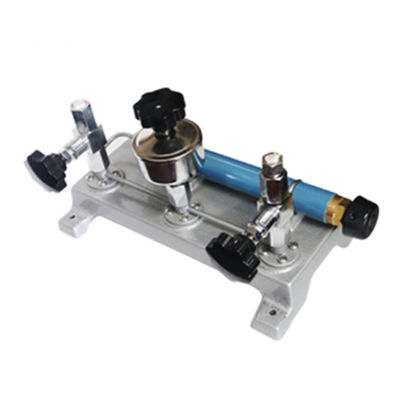

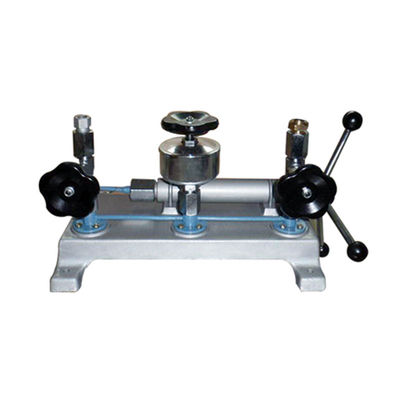

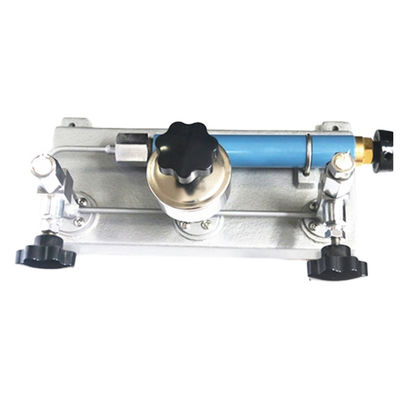

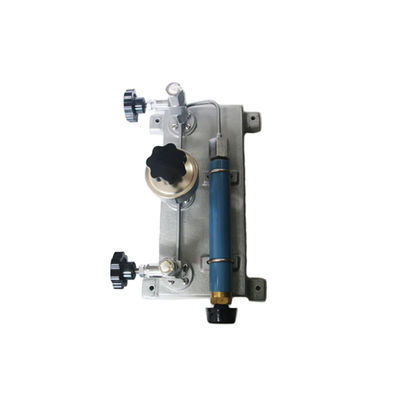

Water hydraulic weight tester calibration calibration machine is also called a pressure gauge calibrator or a pressure gauge calibration pump. The principle of the pressure gauge calibration machine is that the piston rod movement pressure is increased to achieve the purpose of pressurization.
The general pressure gauge (with an accuracy of 1.6 or 2.5) can be tested in a laboratory or in a metering room with a precision pressure gauge (with a precision of up to 0.25). Pressure gauge interface is generally M20 × 1.5 male thread, pressure gauge checker interface is M20 × 1.5 (with M14 × 1.5)
 |
| ·Stable,labor-saving,steady boost-buck ·Easy to carry,free to maintenance ·Avoid maintenance |
1. The water hydraulic weight tester calibration calibration machine should be placed on an easy-to-operate workbench and must be kept horizontal.
2. The working environment temperature of the checker is +20±10°C. The surrounding air must not contain corrosive gas.
3. The water hydraulic weight tester calibration calibration machine must not be subject to vibration; the rubber pad must be laid on the worktable.
4. Before use, first clean the checker tube with gasoline, then fill the oil cup with the pressure medium. Rotate the hand-cranked screw pump's handwheel to check if the oil path is smooth; if there is no problem, you can install a precision pressure gauge and a pressure gauge.
1.When checking the pressure gauge:
(1) Open the oil cup valve and rotate the handwheel left to fill the cylinder of the hand pump with oil.
(2) Close the oil cup valve, open the valve, and then turn the handwheel to the right to compress the oil so that the oil pressure is used for the pressure gauge. The inspection can be performed according to the indications of the two tables.
2.When checking the vacuum gauge:
(1) Clear the internal pressure transmitter of the checker.
(2) Close the valve, open the oil cup valve, and screw the hand pump screw all the way into the cylinder.
(3) Close the valve, open the valve, and unscrew the manual pump screw to form a vacuum. If the vacuum is not reached once, then close the valve, open the valve, and screw in the manual pump screw. Then close the valve and open the valve. Rotate the hand-pumped screw so that it is repeatedly screwed in and out several times until the required vacuum is reached.
Shelok considers itself not only a manufacture but more conprehensively a provider of industry specific customer-oriented solutions.Our profound understanding of product application and strong technical backgrounds ensure you the best product solution and achieve a greater success.
Xi'an Shelok Instrument Technology co.,ltd is a professional R&D center and manufacture of measuring instruments.And here's a variety of products for you choice: pressure transmitters,temperature transmitters,flow transmitters,weighing instruments and so on.Our products have been made by advanced technology, with high quality, fast delivery period, which have attracted so many domestic and foreign customers.
Q:How long will you reply me?
A:We will contact you as soon as possible but within 12 hours.
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.
Q:How do you control your quality ?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).
Q: What certificates do you have ?
A:ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.
Q:Could I visit your factory?
A:Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q:can you provide OEM & Customized service?
A:Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
