| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | DK Series |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $1200 ~ $2000/pc |
| Packaging Details: | Water Pressure Balance Load Cell Test Equipment Standard export carton packing or can customized |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Pressure Range: | 0-100mpa | Accuracy: | 0.05%, 0.02% |
|---|---|---|---|
| Connection: | M20*1.5, 1/2NPT | Product Name: | Factory Direct Pressure Gauge Calibration Device |
| Weight: | 40-90kg | Media: | Oil |

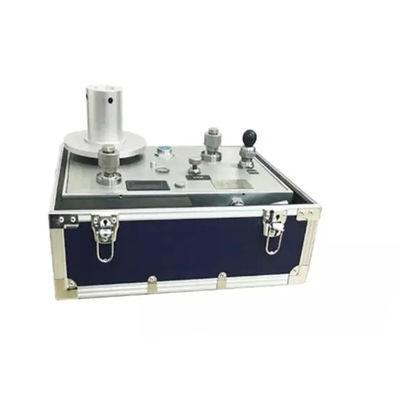

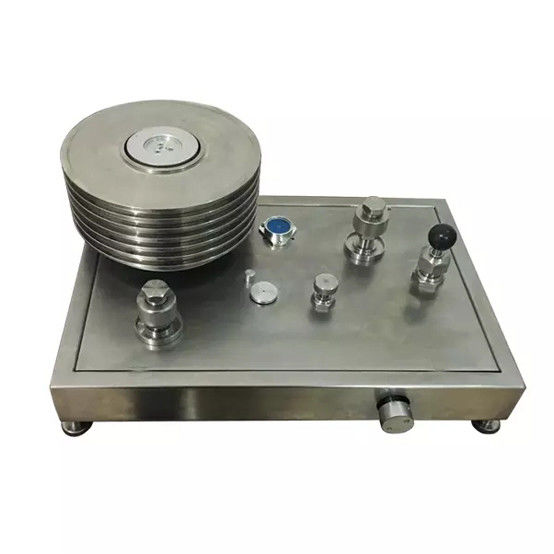

DK series dead weight tester is designed on the base of YS series and KY Series dead weight tester, with structural optimization, super wear-resistant and perfect reliability. The highest process of DK dead weight tester is 0.005%; The max pressure range is 160MPa. DK dead weight tester adopt modular structure, a platform can be installed in different piston systems, achieve economic and practical purposes.
Features of Factory direct pressure gauge calibration device
1,Modularity: Piston and pressure generator system is fully modular structure, the various modules can implement a single function or a combination of work
2,Stability: hydraulic piston using low weights to ensure high reliability and stability.
3, Interchangeability: - any piston - sleeve unit
4,Piston - sleeve unit: made of tungsten carbide materials; other parts made of high quality austenitic stainless steel, which can effectively prevent deformation. There are six ranges for choose
5,Weight: Adopts demagnetization quality austenitic stainless steel
6,Rotational speed: in free rotation state, the rotational speed is related to the time, e.g. 60MPa product, after 30 minutes, the rotational speed is from the initial speed of the drops 33.0RPM to 24.8rpm. This also shows that the piston - sleeve gap pressure distribution is uniform.
7,Effective area: under normal atmospheric pressure and 20 ℃ conditions, the piston - the average effective area of the cartridge unit, and pressure deformation coefficient can be measured by the reference gauge
8,Piston descending speed: in the range of 60MPa case, the relationship between the piston speed and the pressure drop is shown below. In the range of 100MPa case for all of the components, the rate of decline and the effective piston area of pressure become a linear relationship, the maximum rate of decline is less than 5μm/s. Maximum effective area changes is less than 0.0006mm2.
Shelok considers itself not only a manufacture but more conprehensively a provider of industry specific customer-oriented solutions.Our profound understanding of product application and strong technical backgrounds ensure you the best product solution and achieve a greater success.
Xi'an Shelok Instrument Technology co.,ltd is a professional R&D center and manufacture of measuring instruments.And here's a variety of products for you choice: pressure transmitters,temperature transmitters,flow transmitters,weighing instruments and so on.Our products have been made by advanced technology, with high quality, fast delivery period, which have attracted so many domestic and foreign customers.
PACKAGE:
Standard export carton packing.
DELIVERY TIME:
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
Q:How long will you reply me?
A:We will contact you as soon as possible but within 12 hours
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.
Q:How do you control your quality ?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).
Q: What certificates do you have ?
A:ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.
Q:Could I visit your factory?
A:Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q:can you provide OEM & Customized service?
A:Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
