| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | SR32 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $134~$220 |
| Packaging Details: | Air Pressure Relief Valve, Back Pressure Regulator, Pressure Reducing Valves Standard export package |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Max Input Pressure: | 6000PSI | Max Output Pressure: | 0-3000PSI |
|---|---|---|---|
| Safety Pressure: | 1.5 Times The Maximum Output Pressure | Thread: | NPT "1/4 (F) |
| Applicable Temperature: | 40℃~74℃(-40℉~165℉) | CV: | 0.06 |
| Internal Leak Rate: | 2 X 10-8atm.cc/sec He | Body Material: | 316L |
| Seat Material: | PCTFE, Vespel | Product Name: | Oxygen Gas Air Back Pressure Regulator Valve |

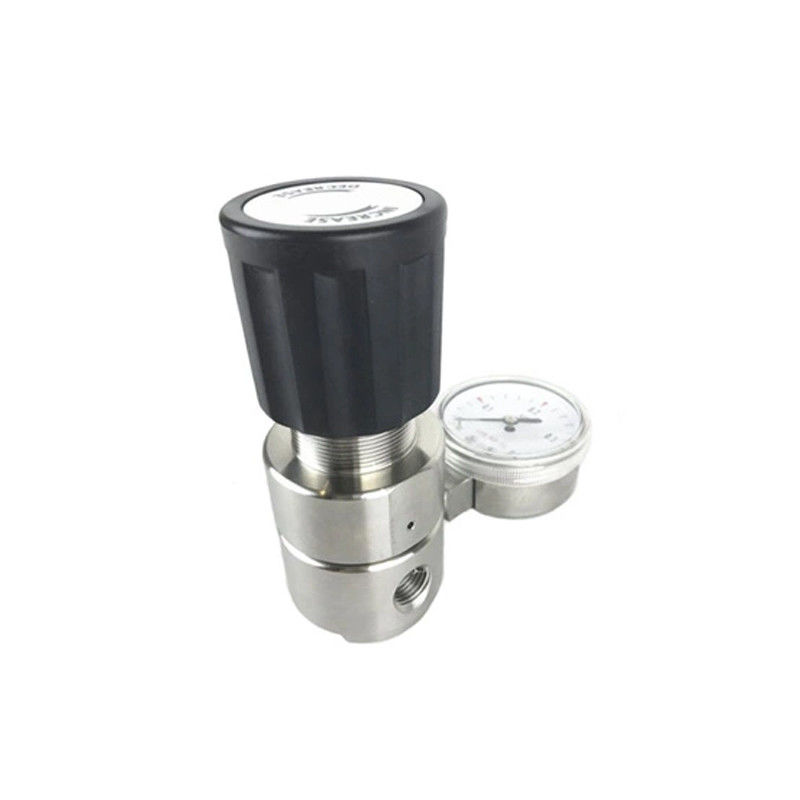

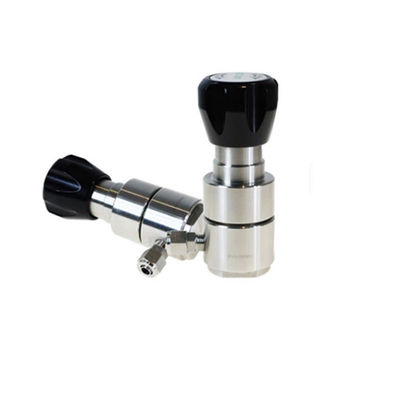

High pressure regulator with piston type pressure reducing structure, which is mainly applied for high input pressure demand, the maximum input pressure is 6000 psig.
Max pressure range: 6000PSI
Output pressure: 0-3000PSI
Piston pressure reducing structure
Parent interface thread: NPT "1/4 (F)
Safety pressure: 1.5 times the maximum output pressure
Applicable temperature: 40℃~74℃(-40℉~165℉)
Internal leak rate: 2 x 10-8atm.cc/sec He
CV: 0.06
Weight: 0.9 kg (2.0 lbs)
Body: 316L
Seat: PCTFE, Vespel
Piston: 316L
O-rings: Viton
Gas Analysis Test
Laboratory
Petrochemical industry
Power Plant Equipment
