| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | QGD |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $37~$64 |
| Packaging Details: | Air Pressure Relief Valve, Back Pressure Regulator, Pressure Reducing Valves Standard export package |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Product Name: | Electro Pneumatic Positioner Pressure Regulator | Air Source Pressure: | 0.14~1MPa |
|---|---|---|---|
| Output Pressure: | 0~350KPa,10~800KPa | Zero Point: | 0.5%(output Full Range) |
| Working Temperature: | 5~50℃ | Media: | Clean Gas Without Water,dust,oil And Other Impurity |
| Air Consumption: | ≤90L/min | Output Interface: | M10*1 Female Thread |
| Weight: | 0.45,0.5,1.5KG | Warranty: | 1 Year |
Description
The working principle of QGD electro pneumatic positioner is force-balance principle,when turn the knob,there will be different pressure on output terminal,and the pressure on the diaphragm will balance with the spring.
Specification
| Model | Air source pressure | Output pressure | Weight | H | A | B | Connection |
| OGD-101-A | 140KPa(0.14MPa) | 0~60KPa | 0.45Kg | 115MM | 50MM | 50MM | M10*1Female thread |
| OGD-101 | 140KPa(0.14MPa) | 0~100KPa | 0.45Kg | 115MM | 50MM | 50MM | M10*1Female thread |
| OGD-100 | 140KPa(0.14MPa) | 0~100KPa | 0.45Kg | 180MM | 70MM | 70MM | M10*1Female thread |
| OGD-200 | 350KPa(0.35MPa) | 0~250KPa | 0.45Kg | 180MM | 70MM | 70MM | M10*1Female thread |
| OGD-300 | 500KPa(0.7MPa) | 0~350KPa | 0.45Kg | 180MM | 70MM | 70MM | M10*1Female thread |
| OGD-500 | 1000KPa(1.0MPa) | 10~500KPa | 0.5Kg | 110MM | 53MM | 53MM | 1/4NPTFemale thread |
| OGD-800 | 1000KPa(1.0MPa) | 10~800KPa | 0.5Kg | 110MM | 53MM | 53MM | 1/4NPTFemale thread |
Applications
QGD electro pneumatic positioner is actually pressure regulator and stabilizer.It can be used for automatic pneumatic devices in laboratory to set pressure accurately and adjust the tension.

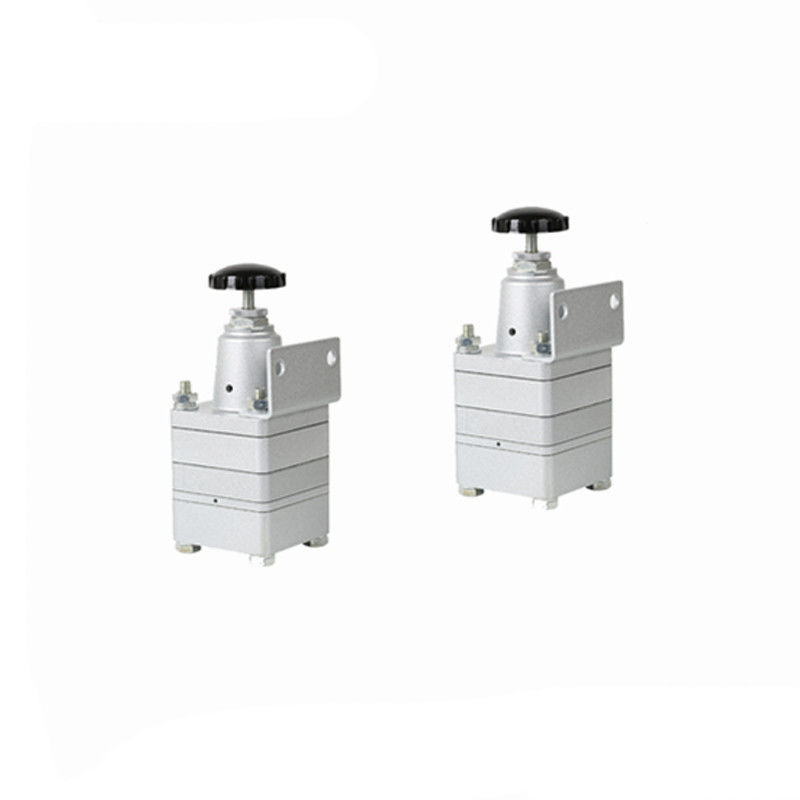

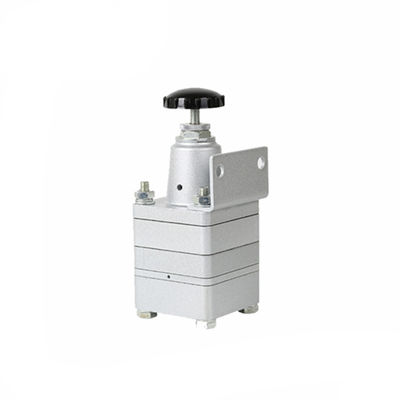

Detailed Images
