| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | YD32 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $195~$258 |
| Packaging Details: | Air Pressure Relief Valve, Back Pressure Regulator, Pressure Reducing Valves Standard export package |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Standard Or Nonstandard: | Standard | Measure Range: | 0.0 - 14.0 PH |
|---|---|---|---|
| Accuracy: | ±0.1 PH (20°C), ±0.2 PH | Applicable Temperature: | -40℉~+165℉(-40℃~+74℃) |
| Label: | Customized Available | Package Size: | 25cm*20cm*18cm |
| CV Value: | 1.0 | Weight: | 2..3kg |

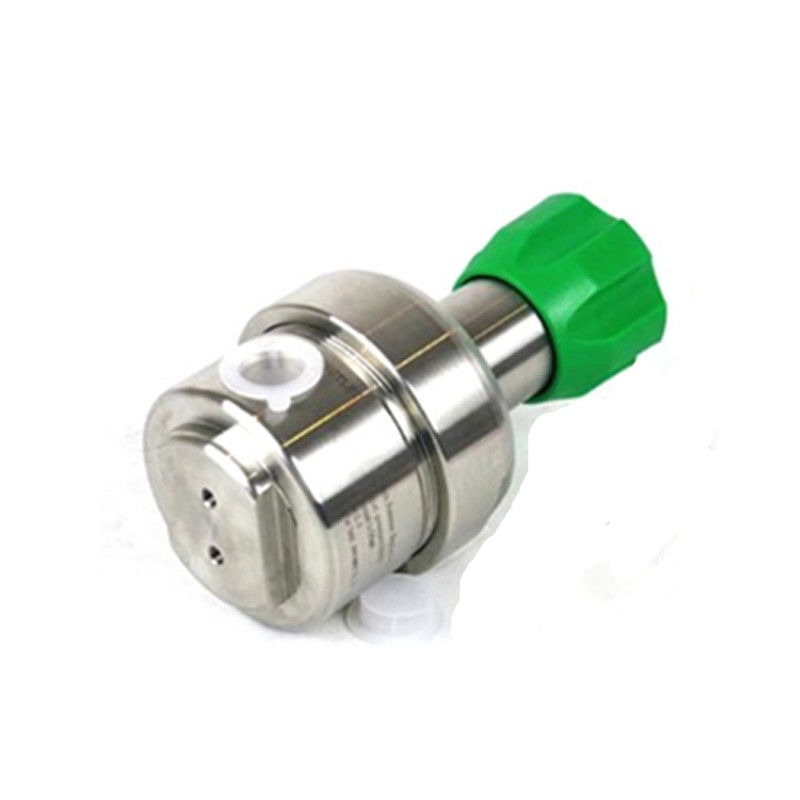

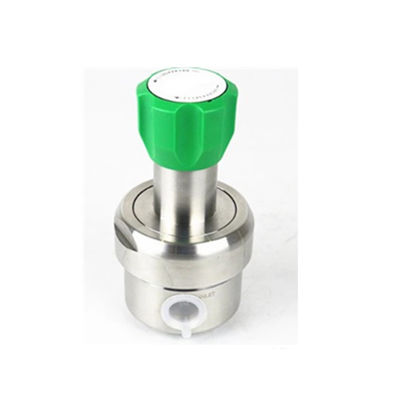

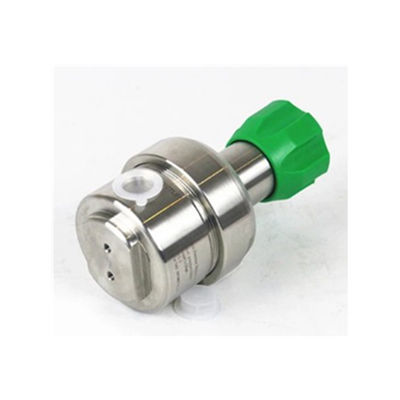

| Product Name: | Stainless Steel Back Pressure Regulator For Gas Water |
This kind of back pressure regulator is with single-stage diaphragm plunger structure, stainless steel diaphragm pressure transmission, the output pressure is stable, suitable for pure gases, standard gases, corrosive gases, liquids and other medium.
1. Controlled pressure: 0-6000psi
2. Safety test pressure: 1.5 times max inlet pressure
3. Applicable temperature: -40℉~+165℉(-40℃~+74℃)
4. Leak rate: 2x10-8 atm cc/sec He
5. CV value: 1.0
6. Thread connection type: 1/4 or 1/2fnpt
7. Weight: About 2.3 kg
8. Package size: 25cm*20cm*18cm
9. Material: Stainless steel.
10. Seals material: PCTFE or PEEK
1. Single stage type Plunger structure
2. Maternal and diaphragm use hard seal form
3. The internal structure easy to purge and with filter
4. Can use panel or wall mounting
Established with 10 million capital in 2015, Xi'an Shelok Technology Instrument Co., Ltd. is a professional designer and manufacturer that engaged in the fields of pressure measurement instruments. We specializing in developing high precision pressure transmitter, pressure gauges, pressure calibration pump and dead weight tester,level transmitter, flow meter etc., widely used in chemical, petroleum, paper, electricity, city gas, environmental protection, water treatment and other fields.
Standard export carton packing.
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
