| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | MF5612/MF5619 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD395 ~ USD510/pc |
| Packaging Details: | RS485 Output Mass Digital Air, Gas Flow Sensor Standard export carton packing or can customized |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Product Name: | Oxygen Nitrogen Argon Thermal Gas Mass Air Flow Meter Sensor Price | Norminal Diameter: | 12,19mm |
|---|---|---|---|
| Accuracy: | ±(1.5+0.5FS)% | Repeatability: | ±0.5% |
| Turn-down Ratio: | 30:1 | Humidity: | <95% RH (No Icing Or Condensation) |
| Output: | 4 ~ 20mA; RS485; Pulse | Connection: | 1/2NPT,3/4NPT |
| Maximum Working Pressure: | 1.0MPa | Operating Temperature: | -10~55℃ |
DN12 DN19 oxygen nitrogen argon thermal gas mass air flow meter sensor price
Description
MF5600 Series Mass Flow Meters are specially designed for applications where the display is often required to be placed separated away from the flow channel or meters body, such as the oxgen metering system in a hospital. These meters are opted with the standard industrial user interfaces (RS485 and 4~20mA), and user defined alarm functions for better monitoring or control over the network. The off-the-shelf products (MF5612 and MF5619) are for gas flow measurement of 0 ~ 300 SLPM and 0 ~ 800 SLPM respectively.

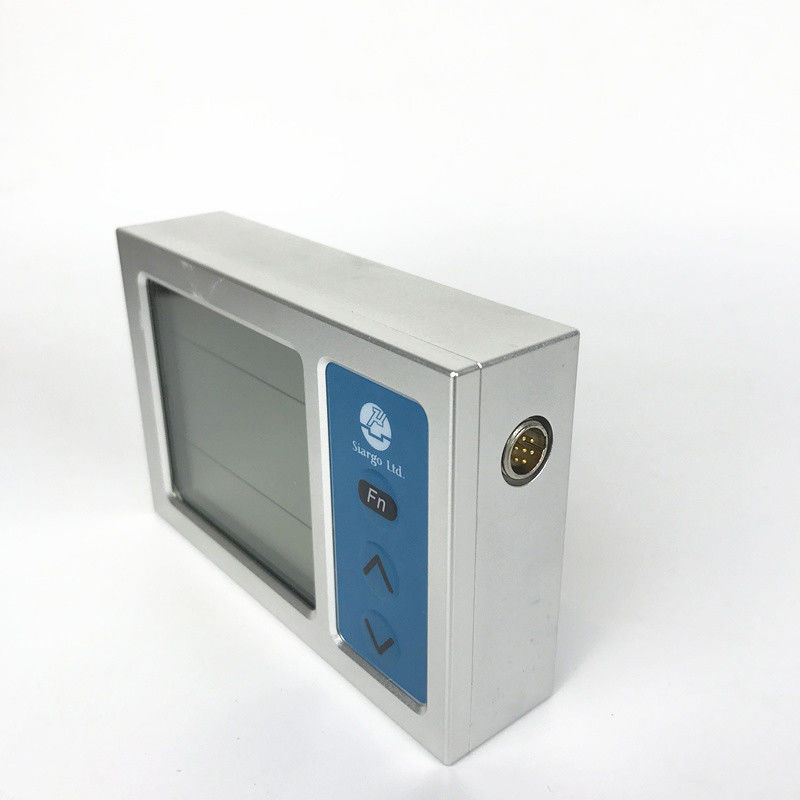

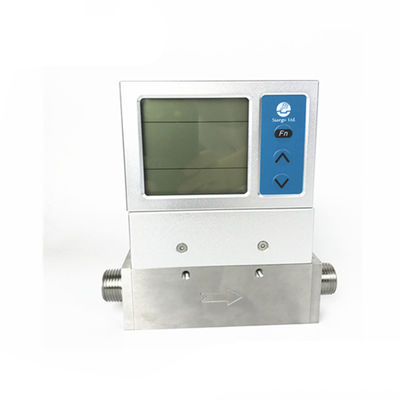

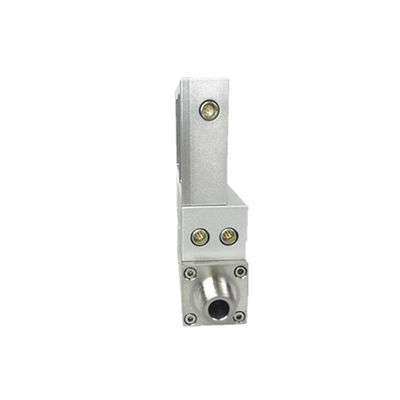

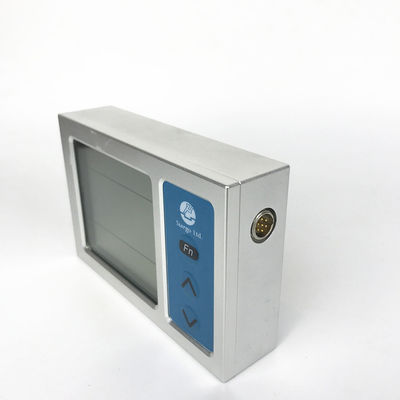

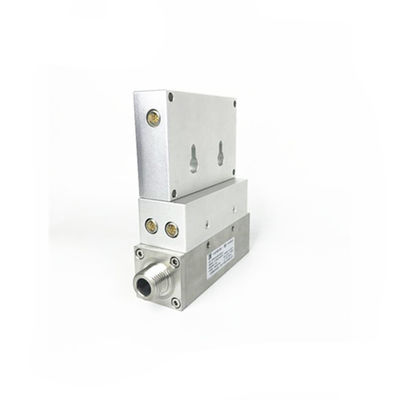

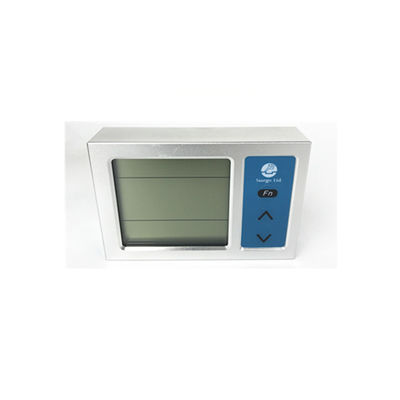

Detailed Images
Features
Detachable display that can be placed away from the flow channel via a specially designed cable.
Standard 4~20mA or RS485 for remote data communication
Hygienic stainless steel body ready for oxygen metering
Extended rangeability for accurate flow monitoring and control
Instrinsic safe enclosure
Specification o
| Parameter | MF5612 | MF5619 | Unit |
| DN | 12 | 19 | mm |
| Max. Flowrate | 200, 300 | 600, 800 | SLPM |
| Min. Flowrate | 0.3 | 0.8 | SLPM |
| Turn-down Ratio | 30:1 | ||
| Accuracy | ±(1.5+0.5FS) | % | |
| Repeatability | ±0.5 | % | |
| Max. Pressure | 1.0 | Mpa | |
| Operating Temp. | -10 ~ 55 | ℃ | |
| Humidity | <95% RH (No Icing or Condensation) | ||
| Power Supply | 12 ~ 24V DC 50mA | ||
| Output | 4 ~ 20mA; RS485; Pulse | ||
| Mechanical Connection | NPT 1/2 | NPT 3/4 | |
| Calibration | Air @ 20℃, 101.325 kPa | ||
Dimension
Selection guide
Accessory
