| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | wss |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $25~$95/pc |
| Packaging Details: | Factory High Quality Digital Temperature and Humidity Data Logger Standard export carton packing or can customized |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Product Name: | Electric Contact Temperature Controller Temperture Gauge | Accuracy: | 1.0, 1.5class |
|---|---|---|---|
| Range: | (-80~500℃) -80~40℃...0~500℃ (option) | Response Time: | <40s |
| Feature: | Temperature Transmitter, Temperature Controller Temperture Gauge | Protection: | IP55 |
| Dial Siza: | 60mm,100mm,150mm | Interface: | M27*2 Clip Cover Thread ,Fix Thread 1/2" Or 1/4"and So On |

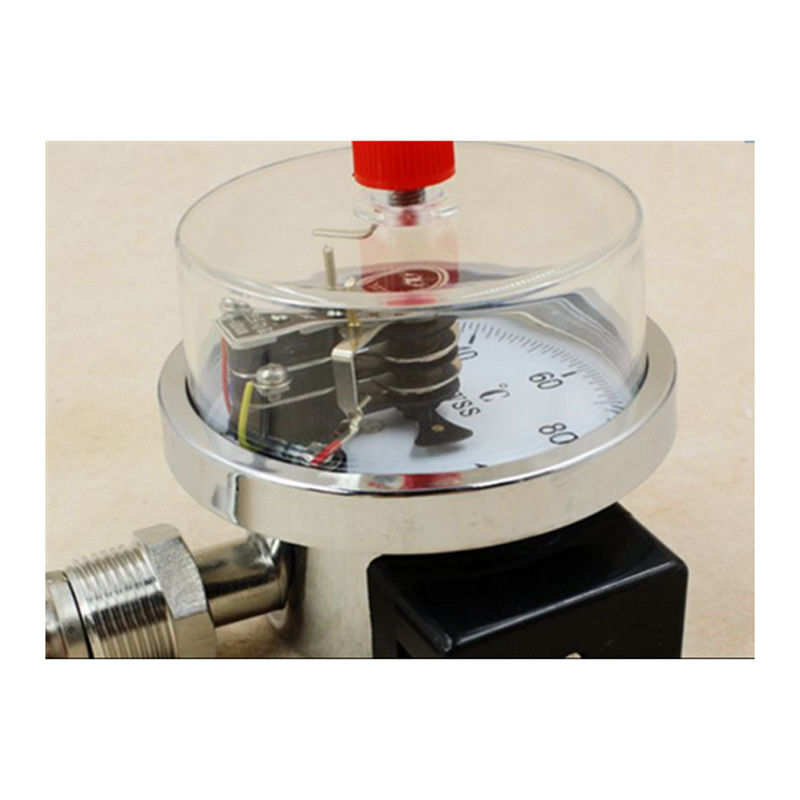

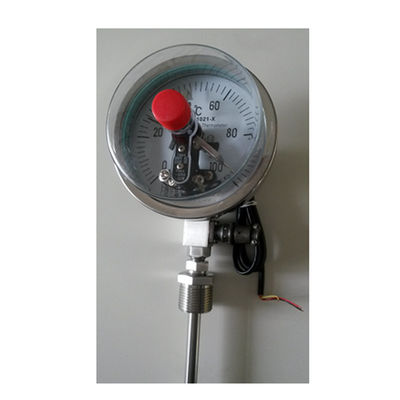

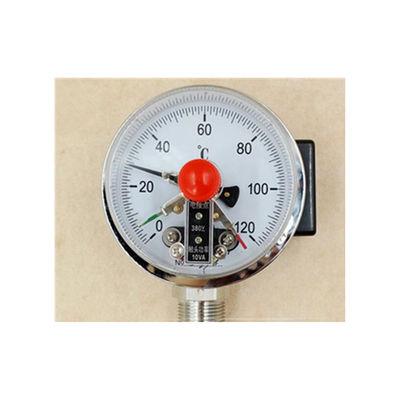

Electric contact temperature controller temperture gauge:
Electric contact temperature controller temperture gauge used in the production site to automatically control the temperature and alarm. Can be directly measured in a variety of production processes in the range of -80 ℃ - +500 ℃ liquid, steam and gas medium temperature.
Electric contact temperature controller temperture gauge:
Product performance standards of Electric contact temperature controller temperture gauge::JB / T8803-1998/GB3836-83
Nominal diameter of the dial: 100
Accuracy class: 1.0,1.5
Thermal response time: ≤ 40s
Protection class: IP55
Normal working conditions: temperature -25- +55 ℃ relative humidity ≤ 85%.
Setpoint error: Setpoint error should not exceed 1.5 times the basic error limit.
Switching difference: The switching error should not exceed 1.5 times the basic error limit. The following are the same as the "
Electric contact bimetallic thermometer model:
The model list of Electric contact temperature controller temperture gauge
|
Model |
Temperature range ℃ | Accuracy | Protection Tube material | No. L(mm) |
fixture
|
| WSSX-400 |
-40-+80 0-+50 0-+100 0-+150 0-+200 0-+300 0-+400 0-+500 |
1.5 |
1Cr18Ni9Ti
304
316
316L
C-276
|
75 100 150 200 300 400 500 750 1000 |
none |
| WSSX-410 | |||||
| WSSX-480 | |||||
| WSSX-401 |
Movable external thread
|
||||
| WSSX-411 | |||||
| WSSX-481 | |||||
| WSSX-402 |
Movable external thread
|
||||
| WSSX-412 | |||||
| WSSX-482 | |||||
| WSSX-403 | Fixture thread | ||||
| WSSX-413 | |||||
| WSSX-483 | |||||
| WSSX-404 | Fixture flange | ||||
| WSSX-414 | |||||
| WSSX-484 | |||||
| WSSX-405 | clip thread | ||||
| WSSX-415 | |||||
| WSSX-485 | |||||
| WSSX-406 | clip flange | ||||
| WSSX-416 | |||||
| WSSX-486 |
