china 4-20ma differential pressure level transmitter price

china 4-20ma differential pressure level transmitter price

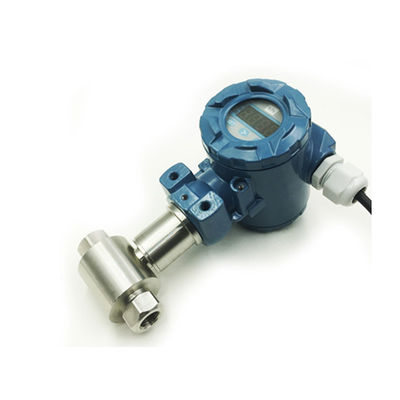

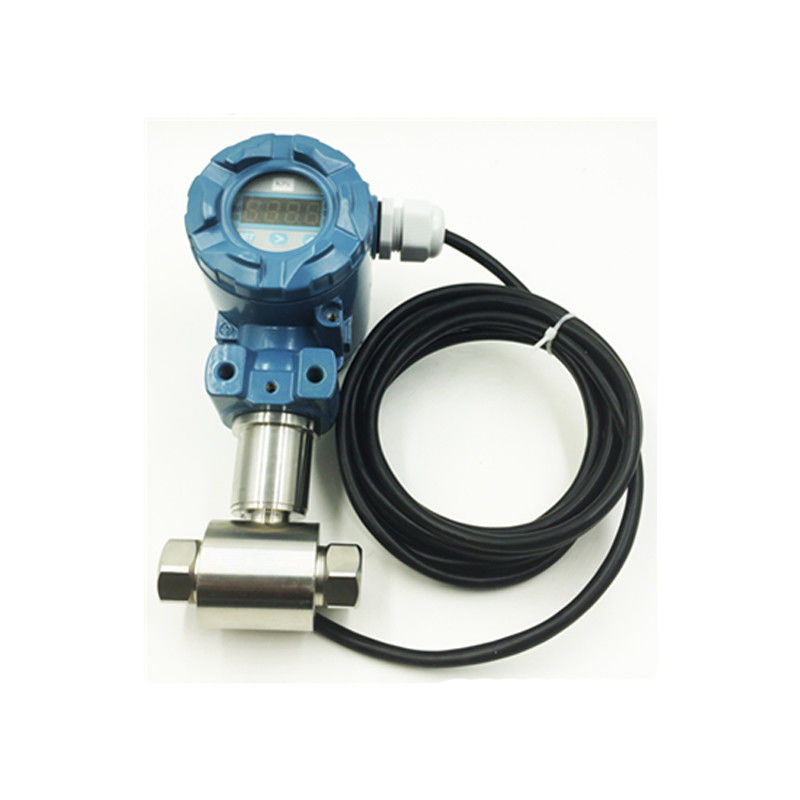

Description of china 4-20ma differential pressure level transmitter price:

2088 differential pressure transmitter,

This differential transmitters are consist of both isolation membrane differential pressure sensor and integrated circuit, Has characteristics of high precision, good stability, high reliability and good sensibility. Also can build high-performance

microprocessor(MCU)which can correct nonlinearity and compensate temperature drift. Achieve accurate data transfer, local equipment diagnoses and long-distance bidirectional communication.

Features of china 4-20ma differential pressure level transmitter price

Compatible with 316LSS,noncorrosive gases & liquids

Wind pressure & velocity of flow in industry process

Measuring pressure of pipeline &firepot

Petroleum industry, chemical industry

Meteorological monitoring

Parameters of china 4-20ma differential pressure level transmitter price

Range: 0~20Kpa…..35Kpa...~2MPa

Medium :Liquids or gases compatible with 316LSS

Proof pressure: 1.5X rated range or 7MPa(Which ever is less)

Accuracy :±0.25%(Typical) ±0.5%(Max.)

Static pressure: 5X rated range or 7MPa which ever is less

Long term stability: ±0.5%F.S/Y(≤200KPa) ±0.2%F.S/Y(≤2000KPa)

Zero temperature Drift: ±0.03%F.S/℃(≤100KPa) ±0.02%F.S/℃(>100KPa)

Span temperature Drift: ±0.03%F.S/℃(≤100KPa) ±0.02%F.S/℃(>100KPa)

Operating temperature range :-20℃~80℃

Storage temperature range: -40℃~120℃

Power supply: 15~36VDC

Output signal :4~20mA 0~10/20mA 0/1~5/10VDC

Pressure port :G1/4 Female 6 air cock or customize

Housing material :1Cr18Ni9Ti Stainless steel , aluminium casting or plastic

Diaphragm material :316L

O ring :Fluororubber

Cable :Polyethylene ventilate cable

Insulation resistance: 100MΩ,100VDC

Protection: IP65

Ordering note:
1.Media must compatible with wetted part.
2.To ensure the products can working reliable, we suggest that customer install lightning protection device and make sure products & power are earthed.
3.Special requirement ,such as strong shock, moment vibration, strong electromagnetism, radio frequency interference ,please consult us.

Q: I would like to know if you have a partner for export?
A: Yes,We have the right to export and can sell product all over the world.

Q: Can I get some samples?

A: Yes,Sample order is available for quality check and market test.But you have to pay the express cost.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.
Q: Do you have the products in stock?
A: Depends on your request.We have standard models in stock.Some special products and big order will be newly produced according to your order.
Q: Can I mix different power in one container?
A: Yes,Different models can be mixed up in one container,even one order.
Q: How does your factory do the quality control?
A: Quality is priority,we always attach importance to quality control from the beginning to the end of the production.Every product will be fully assembled and carefully tested before packing and shipping.
Q: What's your payment terms?
A: We usually accept all kinds of payment terms.Such as T/T,L/C,Western Can Union Cash.
Q: What's your warranty terms?
A: We offer 12 months warranty time
