| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | YTH-A/R |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD135.00~$195/pc |
| Packaging Details: | Accuracy 0.1 water proof PH meter PH tester Standard export carton packing. |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Product Name: | Ultrasonic Water Tank Level Meter Fuel Level Meter Water Level Sensor | Accuracy: | ± 0.3%F.S |
|---|---|---|---|
| Measuring Range: | 2m, 5m, 8m, 10m, 12m, 15m, 20m, 25m, 30m | Detection Blind Area: | Less Than Or Equal To 0.25 ~ 1.5m |
| Analog Output Signal: | 0 ~ 20mA;4 ~ 20 MA Load > 300 Ω;0 ~ 5 V;0 ~ 10 V | Digital Output: | RS485 (Modbus Supported), HART Protocol (second-line System) |
| Power Supply: | DC12-24V (three-wire System), DC24-32V (second-line System) | Power Consumption: | Less Than 1.5w (3-wire), Less Than 0.8w (2-wire) |
| Ingress Protection: | IP65 | Explosion-proof Grade: | EXiaII BT4Gb |

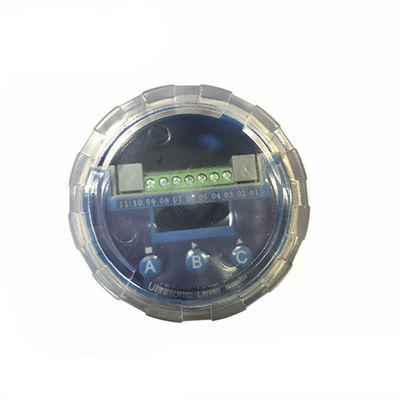

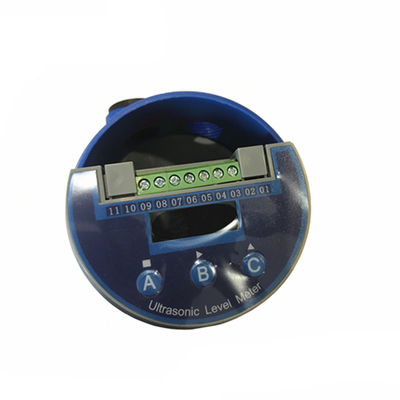

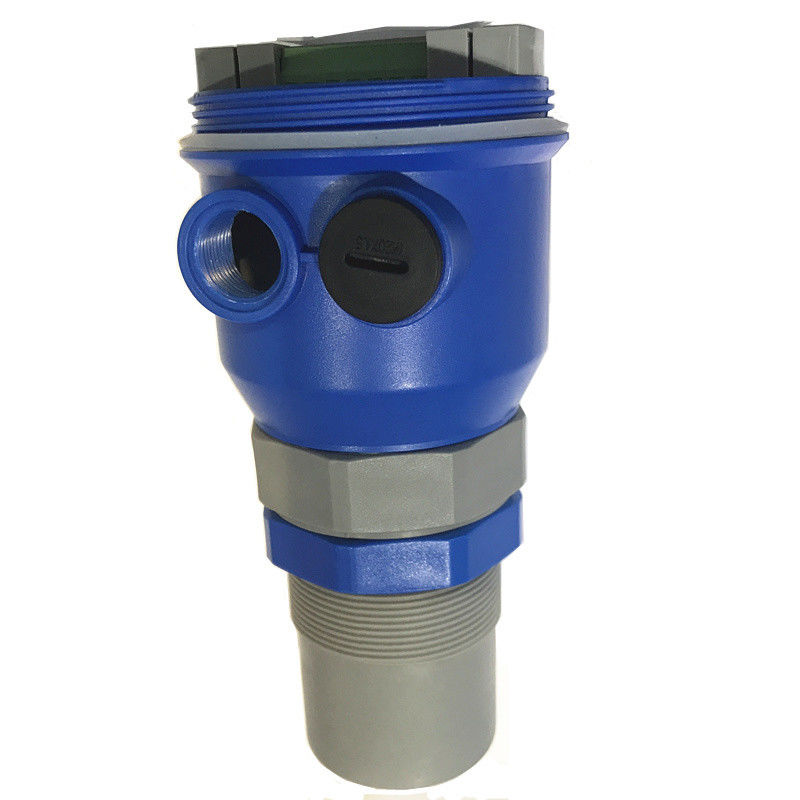

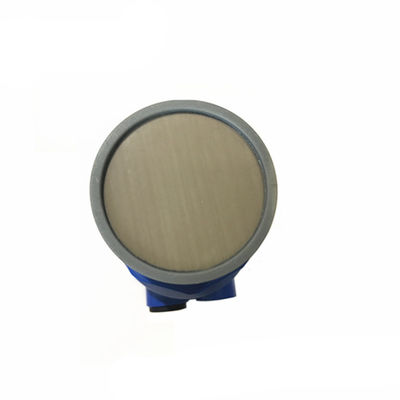

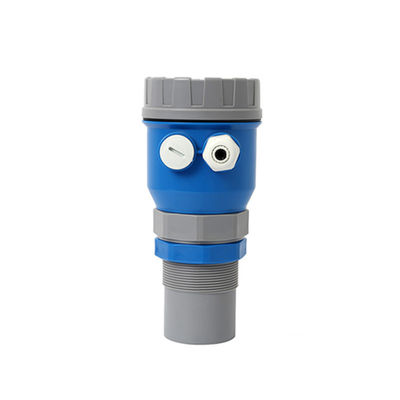

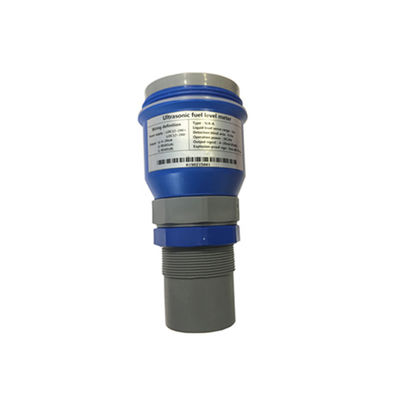

Ultrasonic water tank level meter fuel level meter water level sensor
Description
YTH-A general-purpose ultrasonic material (liquid) position meter is a general-purpose ultrasonic level meter developed and manufactured by our company based on years of application experience. It draws on the strengths of others and draws on the advantages of various level instruments at home and abroad. It has realized the concept of full digital and humanized design, with perfect object/level measurement and control, data transmission and human-machine communication. It is made of engineering plastic ABS waterproof casing, which is small and quite sturdy. The main chip adopts dozens of related ASICs such as imported industrial-grade single-chip microcomputer, digital temperature compensation and ultra-wide voltage input voltage regulation. Modular circuit design, military quality multi-layer PCB board, tight hardware structure and reasonable layout. Modules can also be added to implement other functions (such as Bluetooth, GPRS communication, etc.) according to customer needs. It has strong anti-interference ability, can set the upper and lower limit nodes and online output adjustment arbitrarily, with on-site display, optional analog quantity, switch quantity and RS485 output, convenient interface with related facilities. It has high reliability, no pollution, stable performance, and can meet most liquid level and material level measurement requirements without contacting industrial media. It completely solves the shortcomings such as winding, clogging, leakage, medium corrosion and inconvenient maintenance caused by traditional measuring methods such as pressure type, capacitive type and float type. Therefore, it can be widely used in various fields related to material level and liquid level measurement and control. This product has been tested and approved by the national authority.
Specification
| Measuring range | 2m, 5m, 8m, 10m, 12m, 15m, 20m, 25m, 30m | ||
| Blind zone | <0.25- 1.5m | Emission angle | less than 10° |
| Min resolution | 1mm | Frequency | 20 ~ 2000KHz |
| Accuracy | ±0.3% F.S | Installation | M60X2 or 61mm |
| Temperature compensation | automatic | Display | LED, LCD, OLED |
| Output signal | 0 ~ 20mA; 4 ~ 20mA load > 300Ω; 0 ~ 5V; 0 ~ 10V | Power consumption | <1W |
| Digital output | RS485 (Modbus) | Power supply | DC12-24V or AC220V |
| Switch output | two NPN / relay (AC: 5A 250V DC: 10A 24V) | Power consumption | <1.5W |
| Shell material | ABS engineering plastic, nylon | Working environment | normal temperature / pressure |
| Ingress protection | IP65 | Explosion-proof grade | EXiaII BT4Gb |
Dimension
Dimension: Φ74mm × 132mm × G1 1/2 (2m range)
Φ92mm×198mm×M60 (5m-15m range)
Φ92mm×270mm×DN80 non-standard flange (20m-30m range)
Mounting interface: G1 1/2 pipe thread or Φ50mm round hole with large ring (2m range)
M60×2 or 61mm round hole with large ring (5m-15m range)
DN80 non-standard flange (20m-30m range)
Applications
Water and sewage treatment Pump house, collection well, biochemical reaction tank, sedimentation tank, etc.
Electricity, mine mortar pool, coal slurry tank, butter storage tank, stockyard or part of mobile equipment control, etc.
Food Industry Winery, granary, food materials, tanks, etc.
Control system supporting use
Features
This product has built-in GPRS, Wifi to realize the Internet of Things
Backup and restore settings parameters
Measureable level, liquid level, volume, weight, etc.
Can adjust the analog output arbitrarily
With digital filtering and echo recognition
Manually set fixed interference filtering function
Support custom sound speed (special substance measurement)
Support custom serial data format (selected when ordering)
Support for custom math function operations
