| Place of Origin: | Made In China |
| Brand Name: | NanCon |
| Certification: | CE |
| Model Number: | NU65F30TR |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD35.00~$195/pc |
| Packaging Details: | Accuracy 0.1 water proof PH meter PH tester Standard export carton packing. |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Measuring Range: | 350~6000mm | Frequency: | 200KHz |
|---|---|---|---|
| Angle: | 25° | Output Signal: | 4~20ma |
| Blind Area: | 350mm | Repeat Accuracy: | 0.1% |
| Power Supply: | 10~30V DC | Shell Material: | ABS |
| Weight: | 165g | Cable: | 2m |

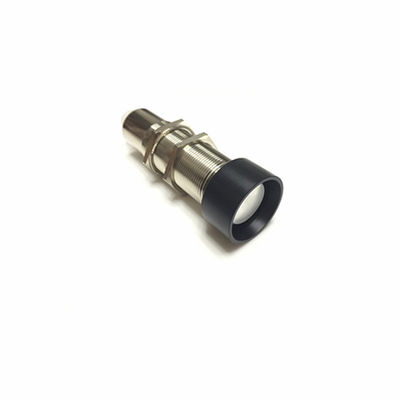

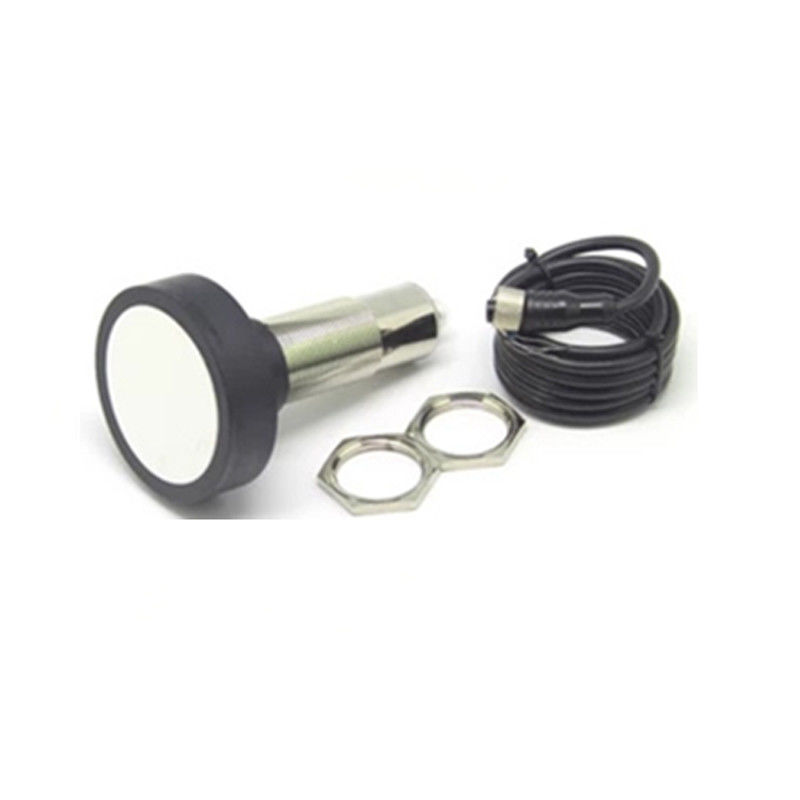

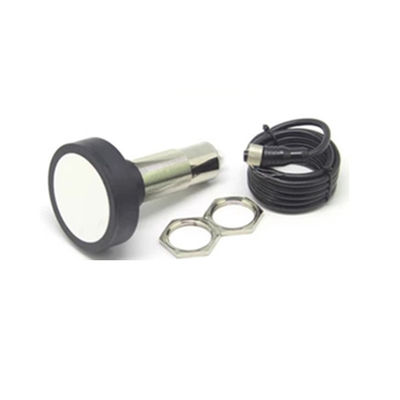

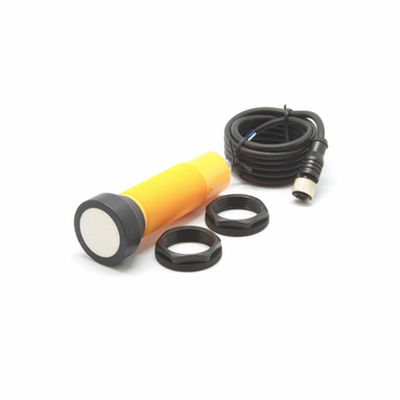

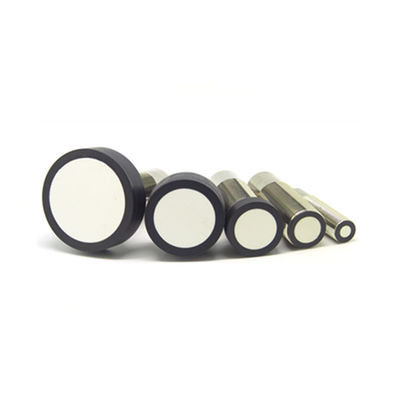

High accuracy boiler hot water ultrasonic level sensor
Description
The ultrasonic level sensors are mainly used in level measuring,distance detection, anti-theft alarm, intelligent toys, automatic control and other fields.With a variety of output mode, according to customer demand for customized products.
Features
Waterproof and dustproof
High sensitivity and precision
Good durability in temperature and humidity
Stable performance
Cost-Effective
Specification
| Model | NU65F30TR-I-6000 |
| Signal output | 4~20ma |
| Power supply | 10~30VDC |
| Measuring range | 350~6000mm |
| Blind area | 350mm |
| Standard test plate | 300x300mm |
| Angel | 25 |
| Repeat accuracy | 0.1% |
| Power consumption | 20 mA |
| Shell material | ABS |
| Sensor frequency | 200KHz |
| Working temperature | - 20 ° C ~ + 60 ° C |
| Storage temperature | -40 ° C to + 70 ° C |
| weight | 165 g |
| Cable length | 2m |
Dimension
Applications
Measurement of liquid level and oil level
Measuring diameter and coil diameter
Material height control
