| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | YD38 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD35.00~$295/pc |
| Packaging Details: | Accuracy 0.1 water proof PH meter PH tester Standard export carton packing. |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Product Name: | Popular Capacitive Pressure Transmitter In Low Price | Pressure Range: | -100KPa~100MPa |
|---|---|---|---|
| Output: | Digital Signal | Overload: | 1.2 Times Basic Overload |
Reference level digital signal transmitter with LED
Description :
The reference pressure transmitter is mainly used for high precision measurement and reference pressure,Accuracy can reach 0.02%FS, reference pressure transmitter adopts imported GE pressure sensor and the temperature compensation circuit can maintain good accuracy and stability. The output adopts 485 free protocol, and the resolution can reach 0.1PA level.
Application:
The utility model is suitable for measuring industry and occasions needing high precision test pressure.
Technical Parameters:
| pressure | -100KPa~100MPa Absolute or sealed gauge pressure |
| Power supply | 12~36V Between |
| output | digital signal |
| overload | 1.2 times basic overload |
| material | Stainless steel 316 |
| Seal up | Fluorine rubber sealed Non internal seal |
| Thread | Optional thread (see option page) |
| Accuracy | 0.02class 0.05class |
| Sound frequency | ≥200HZ |
| temperature | Medium temperature, -30~80 degree, ambient temperature, -30~80 degree |
| Protection level | IP65 or IP68 high magnetic compatibility |
Other products:

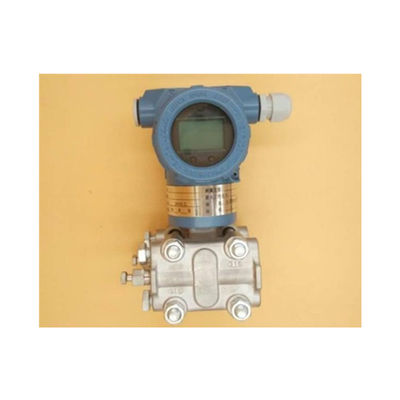

popular Capacitive Pressure Transmitter in low price
Package:
