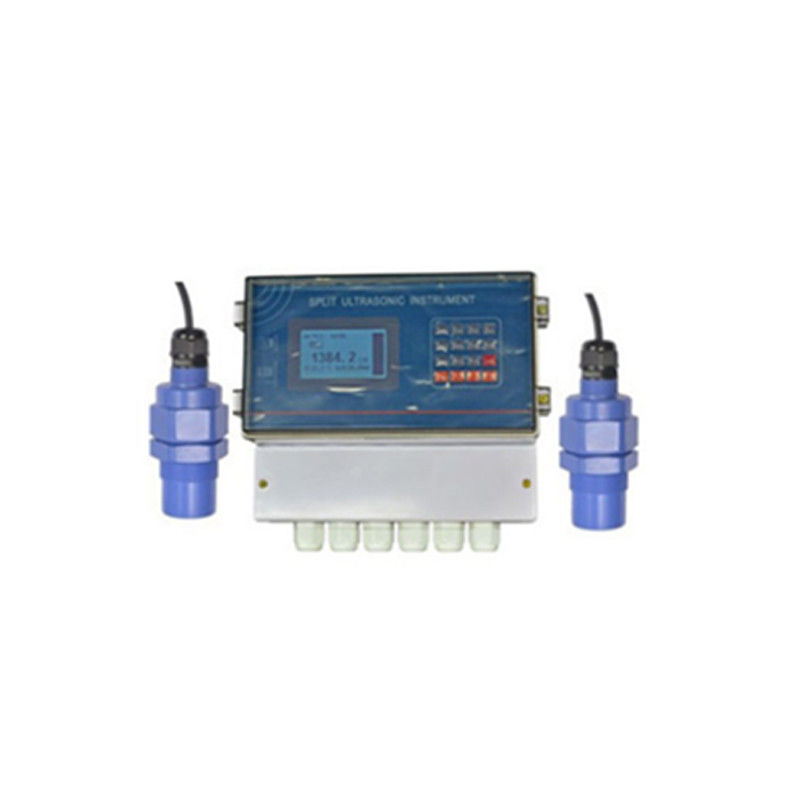

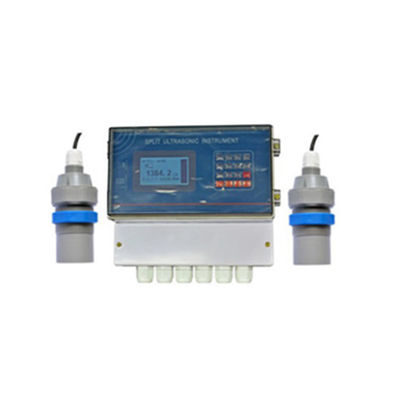

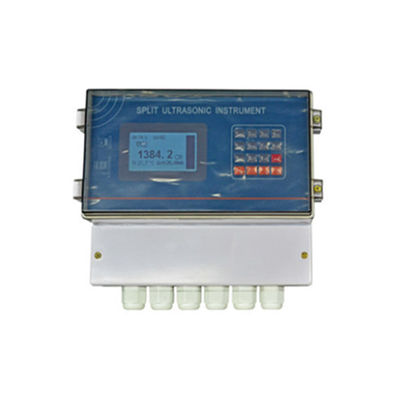

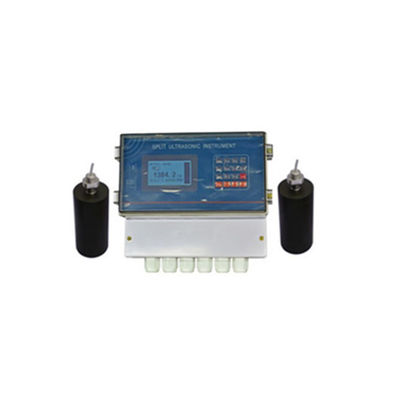

Wholesale ultrasonic level sensor split level meter

Split ultrasonic level meter produced with our many years experience of level meter production . drawing on a variety of similar products advantages, and the development of a convenient and applicable split ultrasonic level meter, Environmental machine circuit is prone to trouble to worry about. With accurate measurement, reliable work, the appearance of generous and so on. Using large-scale integrated circuits, component chip rate of 90%, to ensure the long-term reliability of the product. While reducing its power consumption to a very low, the use of large-screen display full Chinese menu easy to use, support SD card data acquisition and serial data download, can record ten interference echo points.

Featuer of Whosale ultrasonic level sensor split level meter :

1, Built-in GPRS, Wifi.

2,Backup and restore settings.

3,Can measure the object position, level, volume and weight etc.

4, Can adjust the analog output

5, Digital filtering and echo recognition

6,Support blue-tooth ,GPRS,Mini SD card ,USB ,Mini printer (option)

Application of Whosale ultrasonic level sensor split level meter:

1,Water industry (pumping stations, biochemical reaction pool, sedimentation tank etc.)

2,Electric power, mine industy

3,Food industry

Range:2m,5m,8m,10m,12m,15m,20m,25m,30m (option)

Blind area:0.3~ 1.5m

Minimum display resolution:1mm

Frequency :20 KHz~200KHz

Accuracy:±0.3%F.S

Display:Chinese and English bilingual LCD, colourful TFT(option)

Signal output:4~20mA,0~20mA,0~5V, 0~10V>300Ω

Work power:AC220Vor DC12-24V

Product Size:240mm×184mm×110mm /256mm×175mm×110mm Case Material:ABS plastics,Nylon

Sensor material: 10m shielded cable(option the length )

Interface:G1 1/2, M60×2 ,M30X1.5 or DN80 non-stander flage(Range 20m-30m)

Protection grade:IP65 and EXiaII BT4Gb

Established with 10 million capital in 2015, Xi'an Shelok Technology Instrument Co., Ltd. is a professional designer and manufacturer that engaged in the fields of pressure measurement instruments. We specializing in developing high precision pressure transmitter, pressure gauges, pressure calibration pump and dead weight tester,level transmitter, flow meter etc., widely used in chemical, petroleum, paper, electricity, city gas, environmental protection, water treatment and other fields.

Specialties

pressure transmitter/sensor/transducer, pressure gauge, pressure calibration hand pump, and water level sensor

1, more than 10 years industry background

The original organization is Xi'an Precise Instruments Factory, established in 2007,In 2013, Yunyi Group is established for development command.In 2015, Xi'an Shelok instruments Co., Ltd is estalished with 10 million capita for meeting the international business expanding demand.

2, a company of design and manufacture capability

Mainly focus on design and customized solution offer, and combining our professional industry background and our capability of supply chain management in local market, more comprehensive products and services could be offered.

3, R&D team + cooperation with colleges and universities

Keeping our capability of technology innovation improved makes us available to meet various technical challenges

4, three inspection steps + good warranty service

Strict inspection operation process keeps our products qualified, and clearly warranty policies help customer's solve after-sale problems and lower their cost.

5, sample first policy.

By offering most suitable proposal to help customers maximize their profit.

6, employees with + 4 years international experience are more than 100%

Professional and effective international business operation offers better service expericence

Q:How long will you reply me?

A:We will contact you as soon as possible but within 12 hours

Q: Can I get some samples?

A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.

Q: What's delivery time?

A: It usually takes about 3-5 working days for small order and 10-15 days for big order.

Q:How do you control your quality ?

A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).

Q: What's your warranty terms?

A: We offer 12 months warranty time.

Q:can you provide OEM & Customized service?

A:Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
