| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | L200 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD35.00~$95/pc |
| Packaging Details: | Accuracy 0.1 water proof PH meter PH tester Standard export carton packing. |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Accuracy: | 0.25%FS | Output: | 0~10V DC (three Wire) |
|---|---|---|---|
| Range: | 0-5-10-20-50-100-200m | Connection: | G1/4, G1/2, 1/2NPT, 1/4NPT, M12 * 1.5, Etc. (can Be Customized) |
| Medium Temperature Range: | -20~85°C | Response Time: | ≤5mS |
| Power Supply: | 24V Dc(15~30VDC) | Pressure Type: | Gauge Pressure |

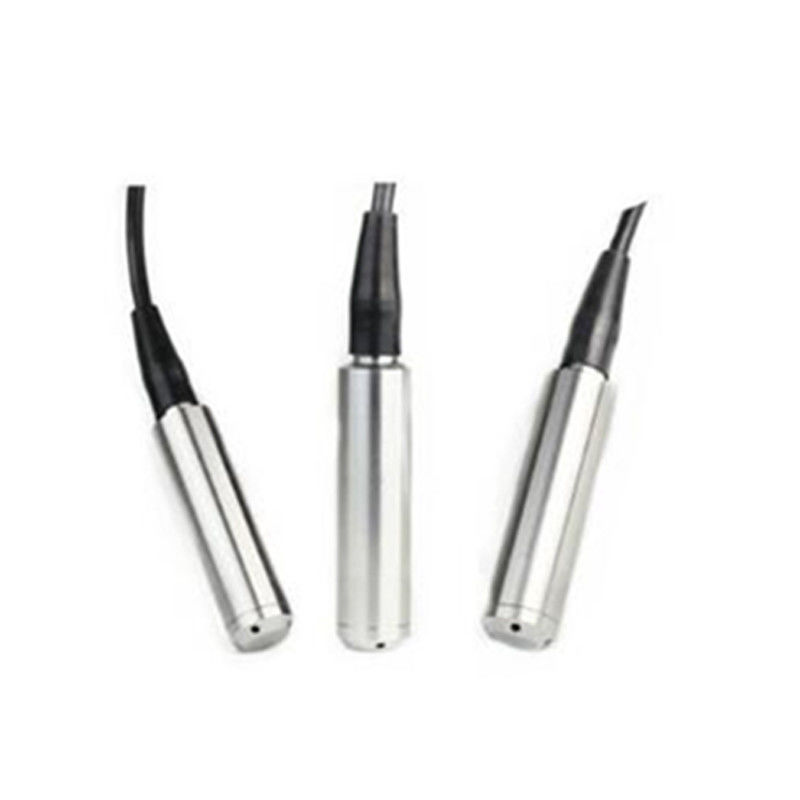

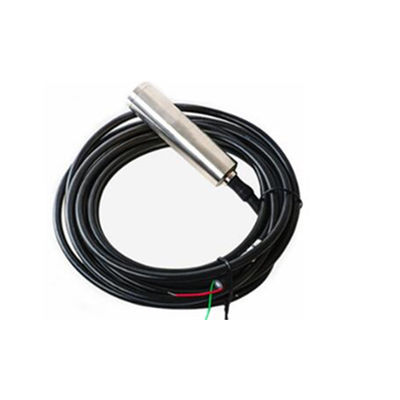

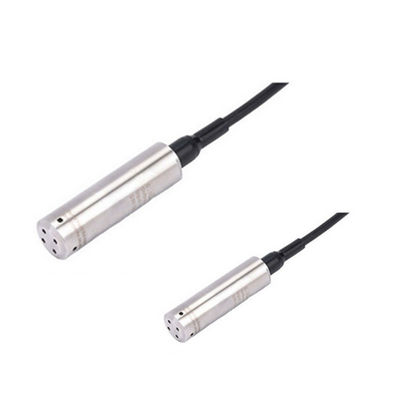

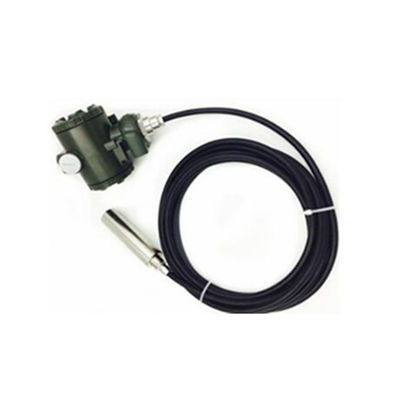

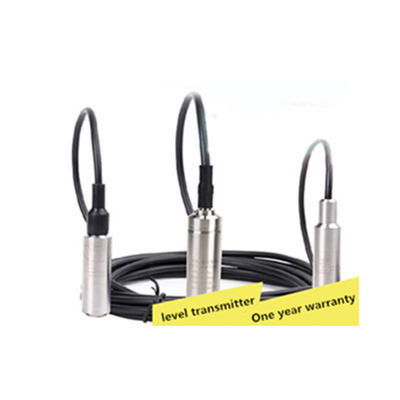

| Stability: | ≤±0.15%FS/ Year | Product Name: | Hydrostatic Pressure Sensor Fuel Tank Level Meter |
Application of hydrostatic pressure sensor fuel tank level meter:
4-20ma Input Liquid Level transmitter Water Level Sensor of the water tank, oil level in oil tank, water sink (oil sink), wells, water towers, river, reservoir, sewage treatment equipment, sea water, groundwater monitoring, etc.
Technical Data of hydrostatic pressure sensor fuel tank level meter:
Ordering guide hydrostatic pressure sensor fuel tank level meter
| L-200 | Input Liquid Level transmitter | ||||||||
| Code | Measurement Range | ||||||||
| 1 | (0-1)mH2O | ||||||||
| 2 | (0-5)mH2O | ||||||||
| T | Special specification | ||||||||
| Code | Accuracy grade | ||||||||
| 1 | 0.2 | ||||||||
| 2 | 0.5 | ||||||||
| Code | Explosion proof type | ||||||||
| M | Explosion proof type | ||||||||
| N | Standard type | ||||||||
| I | EX iaⅡCT6 | ||||||||
| D | EX dⅡBT4 | ||||||||
| Code | Display or not | ||||||||
| M0 | display | ||||||||
| M1 | None | ||||||||
| M2 | LCD digital display | ||||||||
| Code | Output | ||||||||
| E | 4~20mA | ||||||||
| V | 0-5V | ||||||||
| S | 0-10V | ||||||||
| T | Special specification | ||||||||
| Code | Probe material | ||||||||
| A1 | SUS304 | ||||||||
| A2 | SUS316L | ||||||||
| Code | Material | ||||||||
| B | Cable sheath material | ||||||||
| B1 | Polyethylene rubber | ||||||||
| B2 | PTFE | ||||||||
| B3 | |||||||||
| Code | Power supply | ||||||||
| V1 | 24V DC | ||||||||
| V2 | Special specification | ||||||||
External dimension hydrostatic pressure sensor fuel tank level meter:
Connection diagram
Installation notice hydrostatic pressure sensor fuel tank level meter:
