| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | YD38 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD65.00~$125/pc |
| Packaging Details: | Accuracy 0.1 water proof PH meter PH tester Standard export carton packing. |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Measure Range: | 0~20Kpa~35Kpa~2Mpa | Accuracy: | ±0.25% (Typical) ±0.5% (Max.) |
|---|---|---|---|
| Output Signal: | 4-20mA | Medium: | SS 316L |
| Proof Pressure: | 1.5X Rated Range Or 7Mpa (Which Ever Is Less) | Static Pressure: | 5X Rated Range Or 7Mpa Which Ever Is Less |
| Product Name: | Differential LCD Digital Pressure Transmitters, Pressure Sensors | Operating Temperature: | -20℃~80℃ |
| Power Supply: | 12~30V DC |
Differential LCD Digital Pressure Transmitters, Pressure Sensors
Description
smart differential digital pressure transmitter is diffused silicon differential transmitters are consist of both isolation membrane differential pressure sensor and integrated circuit, Has characteristics of high precision, good stability, high reliability and good sensibility. Differential pressure transmitter also can build high-performance microprocessor(MCU)which can correct nonlinearity and compensate temperature drift. This digital differential pressure transmitter achieve accurate data transfer, local equipment diagnoses and long-distance bidirectional communication. This smart pressure transmitter with high quality and very low price, and high stability. The transmitter can used in all kinds industry.

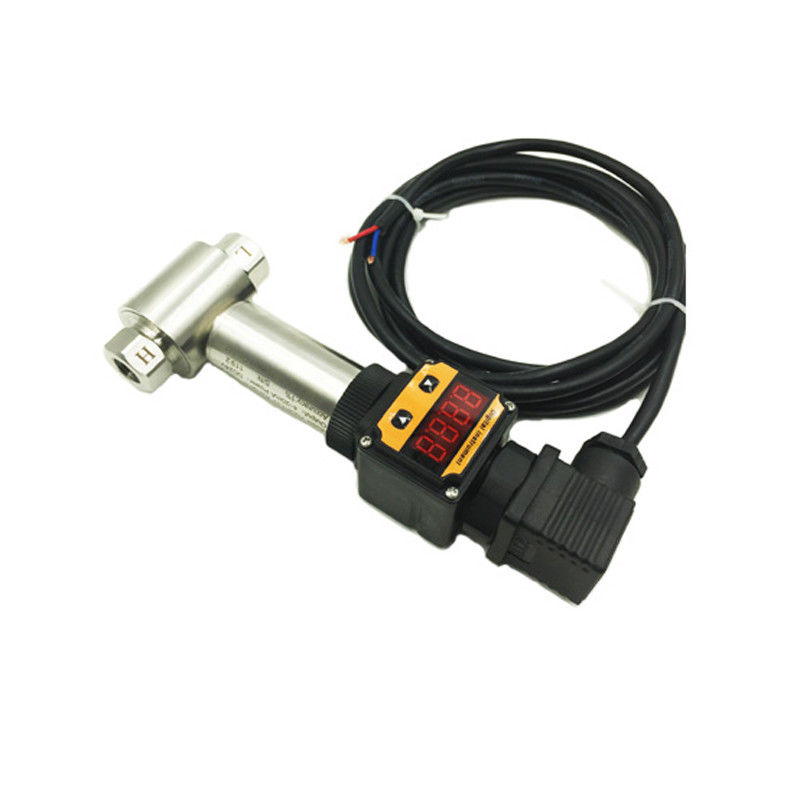

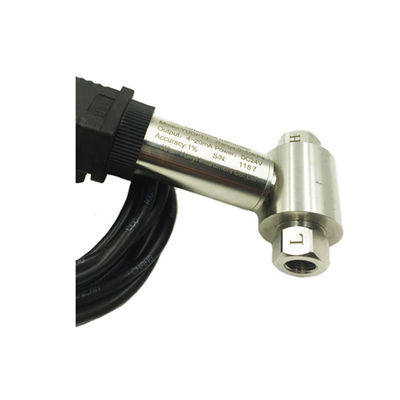

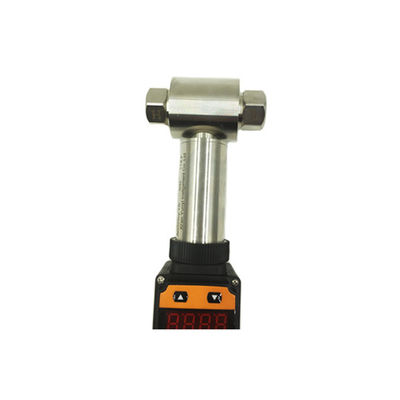

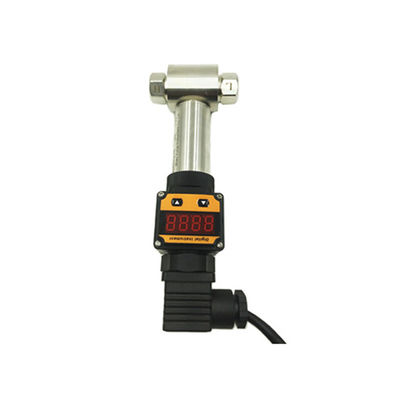

Detailed Images
Specification
| Differential LCD Digital Pressure Transmitters, Pressure Sensors | |
| Measuring Range | 0 ~ 10KPa…2MPa |
| Full Scale Range | 10~50KPa, 50~100KPa, 0.1~0.2MPa, 0.2~0.5MPa, 0.5~1MPa, 1~2MPa |
| Positive Overload Pressure | 250KPa, 300KPa, 0.4MPa, 1.0MPa, 2MPa, 4MPa |
| Negative Overload Pressure | 100KPa, 200KPa, 0.3MPa, 0.5MPa, 0.7MPa, 1MPa |
| Maximum Static Pressure | ≤20Mpa |
| Overall Accuracy | ±0.1%FS, ±0.25%FS, ±0.4%FS |
| Zero Point Temperature Drifting | ±0.02%FS/℃ (typical) ± 0.05%FS/℃ (maximum) |
| Sensitivity Temperature Drifting | ±0.02%FS/℃ (typical) ±0.05%FS/℃ (maximum) |
| Influence Static Pressure | ±0.05%FS/100KPa |
| Operating Temperature | -10℃ ~ 80℃ |
| Compensating Temperature | -10℃ ~ 50℃ |
| Long-term Stability | ±0.3%FS/year (≤200KPa); ±0.1%FS/year (≥200KPa) |
| Power Supply | 12 ~ 36V DC (24V DC generally) |
| Signal Output | 2-wire 4~20mA; s-wire 0 / 1-5V DC |
| Response Time | ≤2ms |
| Insulation Resistance | 100MΩ, 500V DC |
| Influence Vibration | Change ≤1% after vibration of 3gRMS30 ~ 2000Hz |
| Impact | Change ≤1% after impact of 100g for 10ms |
| Service Life | 1×108 pressurized cycle |
| Medium | The gas or liquid compatible with material of structure |
| Explosion–proof Marking | Ex ia II CT5 (intrinsically safe explosion–proof |
| Weight | Approx 0.35KG |
| Thermal Lagging | ± 0.1%FS (typical) |
| Enclosure Protective Degree | Plug Type (IP 65) Cable Type (IP 67) |
Related Products
FAQ
Q:How long will you reply me?
A:We will contact you as soon as possible but within 12 hours
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.
Q:How do you control your quality ?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).
Q: What certificates do you have ?
A:ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.
Q:Could I visit your factory?
A:Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q:can you provide OEM & Customized service?
A:Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
Company Information
Shelok considers itself not only a manufacture but more conprehensively a provider of industry specific customer-oriented solutions.Our profound understanding of product application and strong technical backgrounds ensure you the best product solution and achieve a greater success.
Xi'an Shelok Instrument Technology co.,ltd is a professional R&D center and manufacture of measuring instruments.And here's a variety of products for you choice: pressure transmitters,temperature transmitters,flow transmitters,weighing instruments and so on.Our products have been made by advanced technology, with high quality, fast delivery period, which have attracted so many domestic and foreign customers.
