| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | YD31 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD25.00~$95/pc |
| Packaging Details: | Accuracy 0.1 water proof PH meter PH tester Standard export carton packing. |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Measurement Range: | 0--100Mpa | Accuracy: | 0.2%FS, ±0.5%FS |
|---|---|---|---|
| Output Signal: | 4-20mA (2 Wire), 0-10V, 0-5V, 1-5V, 0-10V | Supply Power: | 10-36VDC (Standard 24VDC) |
| Electrical Connection: | Air Plug Connector | Medium Temperature: | -30 ~ 80 ℃ |
| Ambient Temperature: | -40 ~ 80 ℃ | Storage Temperature: | -40 ~ 100 ℃ |
| Quality Certification: | CE | Warranty: | 12 Months |
Smart 4~20mA Industrial Pressure Transmitter Sensor
Description
YD31 pressure transmitter is a series pressure transmitter of our standard transmitter.Imported chip assembly, reflecting a world-class pressure transmitter technology.Compact, rugged. Light weight, easy to install. Easy to use. Maintenance-free. Zero outside the range can be continuously adjusted, a wide range of migration. Suitable for a variety of occasions in harsh environments and corrosive media.

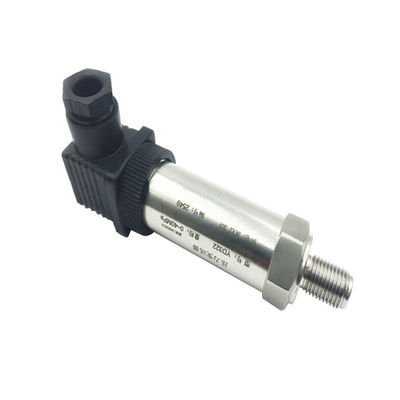

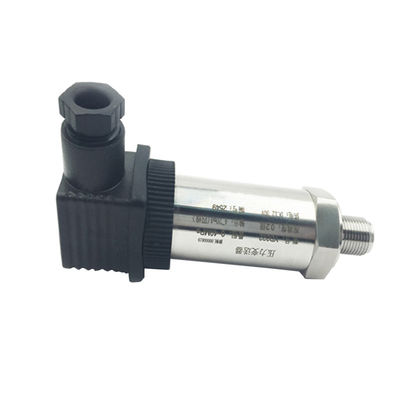

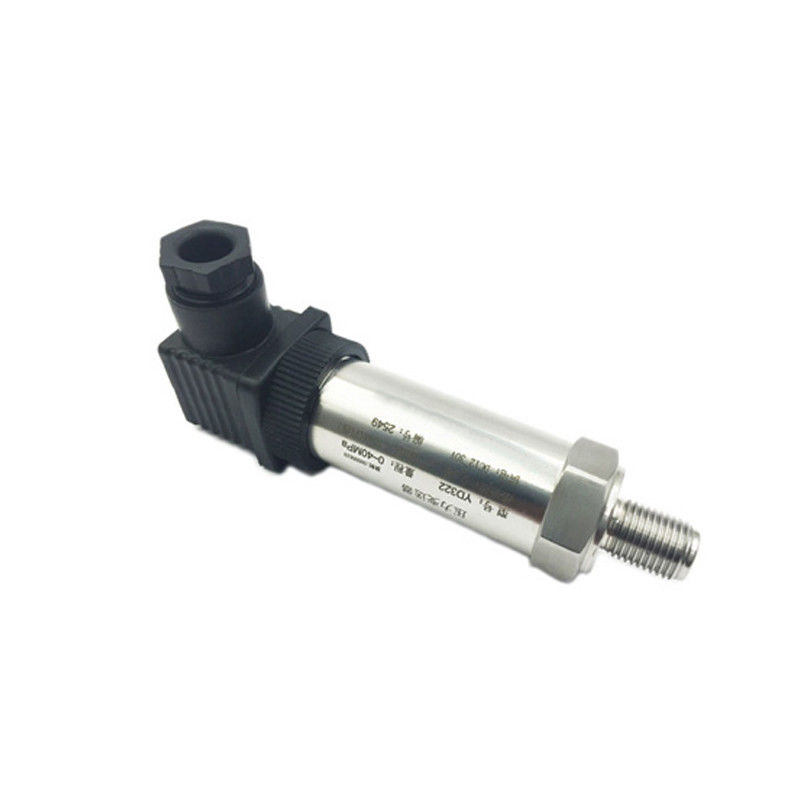

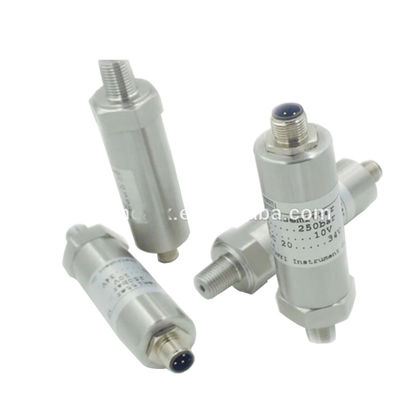

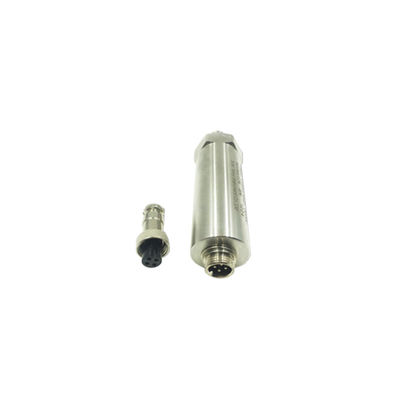

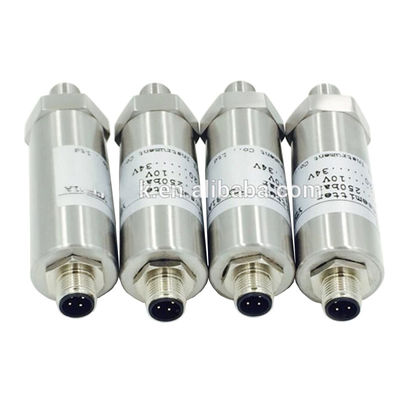

Detailed Images
Specification
| Smart 4~20mA Industrial Pressure Transmitter Sensor | |
| Technical indicators | |
| Medium | Oil, water, gas and compatible with 316L stainless steel |
| Pressure | |
| Ceramic type | 0.1-40Mpa |
| Diffused silicon type | -0.1MPa ~ 0 ~ 100MPa |
| Overload | 2 times (10MPa or less); 1.5 times (10MPa or more) |
| Accuracy | ± 0.1% FS ,± 0.2% FS , ± 0.5% FS,± 1% FS |
| Nonlinear | <± 0.2% FS |
| Hysteresis and repeatability | ≤ ± 0.1% FS |
| Long-term stability | ≤ ± 0.1% FS / year |
| Zero drift | ≤ ± 0.02% FS / ℃ |
| Response time | ≤500ms (standard) |
| Electrical parameters | |
| Output | |
| Current 2-wire | 4 ~ 20mA |
| Voltage 3-wire | 0 ~ 5V; 0 ~ 10V; 1 ~ 5V; 1 ~ 10V |
| Option | RS 485 ,hart |
| Supply voltage | DC24V (12 ~ 32VDC, less may contact) |
| Electrical connection | Standard for Hersman, optional direct outlet or M20 PIN Aviation |
| Wetted parts | 316L stainless steel |
| Shell | 304 |
| Seals | Viton, optional: EPOM, NBR |
| Diaphragm | 316L stainless steel |
| Other specifications | |
| Process connection | 1/2npt or custom |
| Material | 316L stainless steel wetted materials; Shell: 304 |
| Protection class | IP 65 |
| Medium temperature | -30 ~ 80 ℃ |
| Ambient temperature | -40 ~ 80 ℃ |
| Storage temperature | -40 ~ 100 ℃ |
| Current Limit | The maximum current-24mA; voltage-largest 5mA |
| Certification | CE |
DigitalASIC, accuracy and stability
Drift affect small
Excellent long-term stability
Excellent anti-jamming capability
Overvoltage overcurrent protection, reverse polarity protection
Excellent selection of imported sensors core
Applications
Industrial field pressure control process, supporting the automotive, central air conditioning, refrigeration equipment, water treatment works, environmental
purification, hydraulic and pneumatic control, aerospace, petrochemical industry, food industry, medical equipment, marine and shipbuilding industry, water conservancy,hydropower , power plants and other industries. almost can be used in various industrial fields, suitable for all stainless steel, 316L compatible media, and by choosing different seals to be compatible with more media. Different pressure and electrical connections can be selected.
