| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | YD31 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD15.00~$65/pc |
| Packaging Details: | Accuracy 0.1 water proof PH meter PH tester Standard export carton packing. |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Pressure Range: | -100KPa....2.0Mp;0~60MPa | Accuracy: | 0.1% FS, 0.2% FS, 0.5% FS |
|---|---|---|---|
| Power Supply: | 10~30V DC | Output Signal: | 4 ~ 20mA (two-wire), 0 ~ 5V, 1 ~ 5V, 0 ~ 10V (three-wire) |
| Interface: | M20*1.5 | Material: | 316L |
| Operating Temperature Range: | -60℃~200℃ | Item Name: | High Temperature Boiler Liquid Pressure Sensors |
| Warranty: | 12 Months | Application: | Water |
Factory High Quality 4~20mA Water Pressure Sensors
Description
pressure transmitter use Sputtered film technogy to test liquid and air pressure .
The pressure transmitter is fully welded with intrinsic safety and explosive-proof futures, so can by applied in harsh industrial environments and high temperature environments like 0 °c - 150 °c~200°c

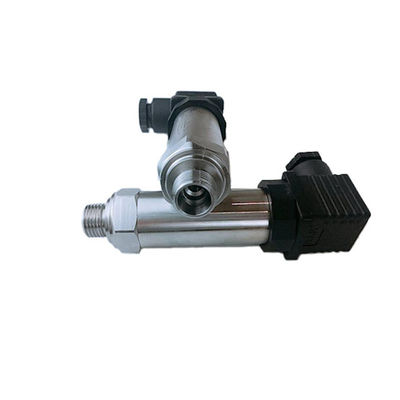

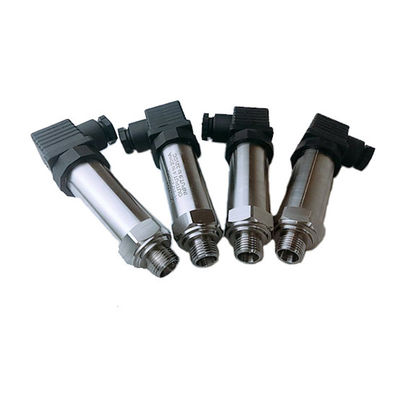

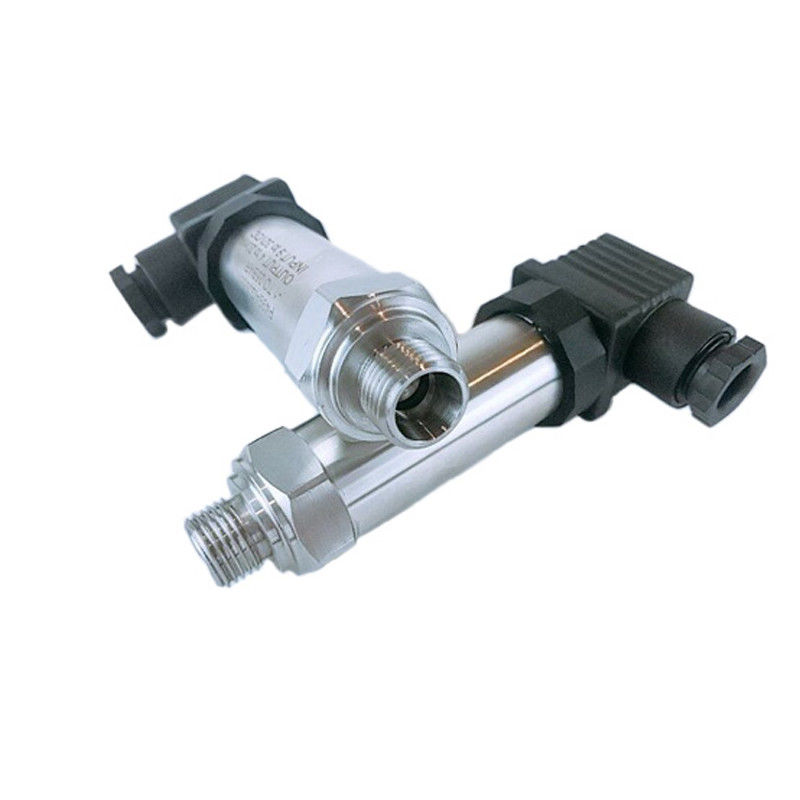

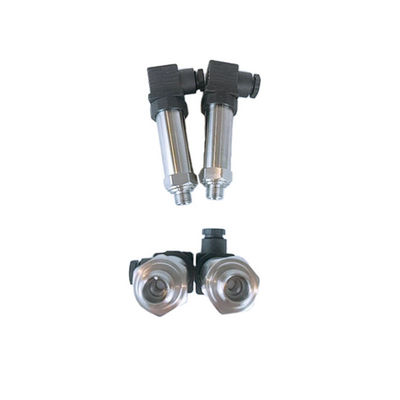

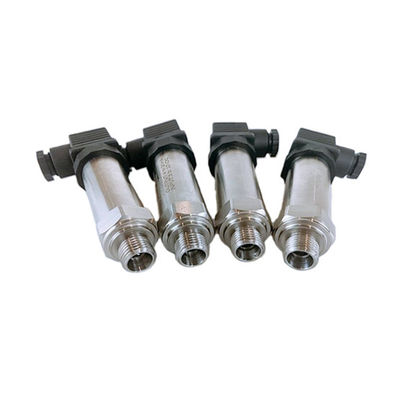

Detailed Images
Specification
| Factory High Quality 4~20mA Water Pressure Sensors | |
| Pressure Range | 0~0.1bar to 0~100bar |
| Overload | 1.5 times of full range |
| Accuracy | 0.25%FS,0.5%FS |
| Working power | 10~30V DC |
| Output | 4~20mA,0~10mA,1~5VDC,0~10VDC,0~5VDC |
| Compensation temperature | 0~50°C,-10~80°C |
| Medium temperature | -60~200°C |
| Working temperature | -30~85°C |
| Storage temperature | -40~125°C |
| Temperature influence | 0.02%FS/°C |
| Electric Connection | DIN (can be customized) |
| Protection grade | IP65,IP67 |
| Connection | M20*1.5 male (can be customized) |
| Anti vibration | 20g,20-5000HZ |
| Impact resistance | 100g,11ms |
| Case material | SS304 |
Application
Related Products
FAQ
Q:How long will you reply me?
A:We will contact you as soon as possible but within 12 hours
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.
Q:How do you control your quality ?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).
Q: What certificates do you have ?
A:ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.
Q:Could I visit your factory?
A:Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q:can you provide OEM & Customized service?
A:Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
Company Information
Shelok considers itself not only a manufacture but more conprehensively a provider of industry specific customer-oriented solutions.Our profound understanding of product application and strong technical backgrounds ensure you the best product solution and achieve a greater success.
Xi'an Shelok Instrument Technology co.,ltd is a professional R&D center and manufacture of measuring instruments.And here's a variety of products for you choice: pressure transmitters,temperature transmitters,flow transmitters,weighing instruments and so on.Our products have been made by advanced technology, with high quality, fast delivery period, which have attracted so many domestic and foreign customers.
Packing & Shipping
