| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | YD31 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD35.00~$95/pc |
| Packaging Details: | Accuracy 0.1 water proof PH meter PH tester Standard export carton packing. |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Measure Range: | -100KPa ~ 0 ~ 10KPa ~ 100Mpa | Output: | 4 ~ 20mA, 1 ~ 5V, 0 ~ 5V |
|---|---|---|---|
| Accuracy: | ± 0.5% FS ± 0.25% FS | Thread: | G1/4, G1/2 1/4NPT, 1/2NPT And Others |
| Application Temp.: | -10 ℃ ~ 80 ℃ | Quality Guaranteed: | IP65 |
| Customd Or Not: | Customed | Product Name: | China Absolute Negative Pressure Transducer Pressure Transmitter |
Various size 4-20mA Pressure Sensors, Transmitters
Description
Flush diaphragm pressure transmitter, designed for food and pharmaceutical industry, is suitable for CIP/SIP cleaning and sterilization.Smart compact design, the welded process diaphragm medium parts is made of high quality stainless steel 316L, filling fluid with hygiene standard in line with CE certification, variety of international standard process connections are available.

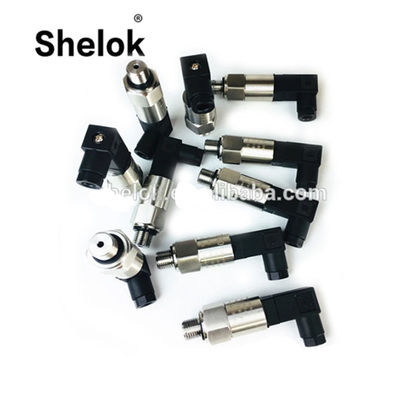

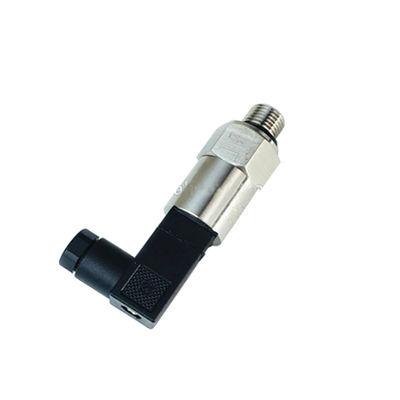

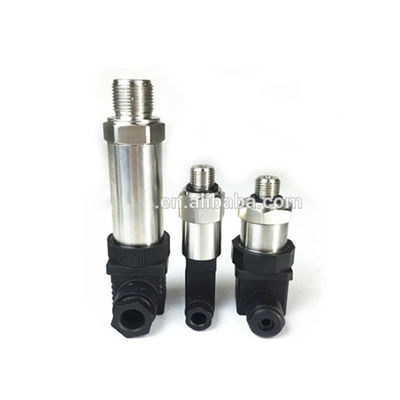

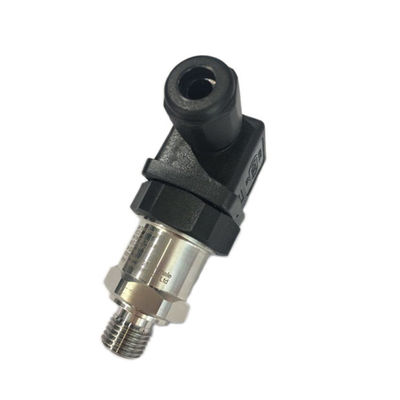

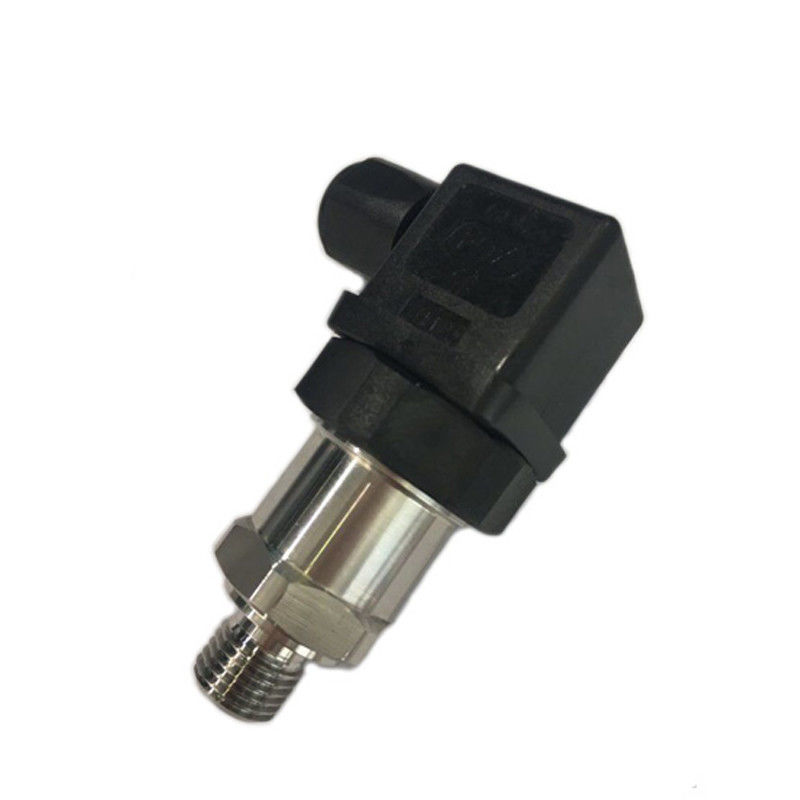

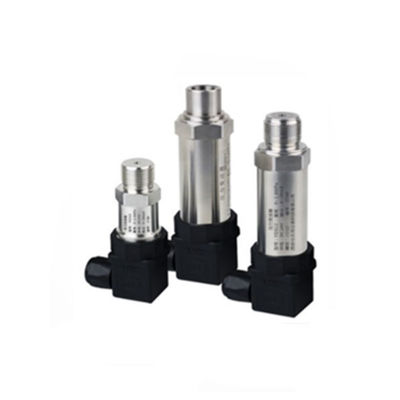

Detailed Images
Specification
| Various size 4-20mA Pressure Sensors, Transmitters | |
| Pressure Range |
0-35/50/100/200/400/500/600Kpa 0-1/1.6/2.5/4/6/10Mpa |
| Accuracy | 0.25% FS; 0.5% FS; 1% FS |
| Output signal | 4-20mA (two-wire), 0-5V; 0-10V (three-wire) |
| Supply voltage | 24 (12 ~ 36)V DC |
| Pressure connection | G1 / 2, M12 * 1.5,or clamp type |
| Electrical connection | DIN, directly lead , aviation plug-ins |
| Hysteresis & non-linear & Repeatability | ≤ ± 0.5% FS |
| Comprehensive error (including temperature drift) | ≤ ± 1% FS (-20 ~ 80 ℃) |
| Long-term stability | ≤ ± 0.25% FS 1 Year |
| Medium temperature range | -40 ~ 85℃(thread type)-40 ~ 150 ℃(clamp type) |
| Storage temperature range | -40 ~ 85 ℃ |
Features
Improved optimized circuit and mounting structure, improved vibration resistance and stability
No cavity measuring diaphragm chamber;
Many industry-standard signal output options;
Wiring for the connector or directly lead;
May request for additional full-scale zero adjustment function;
Various pressure port option;
Applications
Aspects of mechanical engineering applications, such as polyurethane equipment
Medical applications such as pharmaceutical and other
Food Machinery and beverage processing industry
General industrial control field, such as paper, paint, etc.
Selection Guide
| SL-31 | |||||||
| Pressure range | 0-10Mpa | ||||||
| (0-X)KP Or MPa | X:Measurement range | ||||||
| Code | Power supply | ||||||
| D1 | 24V DC | ||||||
| D2 | 5V DC | ||||||
| D3 | Others | ||||||
| Code | Output signal | ||||||
| S1 | 4~20mADC | ||||||
| S2 | RS485 | ||||||
| Code | Pressure Port | ||||||
| J1 | M20×1.5 male | ||||||
| J2 | G1/2 male | ||||||
| J3 | 50.5mm clamp | ||||||
| J4 | Others | ||||||
| Code | Electrical connection | ||||||
| B1 | Big Din | ||||||
| B2 | PIN Aviation | ||||||
| B3 | Direct Cable | ||||||
| B4 | 2088 industry housing | ||||||
| B6 | others | ||||||
| code | Display | ||||||
| H | With | ||||||
| X | without | ||||||
Related products
FAQ
Q:How long will you reply me?
A:We will contact you as soon as possible but within 12 hours
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.
Q:How do you control your quality ?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).
Q: What certificates do you have ?
A:ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.
Q:Could I visit your factory?
A:Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q:can you provide OEM & Customized service?
A:Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
Company Information
Shelok considers itself not only a manufacture but more conprehensively a provider of industry specific customer-oriented solutions.Our profound understanding of product application and strong technical backgrounds ensure you the best product solution and achieve a greater success.
Xi'an Shelok Instrument Technology co.,ltd is a professional R&D center and manufacture of measuring instruments.And here's a variety of products for you choice: pressure transmitters,temperature transmitters,flow transmitters,weighing instruments and so on.Our products have been made by advanced technology, with high quality, fast delivery period, which have attracted so many domestic and foreign customers.
