| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | YD31 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD35.00~$78/pc |
| Packaging Details: | Accuracy 0.1 water proof PH meter PH tester Standard export carton packing. |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Pressure Range: | -0.1~100Mpa | Output: | 4~20mA/2Wire, (0~10V, 0~5V/Wire), RS485 |
|---|---|---|---|
| Power: | 10~30V DC | Thread: | 1/2npt, Custom |
| Accuracy: | 0.25% | Electrical Interface: | Aviation Plug, Big Din Direct Wire |
| Application Temperature: | -30℃ ~ 80℃ | Housing Protection: | IP65 |
| Quality Warranty: | 12 Months |
RS485 Common Pressure Transmitters, Pressure Sensors 4-20mA Display
Description
YD31 Series pressure transmitter is a series pressure transmitter of our standard transmitter.
Imported chip assembly, reflecting a world-class pressure transmitter technology.Compact, rugged. Light weight, easy to install. Easy to use. Maintenance-free. Zero outside the range can be continuously adjusted, a wide range of migration. Suitable for a variety of occasions in harsh environments and corrosive media.

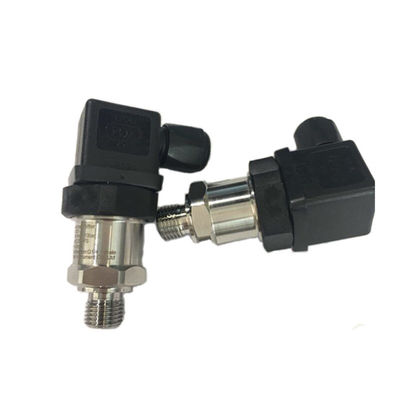

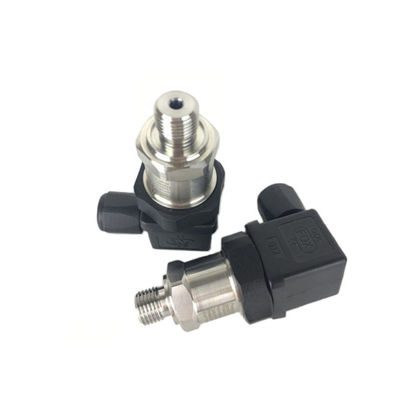

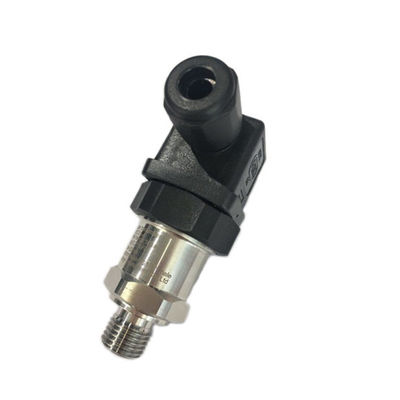

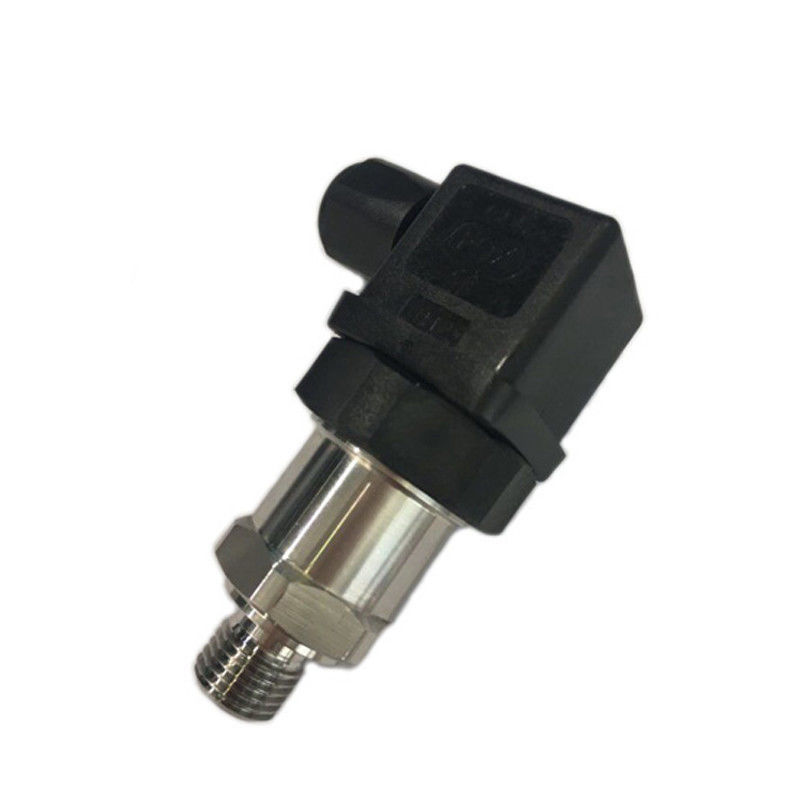

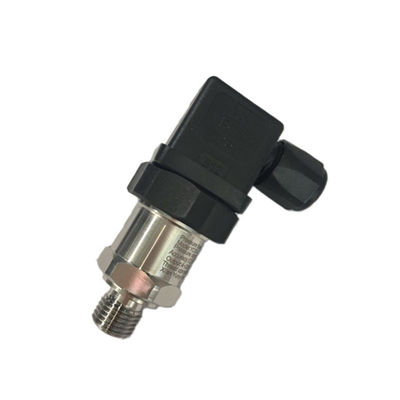

Detailed Images
Specification
| RS485 Common Pressure Transmitters, Pressure Sensors 4-20mA Display | |
| Media | Oil, water, gas and compatible with 316L stainless steel |
| Pressure | Ceramic type:0.1-40Mpa |
| Diffused silicon type: -0.1MPa ~ 0 ~ 100MPa | |
| Overload | 2 times (10MPa or less) |
| 1.5 times (10MPa or more) | |
| Accuracy | ± 0.1% FS ,± 0.2% FS , ± 0.5% FS,± 1% FS |
| Nonlinear | <± 0.2% FS |
| Hysteresis and repeatability | ≤ ± 0.1% FS |
| Long-term stability | ≤ ± 0.1% FS / year |
| Zero drift | ≤ ± 0.02% FS / ℃ |
| Response time | ≤500ms (standard) |
| Output | |
| Current 2-wire | 4 ~ 20mA |
| Voltage 3-wire | 0 ~ 5V; 0 ~ 10V; 1 ~ 5V; 1 ~ 10V |
| Option | RS 485 ,hart |
| Supply voltage | DC 24V (12 ~ 32V DC, less may contact) |
| Electrical connection | Standard for Hersman, optional direct outlet or M20 PIN Aviation |
Related products
FAQ
Q:How long will you reply me?
A:We will contact you as soon as possible but within 12 hours
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.
Q:How do you control your quality ?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).
Q: What certificates do you have ?
A:ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.
Q:Could I visit your factory?
A:Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q:can you provide OEM & Customized service?
A:Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
Company Information
Shelok considers itself not only a manufacture but more conprehensively a provider of industry specific customer-oriented solutions.Our profound understanding of product application and strong technical backgrounds ensure you the best product solution and achieve a greater success.
Xi'an Shelok Instrument Technology co.,ltd is a professional R&D center and manufacture of measuring instruments.And here's a variety of products for you choice: pressure transmitters,temperature transmitters,flow transmitters,weighing instruments and so on.Our products have been made by advanced technology, with high quality, fast delivery period, which have attracted so many domestic and foreign customers.
