| Place of Origin: | Made In China |
| Brand Name: | NanCon |
| Certification: | CE |
| Model Number: | 3051 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD225.00~$425/pc |
| Packaging Details: | Accuracy 0.1 water proof PH meter PH tester Standard export carton packing. |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Product Name: | 2019 Negative Smart Different Pressure Transmitters | Output: | 0-5V |
|---|---|---|---|
| Power Supply: | 24VDC | Accuracy: | 0.5%FS |
| Ambient Temperature: | -40℃~+85℃ | Temperature Effect: | ±0.04%/10K Or ±0.08%/10K |
| Type: | Pressure Senor | Warranty: | 12 Months |

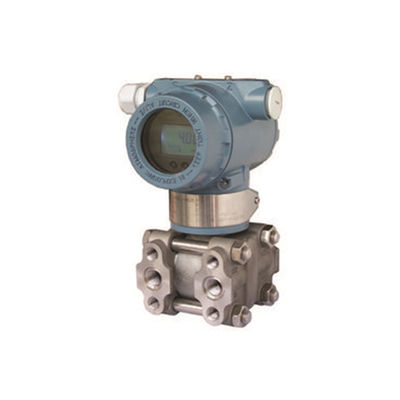

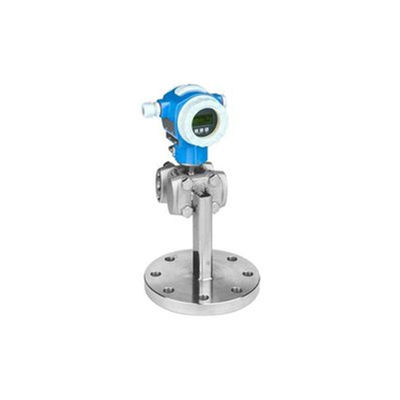

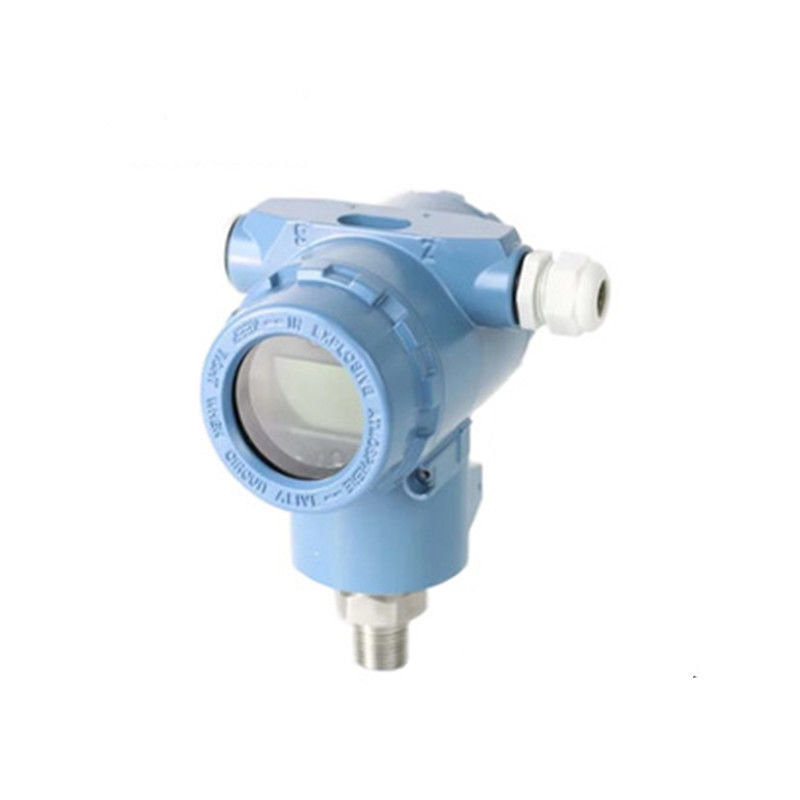

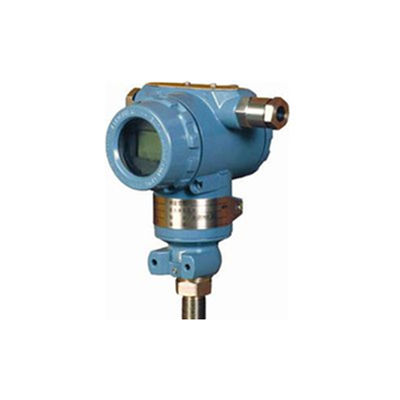

2020 Negative smart different pressure transmitters
3051 different Pressure Transmitter is the result of a combination of self-developed anti-jamming, high stability digital circuits and the introduction of foreign Single crystal resonant silicon
sensor technology. Its performance much better than our domestic metal capacitive
sensor technology transmitter, and main show in the field zero stability and long-term operation stability, and rapid response.
2020 Negative smart different pressure transmitters
Single crystal resonant silicon sensor technology
Super performance, use to measure pressure, differential pressure and temperature..
Accuracy: ±0.075%~±0.1%F.S/±0.2%F.S
Stability: ≤0.2%
Standard 4~20mA,RS-485 communication interface
Support upgrade of basic scene control technique
Little temperature effect
Little static effect
Overload can reach 2 times
Application of 2020 Negative smart different pressure transmitters:
Compatible with 316LSS,noncorrosive liquids.
Shipping and aviation industry.
Hydraulic pressure and pneumatic control system
Apply in Petroleum industry, chemical industry, electric power, metallurgy, hydrology etc process control.
| Range code | Range | Measuring range | |
| Min. | Max. | ||
| 4 | 0.374KPa | 37.4KPa | -37.4~37.4KPa |
| 5 | 1.868KPa | 186.8KPa | -186.8~186.8KPa |
| 6 | 6.9KPa | 690KPa | -690~690KPa |
| 7 | 20.68KPa | 2068KPa | -2068~2068KPa |
| Output | Analog output: two –wire 4-20mADC |
| Digital output: two –wire 4-20mADC and superimposing variable digital signal accord with HART | |
| Power supply | supply voltage 24VDC |
| Limit load | Max load resistor Rmax in loop decided by the supply voltage, see the below drawing. HART PROTOCOL require the load resistor not less than 250Ω,not more than 600Ω |
| Communication distance | Max. 1.5Km, multi-address communication can connect 15 smart transmitters Max. |
| Display | 4 digital display,5 digit LCD display, pointer type. |
| Explosion-proof | ExiaIICT5;explosion suppression type |
| Zero offset | Can positive transfer or negative transfer, but can not overstep the utmost value |
| Temperature | ambient temperature -40-85℃(When choose LCD : -20-70℃) |
| Medium temperature | -40~104℃ |
| Static pressure and single side overpressure | 3.45KPa(absolute pressure)~31.2MPa(gauge pressure) |
| Relative humidity | 5~98%RH |
| Run-up time | less than 5 sec. |
| Capability change | Less than 0.16cm3 |
| Damp adjust | 0.20~25 second |
| Malfunction alarming | If occur malfunction, automatism diagnose function will output 3.9 or 21.0mA |
| Configuration protection | To avoid the datas are modified random, can utilize software or protect switch lock the record data |
Established with 10 million capital in 2015, Xi'an Shelok Instrument Co., Ltd. is a professional designer and manufacturer that engaged in the fields of pressure measurement instruments. We specializing in developing high precision pressure transmitter, pressure gauges, pressure calibration pump and dead weight tester,level transmitter, flow meter etc., widely used in chemical, petroleum, paper, electricity, city gas, environmental protection, water treatment and other fields.
Specialties
pressure transmitter/sensor/transducer, pressure gauge, pressure calibration hand pump, and water level sensor
1, more than 10 years industry background
The original organization is Xi'an Precise Instruments Factory, established in 2007, and mainly produce pressure gauge, stainless steel pressure gauge, anti-vibration pressure gauge, pressure transmitter, pressure switch, pressure calibrator, and so on.
In 2013, Yunyi Group is established for development command, and process measurement instruments about water, flow, temperature are added in our product catalogue.
In 2015, Xi'an Shelok instruments Co., Ltd is estalished with 10 million capita for meeting the international business expanding demand.
2, a company of design and manufacture capability
Mainly focus on design and customized solution offer, and combining our professional industry background and our capability of supply chain management in local market, more comprehensive products and services could be offered.
3, R&D team + cooperation with colleges and universities
Keeping our capability of technology innovation improved makes us available to meet various technical challenges
4, three inspection steps + good warranty service
Strict inspection operation process keeps our products qualified, and clearly warranty policies help customer's solve after-sale problems and lower their cost.
5, sample first policy.
By offering most suitable proposal to help customers maximize their profit.
6, employees with + 4 years international experience are more than 100%
Professional and effective international business operation offers better service expericence
Q:How long will you reply me?
A:We will contact you as soon as possible but within 12 hours
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.
Q:How do you control your quality ?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).
Q: What certificates do you have ?
A:ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.
Q:Could I visit your factory?
A:Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q:can you provide OEM & Customized service?
A:Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
