| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | 2088 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD95.00~$125/pc |
| Packaging Details: | Accuracy 0.1 water proof PH meter PH tester Standard export carton packing. |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Measurement Type: | Gauge, Absolute, Differential | Measurement Range: | -100kpa-0-100mpa |
|---|---|---|---|
| Output Signal: | 4-20mA | Power Supply: | 12-36vdc |
| Thread Connection Type: | 1/2,1/4 Or Others | Medium Temperature: | -40~104℃ |
| Relative Humidity: | 5~98%RH | Accuracy: | ±0.1%(The Error Is Less Than 0.1% Of Full Scale) |
| Filled Liquid: | Silicone Oil | Flange Pressure: | 1/4 - 18 NPT Thread |

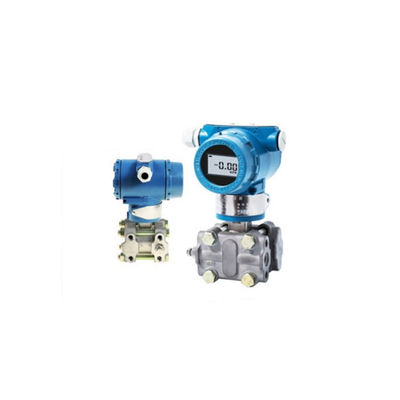

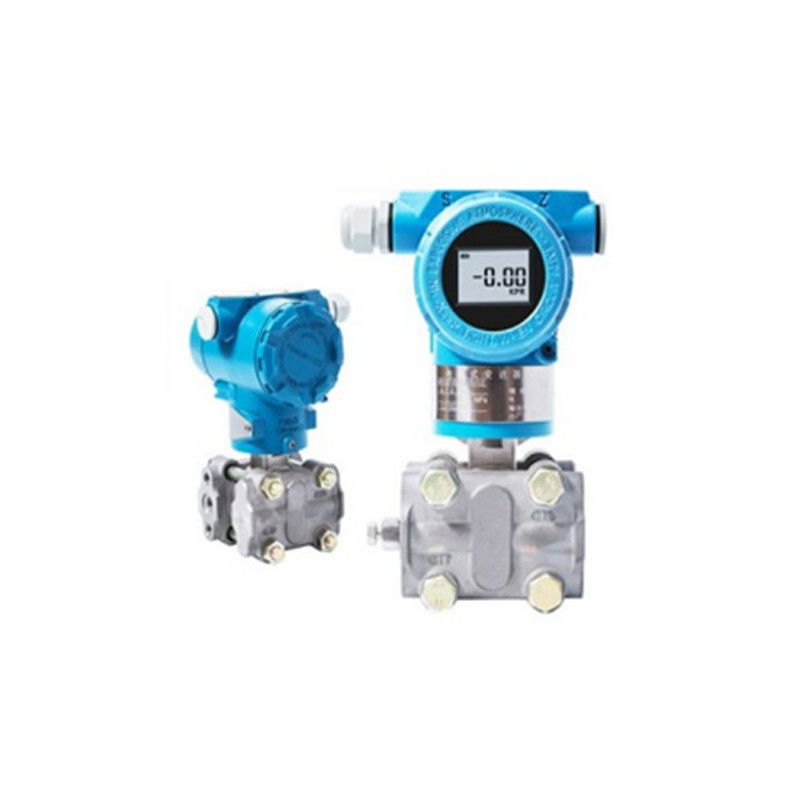

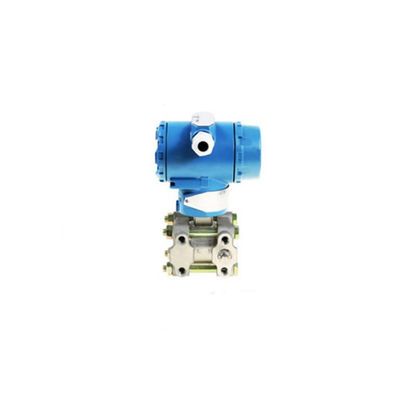

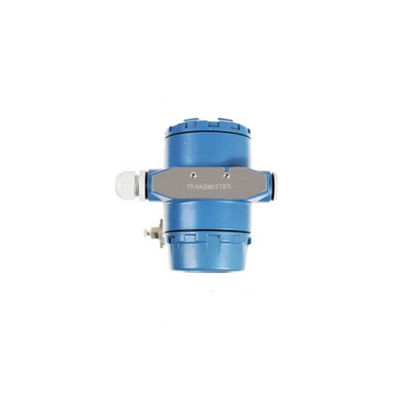

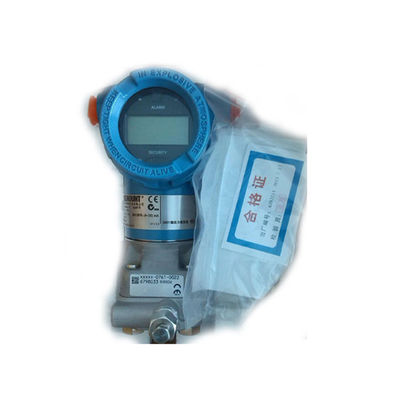

2088 4-20mA Smart Differential Pressure Transmitter
Description
2088 pressure transmitter is made with oil-filled isolation membrane-specific integrated pressure sensors and instrumentation amplifier circuit, it has a high accuracy, good stability, long life, high reliability, easy installation features. Applicable to various liquid, gas pressure measurement.
Detailed Images
Specification
| 2088 4-20mA Smart Differential Pressure Transmitter | |
| Output Analog | Two-wire 4~20mA DC |
| Digital quantity | Two-wire 4~20mADC and overlay digital signal in line with the HART protocol |
| Power supply | 24V DC, 12~36V DC, 18.5~220V DC, AC 50HZ, 45V |
| Load limit | Loop Rmax maximum load resistance depends on the power supply voltage. HART communication require the load resistance no less than 250Ω, and no more than 600Ω |
| Communication distance | The maximum communication distance is 1.5Km, Multistation communication can take up max15 units smart pressure transmitter |
| Output display | Four digital display, five LCD display, pointer type |
| Explosion-proof form | Basic type:ExiaII CT5; Explosion-proof type |
| Zero shift range | Zero point can be arbitrary positive transfer and negative transfer, but the upper and lower limit of measurement range and pressure range should not be set exceeded |
| Temperature Range | |
| Environmental temperature | -40~85℃ (-20~70℃ when select LCD indicator) |
| Medium temperature | -40~104℃ |
| Static and Unidirectional pressure range | 3.45Kpa(absolute pressure) 31.2MPa(gauge pressure) |
| Relative humidity | 5~98%RH |
| Start time | Start in 5 second |
| Capacity changes | less than 0.16cm3 |
| Damping adjustment | 0.20~25 |
| Fault alarm | If there is a breakdown of sensor or circuit, automatic diagnosis function will automatically output 3.9 or 21.0 mA |
| Configuration protection | In order to avoid the transmitter is randomly change the configuration data, can lock the stored data by software or protection switch |
| Reference conditions | Zero as the lower limit and no migration, the temperature is 25 ℃, the atmospheric pressure, 24 VDC power supply, silicone oil, isolation diaphragm 316 stainless steel, data setting range is the same as the upper and lower limit range |
| Note | the instructions include linear precision, the influence of hysteresis and repeatability |
| Accuracy | ±0.1%(The error is less than 0.1% of full scale) |
| Stability | ±0.1% URL/year |
| Temperature effect | ±0.05% (URL + 0.05% range) / 20 ℃ |
| Static Pressure effects | Zero Error: the URL / 0.1 to 6.9 MPa |
| Vibration impact | Can stand a vibration of 200Hz frequency in any axia, cause a error is ±0.05%URL |
| Power supply | The adjustable range is less than 0.005% / V |
| Load impact | No load effect |
| Installation position effect | About 250Pa zero migration, can be eliminate by calibration, no scale effect |
| Radio frequency interference | in the 30-1000 MHZ frequency and maximum field strength under the condition of 10 v/m, caused by drift is ±0.1% of adjustable range |
| Isolation diaphragm | 316L stainless steel, Hastelloy, Monel or tantalum |
| Vent and drain valve | 316 stainless steel, hartz alloy, monel or tantalum |
| Flange and transition joints | Cadmium plating, carbon steel galvanized steel, 316 stainless steel, Hastelloy alloy |
| "O" Ring | Fluorine rubber |
| Filled liquid | silicone oil |
| Screw bolt | galvanized carbon steel |
| Electrical shell | low copper aluminum alloy |
| "O" Ring | Nitrile butadiene rubber |
| Coating | polyester epoxy resin |
| Flange pressure | 1/4 - 18 NPT thread |
| Transition joint lead pressure | 1/2-14 NPT thread |
| Conduit connections | M20X1.5, 1/2-14, NPT thread |
| Weight | 2 kg (not including optional) |
Features
Wide range, cast aluminium & explosion-proof housing,
various pressure port
Various output signal, scene adjustable
Multiple protect, strong anti-interference capability.
Marking: ExiaIICT6.
Applications
Compatible with 316LSS,noncorrosive gases & liquids.
Special use in harsh environment conditions.
Selection Guide
Dimensions
Related products
FAQ
Q:How long will you reply me?
A:We will contact you as soon as possible but within 12 hours
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.
Q:How do you control your quality ?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).
Q: What certificates do you have ?
A:ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.
Q:Could I visit your factory?
A:Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q:can you provide OEM & Customized service?
A:Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
