| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | 3051 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD195.00~$325/pc |
| Packaging Details: | Accuracy 0.1 water proof PH meter PH tester Standard export carton packing. |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Item: | Hot Sale OEM Standard 3051 Pressure Transmitters | Measure Media: | Liquid, Gas, Air |
|---|---|---|---|
| Accuracy: | ±0.1% URL ±0.2% URL | Operating Tempe. Range: | -20~+100°C |
| Storage Temp. Range: | -40~+100°C | Power Supply: | 24VDC(12VDC~45VDC) |
| Output Signal: | 4~20mA 4~20mA With HART | Protection: | IP65 |
| Material: | Aluminum Alloy | Pressure Type: | Gauge, Absolute, Differential |
Hot sale OEM Standard 3051 Pressure Transmitters
Description
This pressure transmitter widely used in pharmaceutical, medical equipment, oil, gas, chemical, urban construction power, metallurgy, textile, aerospace, scientific research, leak detection, automation equipment and other fields.

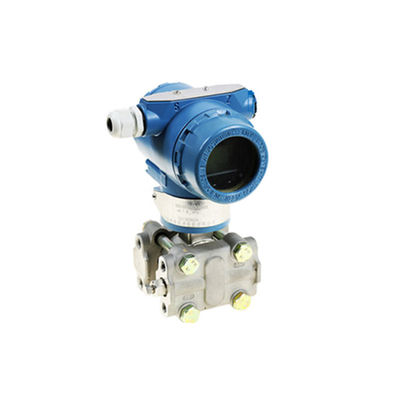

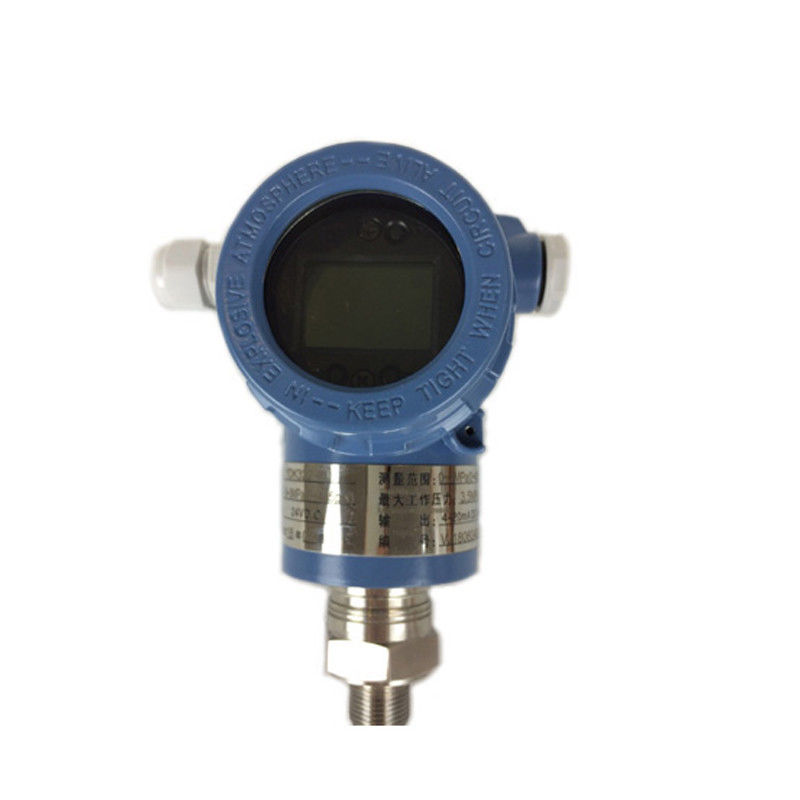

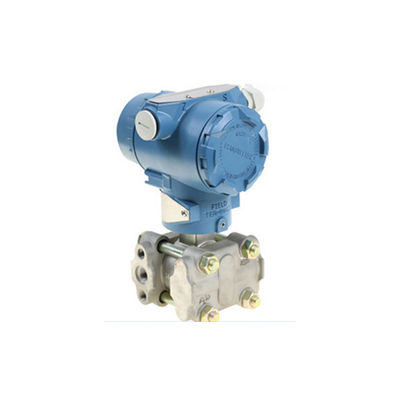

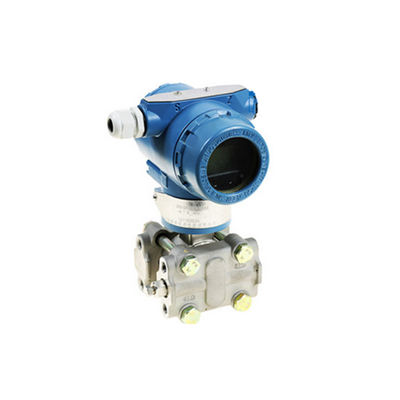

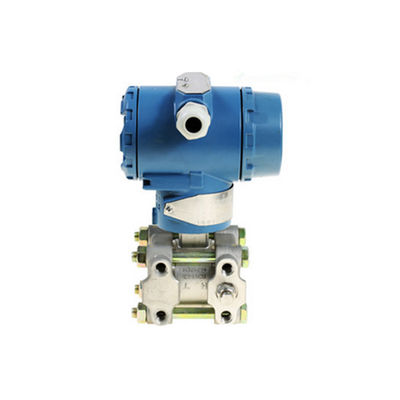

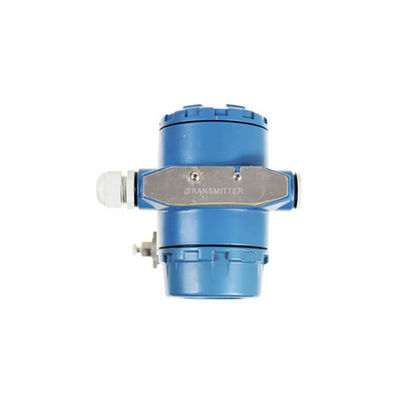

Detailed Images
Specification
| Hot sale OEM Standard 3051 Pressure Transmitters | |
| Measuring medium | liquid, gas |
| Accuracy | ±0.1% URL ±0.2% URL |
| Signal output | 4~20mA 4~20mA with HART |
| Supply voltage | 24V DC(12V DC~45V DC) |
| Explosion-proof type | 12~28VDC |
| Stability | ±0.1 URL in six months |
| Medium temperature | -40°C ~ +100°C |
| Storage temperature | -40~+100°C(without LCD display) -40~+70°C(with LCD display) |
| Operating temperature | -40~+85°C(without LCD display) -30~+60°C(with LCD display) |
| Ambient temperature | -0~-100% relative humidity |
| Temperature impact | ±(0.2%URL+0.18%inspection range)/56°C |
| Power supply effect | Less than 0.0059% / V of the output range |
| Load effect | No load is affected unless the supply voltage changes |
| Vibration effect | The vibration effect is ± 0.05% URL / g at 200 Hz in any axial direction. |
| EMI/RFI effect | Between 20 to 1000MHz;field strength up to 30V / M; the output drift less than ± 0.1% range |
| Static pressure and over-pressure limit | Transmitter on any side plus 0 to 13.79MPa pressure will not cause damage. In the 0kPa to the transmitter range of the upper limit of the work to meet the performance requirements. |
| Zero point positive and negative drift | When zero is moving, the minimum range must be larger than or equal to - URL, the maximum range must be less than or equal to + URL. The calibration range must be greater than or equal to the minimum range. |
| Zero and range | Zero and range can be adjusted with the instrument range and zero button, or with the HART handhold remote adjustment. |
| Installation site effect | Maximum Zero drift is ± 0.25kPa; all zero drift can be corrected. |
| Damping time constant | The time constant is adjustable, incremented by 0.1 seconds, from minimum to 16.0 seconds. |
| Explosion-proof grade | Intrinsically safe: Exia II CT6 Flameproof: Exd II BT5 |
Drawing
Related products
FAQ
Q:How long will you reply me?
A:We will contact you as soon as possible but within 12 hours
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.
Q:How do you control your quality ?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).
Q: What certificates do you have ?
A:ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.
Q:Could I visit your factory?
A:Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q:can you provide OEM & Customized service?
A:Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
