| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | YD31 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD195.00~$325/pc |
| Packaging Details: | Accuracy 0.1 water proof PH meter PH tester Standard export carton packing. |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Product Name: | 4-20mA Water Pressure Transmitter Sensor | Materials: | Gas Or Liquid Compatible With Ceramic |
|---|---|---|---|
| O-ring: | NBR (FKM Or EPDM) | Signal Output: | 0.5-4.5V / 1-5V / 0-5V , 3-wire; 0-10V, 3-wire; 4-20mA, 2-wire; |
| Power Supply: | 5v, 12...32V , 9...32V | Response Time (10 ... 90 %): | ≤2ms |
| Isolation Voltage: | DC 500V | 1-year Stability: | ≤ 0.05 % F.S |
4-20mA Water pressure transmitter sensor
Description
Shelok YD310 pressure transmitters are precision engineered to fit most industrial pressure measurement applications. The compact, rugged design makes these instruments suitable for applications including hydraulics and pneumatics, vacuum, test equipment, liquid level measurement, press control, compressor control, pump protection and numerous other processing and control operations. A wide range of electrical connection and process connection options are avail-able to meet almost any requirement.
YD310 transmitters use MEMS micro machining components, fully sealed structure has the good protection grade, ensures that it can adapt to various working conditions.
The compact case is also made of stainless steel and is available with environmental protection ratings up to IP 65.
Each instrument undergoes extensive quality control testing and calibration to achieve an accuracy.
Each is individually temperature compensated to assure accuracy and long-term stability even when exposed to severe ambient temperature variations. It is manufactured on a fully automated production line to provide large quantities of transmitters with consistent quality and highly competitive pricing.Custom modifications are available for large quantity requirements.

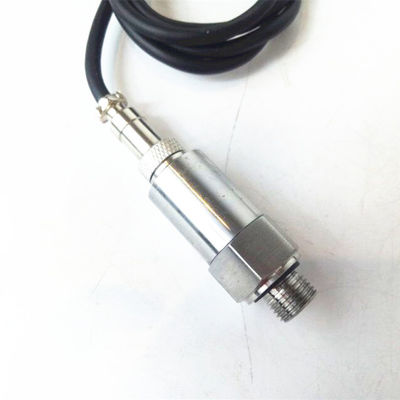

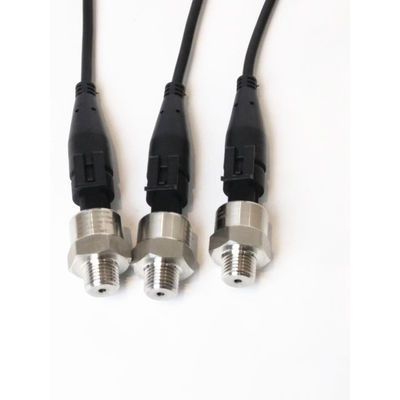

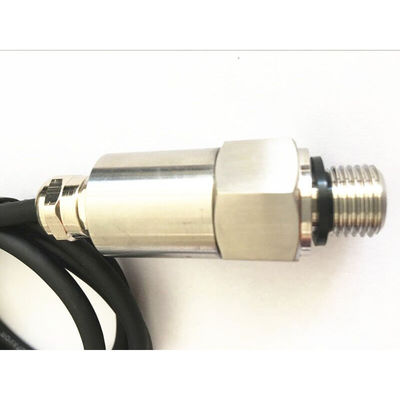

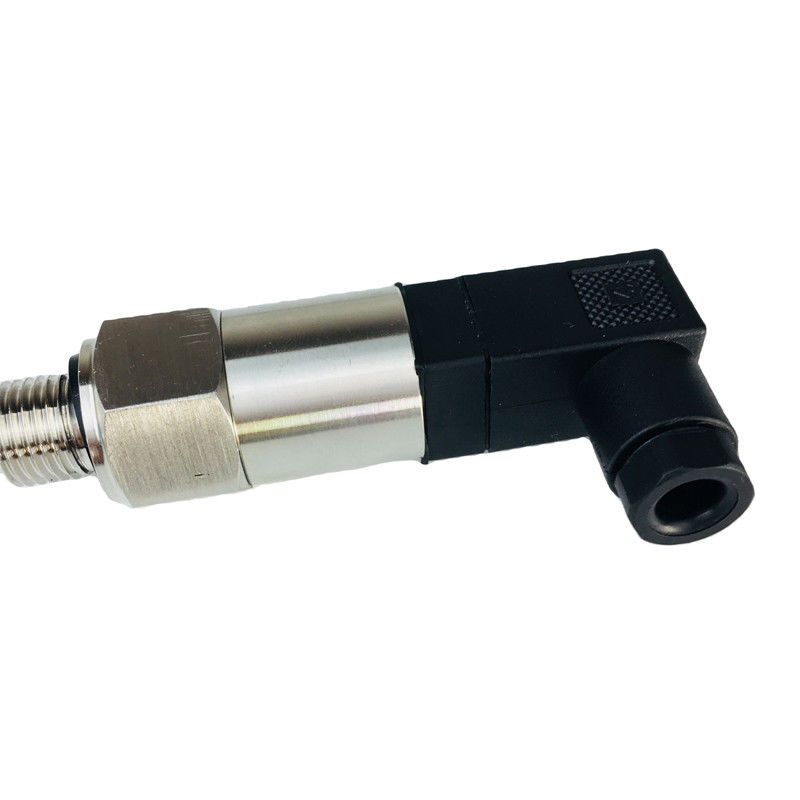

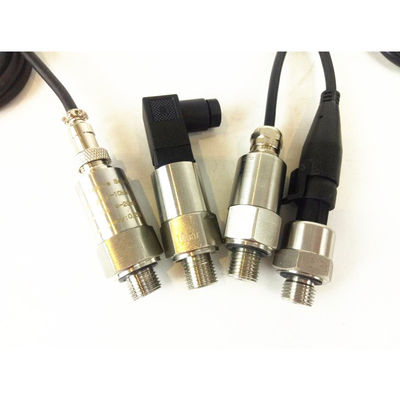

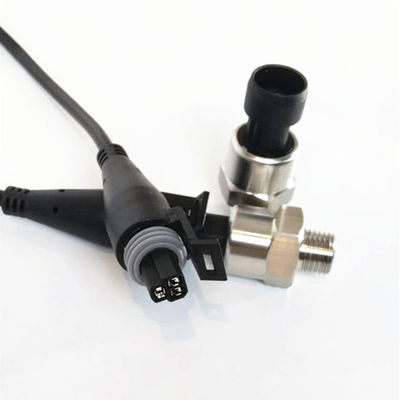

Detailed Images
Specification
| Pressure range | 0~ -1bar | 1bar | 2bar | 5bar | 10bar | 16bar | 20bar | 25bar | 30bar |
| Maximum pressure* | 2bar | 2bar | 4bar | 10bar | 20bar | 32bar | 40bar | 50bar | 60bar |
| Burst pressure** | 4bar | 4bar | 8bar | 20bar | 40bar | 64bar | 80bar | 100bar | 120bar |
| Pressure range | 40bar | 50bar | 60bar | ||||||
| Maximum pressure* | 80bar | 100bar | 120bar | ||||||
| Burst pressure** | 160bar | 200bar | 240bar | ||||||
| *Pressure applied up to the maximum rating will cause no permanent change in specifications but may lead to zero and span shifts | |||||||||
| **Exceeding the burst pressure may result in destruction of the transmitter and possible loss of media | |||||||||
| Materials | Gas or liquid compatible with ceramic |
| O-ring | NBR (FKM or EPDM) |
| Signal output | 0.5-4.5V / 1-5V / 0-5V , 3-wire; 0-10V, 3-wire; 4-20mA, 2-wire; |
| Power supply |
5V with signal output 0.5-4.5V / 1-5V / 0-5V, 12...32V with signal output 0...10V, 9...32V with signal output 4...20mA |
| Response time (10 ... 90 %) | ≤2ms |
| Isolation voltage | DC 500V |
| Accuracy |
≤ 1 % F.S @25℃ (Includes linearity, hysteresis and repeatability.) ≤3% F.S@ {-40~125℃} (limit point calibration) |
| 1-year stability | ≤ 0.05 % F.S |
| Permissible temperature of | |
| Medium | -20...+125℃ |
| Ambient | -40...+100℃ |
| Storage | -40...+100℃ |
| Compensated temperature range | -20...125℃ |
| Mean TC of zero |
typical:0.03%F.S/℃; maximal:0.05%F.S/℃ |
| Mean TC of range |
typical:0.03%F.S/℃; maximal:0.1%F.S/℃ |
| CE - conformity | |
| Test Standard |
EN 55022:2010/AC:2011 EN 61000-3-2:2014 EN 61000-3-3:2013 EN 55024:2010 |
| EMC directive | 2014/30/EU |
| Shock resistance | 1000g according to IEC 60068-2-27 (mechanical shock) |
| Vibration resistance | 20g according to IEC 60068-2-6 (vibration under resonance) |
| Wiring protection | Protected against reverse polarity, overvoltage and short circuit |
| Weight | 70g |
| Connection | G1/4 (NPT1/4, G1/4 and others available) |
Dimension
Application
Automobile,compressor and refrigeration Industry
Engineering machinery
pressure control and monitor
Energy and water treatment system
Armarium, agricultural machinery
Hydraulic and pneumatic control system
Iron and steel industry, light industry
Pump, fitness equipment, household appliances
Hydraulics and pneumatics
Liquid level measurement
Test equipment
Selection 4-20mA Water pressure transmitter sensor
| Model | YD31 | |||||||||
| Range | K:0~X kPa P: PSI, K: kPa, B: bar, M:MPa, m: mH2O | |||||||||
| Accuracy | 1: 1%FS; 2: 0.5%FS; 3: 0.25%FS; | |||||||||
| Output | M:mV, V1:0.5-4.5V; V2:0-5V; V3:0-10V; A:4-20mA; S:RS485 S0: others | |||||||||
| Power | P1:5VDC, P2:12-32VDC P0: other | |||||||||
| Connection |
N1: NPT1/8; N2: NPT1/4; NPT1/2; G1:G1/8 ; G2:G1/4; G3:G1/2;
M0:other |
|||||||||
| Wiring | W1:Cable, W2:Min-Din | |||||||||
| Temperature | T1: -20~125℃; T0:other | |||||||||
| YD31 | 10b | 2 | A | P2 | M1 | W2 | T1 | Factory code | ||
